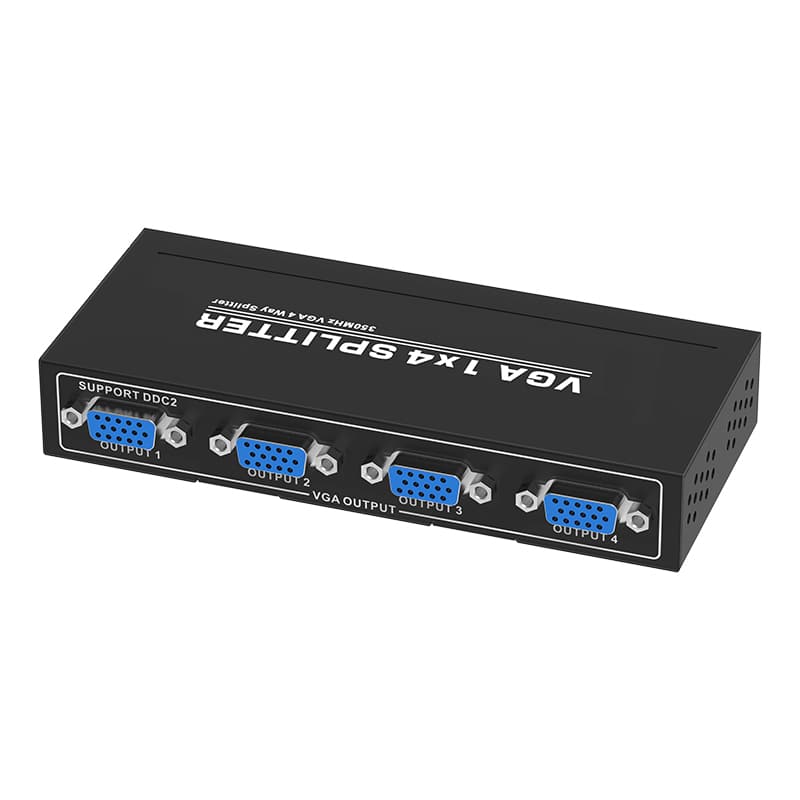

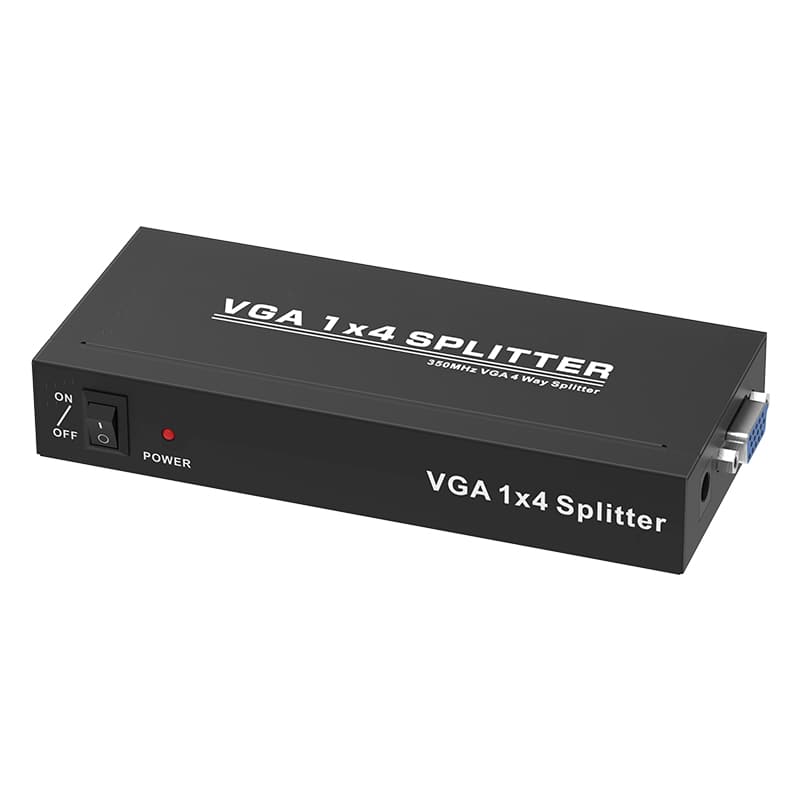

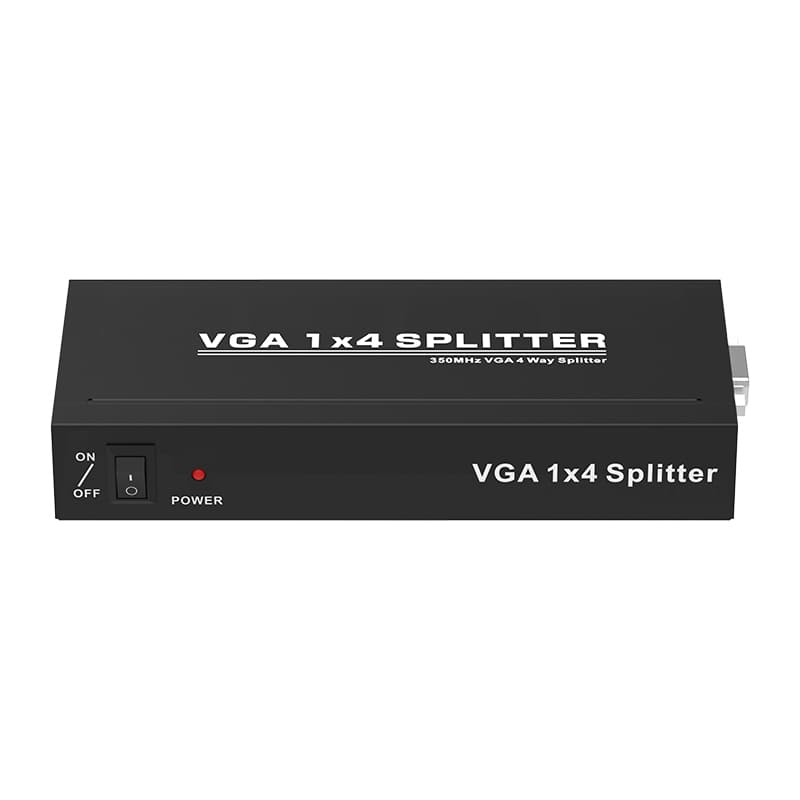

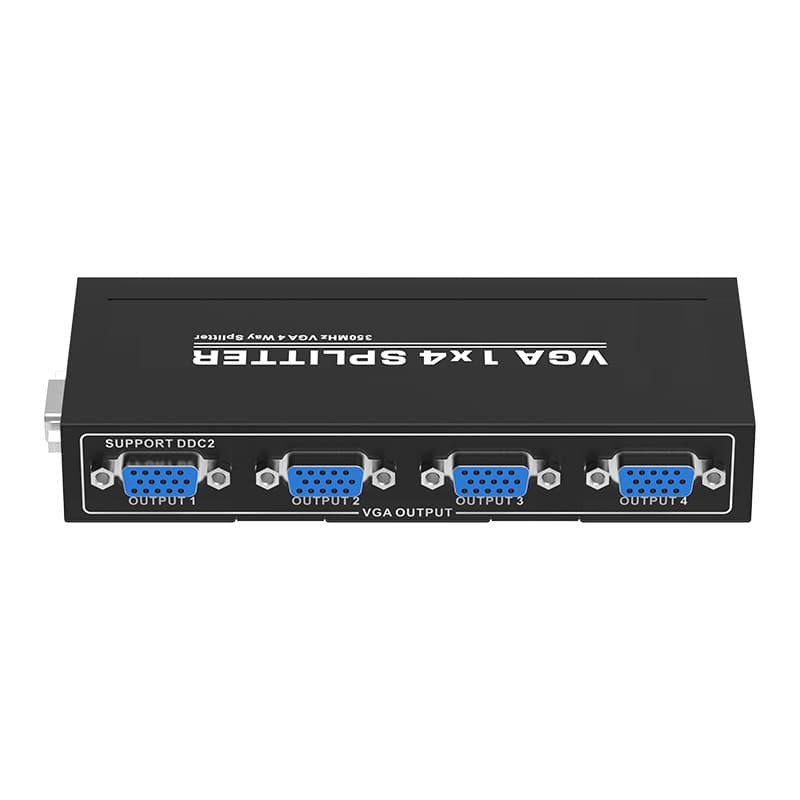

MZVG35104 1080P VGA 350MHz 1x4 Splitter

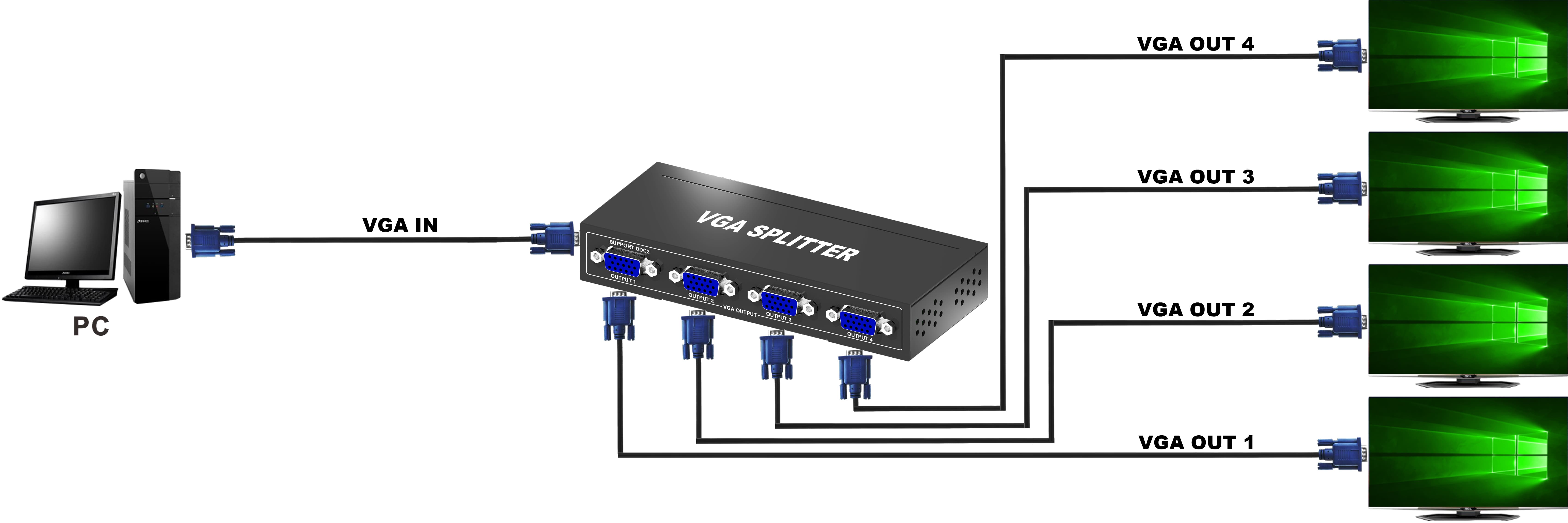

MZVG35104 1080P VGA 1x4 Splitter is a powerful solution for distributing a single VGA source to four displays simultaneously. With a robust 350MHz bandwidth and support for Full HD 1080P, it guarantees clear, consistent, and high-quality video output across all connected screens. This splitter is ideal for large-scale presentations, extensive multi-monitor workstations, training facilities, and retail display environments, ensuring your message reaches multiple viewers effectively.

Description Package Information Inquiry

1.0 Introduction:

VGA Splitter is a product which can distribute VGA signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

VGA signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other VGA enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1. VGA splitter come with attractive appearance,easy to install.

2. Do not need to plus additional hardware or software.

3. Video resolution can reach 1920 x1440 @ 60 Hz and support the DDC, DDC2, DDC2B function.

4. Support DOS,WIN3.X,WIN95/98/98SE/2K/ME/XP/NT,Linux Netware,Unix and other operating systems.

5. Support plug and play ,can be free to change the quantity of display without shut down.

6. Extend the transmission distance and improve transmission signal.

7. Metal casing design and overall shielding without signal interference.

8. Led indicates signal and power mode.

9. Power supply (please refer to technical parameter).

3.0 Packaging accessories:

1. VGA 1×4 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor--------------------------------------------1 Pcs

3. User Manual--------------------------------------------------------1 Pcs

4.0 Technical parameters

VGA Source Input Port-----------------------------------------------------------------------1

Display Device Output Port-----------------------------------------------------------------4

Source Port Connector--------------------------------------------------VGA-HDDB-15P.

Display Device Port Connector----------------------------------------VGA-HDDB-15P

Screen Resolution------------------------------------------------------1920*1440@60Hz

Bandwith--------------------------------------------------------------------------------350MHz

Power Consumption(max.)--------------------------------------------------------2.5Watts

Operation Temperature-------------------------------------------------------------0℃-70℃

Working Voltage-------------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 1A

Net Weight-------------------------------------------------------------------------------0.13Kg

Dimension: L*W*H(mm)------------------------------------------------------ 149.5x64x25


Packaging accessories:

1. VGA 1×4 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor--------------------------------------------1 Pcs

3. User Manual--------------------------------------------------------1 Pcs
