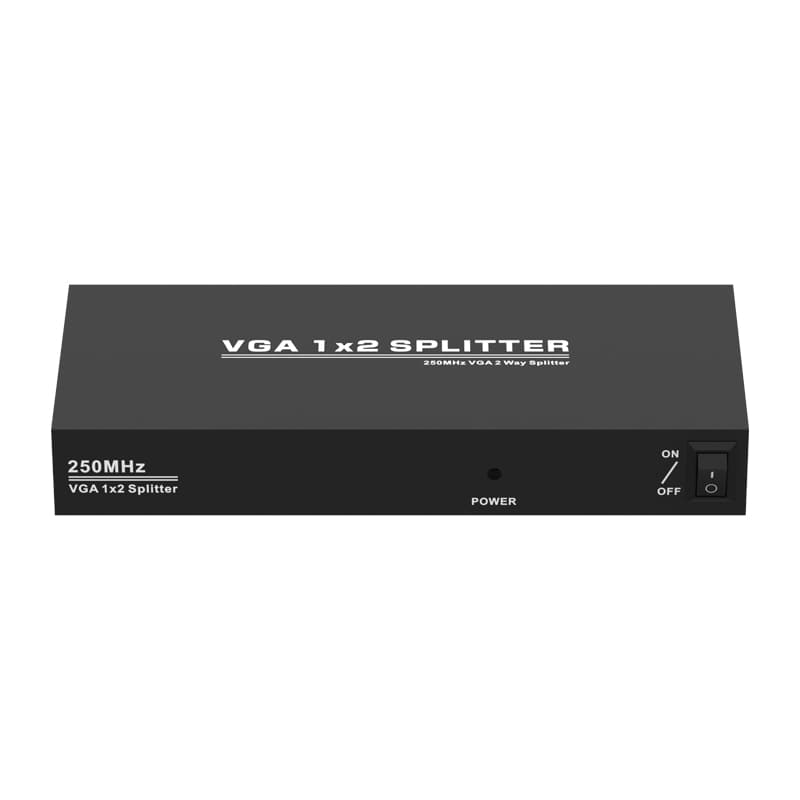

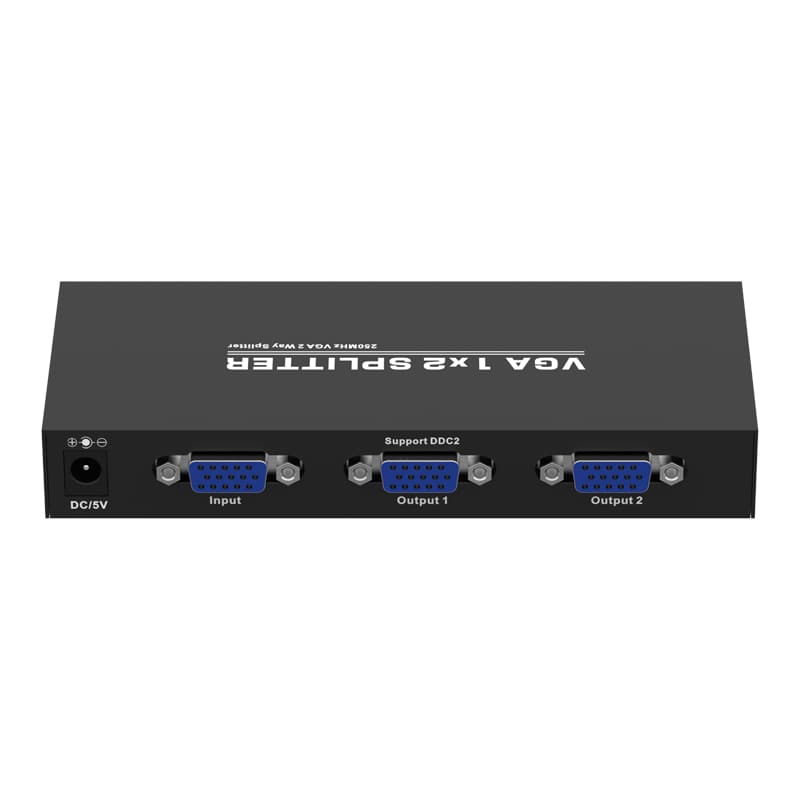

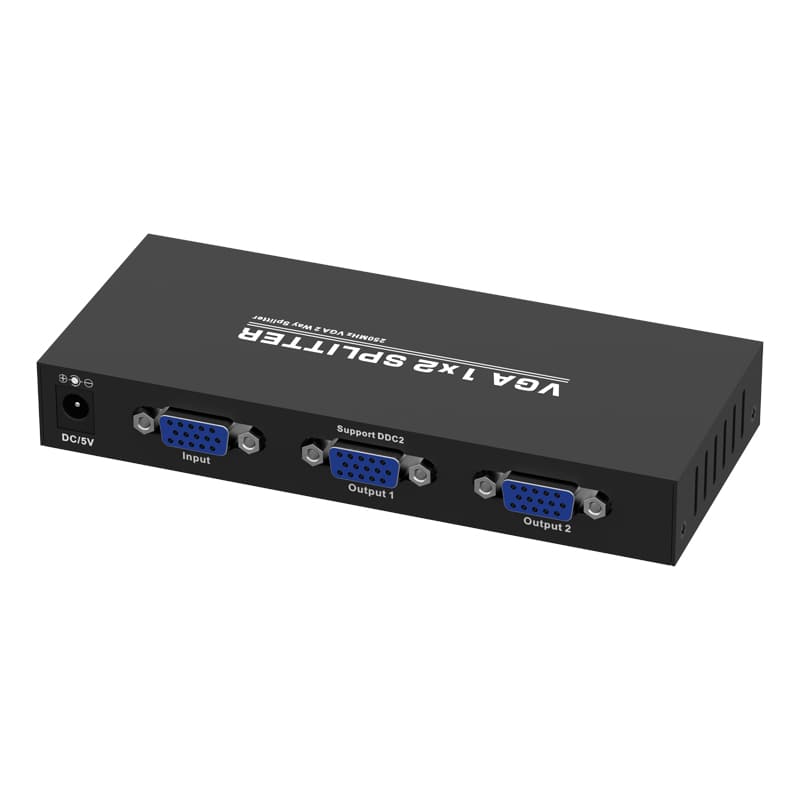

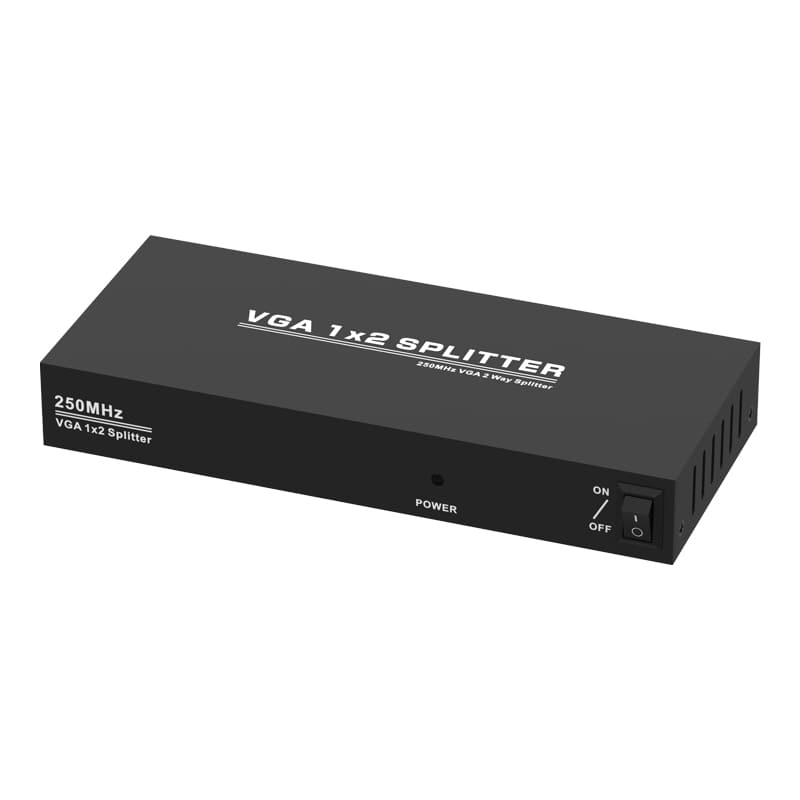

MZVG25102 1080P VGA 250MHz 1x2 Splitter

MZVG25102 1080P VGA 1x2 Splitter is a reliable solution for duplicating a single VGA source to two displays. Supporting resolutions up to 1080P and a 250MHz bandwidth, it ensures crisp, clear, and consistent video output across both screens. This splitter is ideal for a variety of environments, including educational settings, business presentations, control rooms, and expanding desktop workspaces, providing efficient and high-quality analog video distribution.

Description Package Information Inquiry

1.0 Introduction:

VGA Splitter is a product which can distribute VGA signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

VGA signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other VGA enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1. VGA splitter come with attractive appearance,easy to install.

2. Do not need to plus additional hardware or software.

3. Video resolution can reach 1920 x1440 @ 60 Hz and support the DDC, DDC2, DDC2B function.

4. Support DOS,WIN3.X,WIN95/98/98SE/2K/ME/XP/NT,Linux Netware,Unix and other operating systems.

5. Support plug and play ,can be free to change the quantity of display without shut down.

6. Extend the transmission distance and improve transmission signal.

7. Metal casing design and overall shielding without signal interference.

8. Led indicates signal and power mode.

9. Power supply (please refer to technical parameter).

3.0 Packaging accessories:

1. VGA 1×2 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor--------------------------------------------1 Pcs

3. User Manual--------------------------------------------------------1 Pcs

4.0 Technical parameters

VGA Source Input Port-----------------------------------------------------------------------1

Display Device Output Port-----------------------------------------------------------------2

Source Port Connector--------------------------------------------------VGA-HDDB-15P.

Display Device Port Connector----------------------------------------VGA-HDDB-15P

Screen Resolution------------------------------------------------------1920*1440@60Hz

Bandwith--------------------------------------------------------------------------------250MHz

Power Consumption(max.)--------------------------------------------------------2.5Watts

Operation Temperature-------------------------------------------------------------0℃-70℃

Working Voltage-------------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 1A

Net Weight-------------------------------------------------------------------------------0.13Kg

Dimension: L*W*H(mm)------------------------------------------------------ 150x64x21.5

Packaging accessories:

1. VGA 1×2 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor--------------------------------------------1 Pcs

3. User Manual--------------------------------------------------------1 Pcs
