1.0 Introduction:

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

The products are designed to make your A/V device use more convenient, comfortable, productive and cost-efficient.

The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 Features:

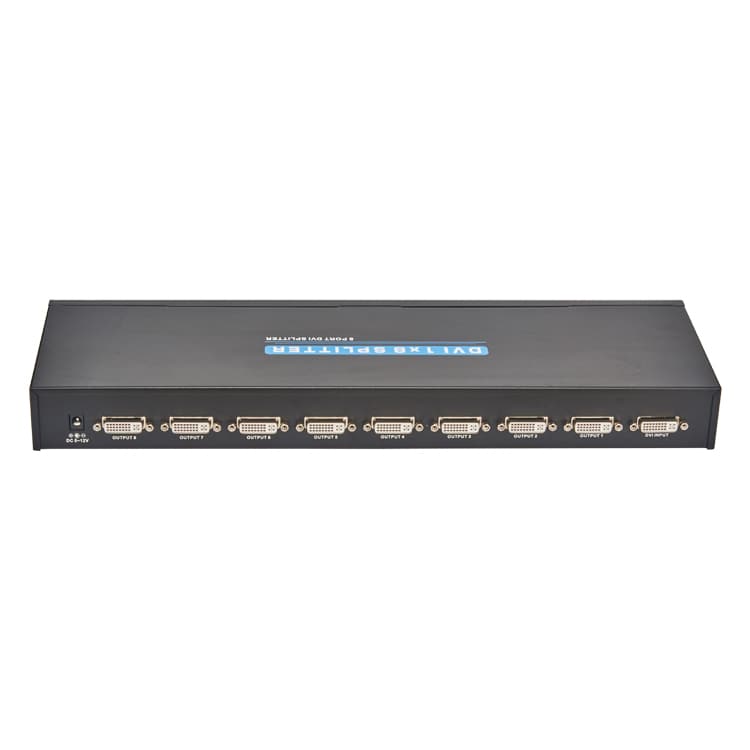

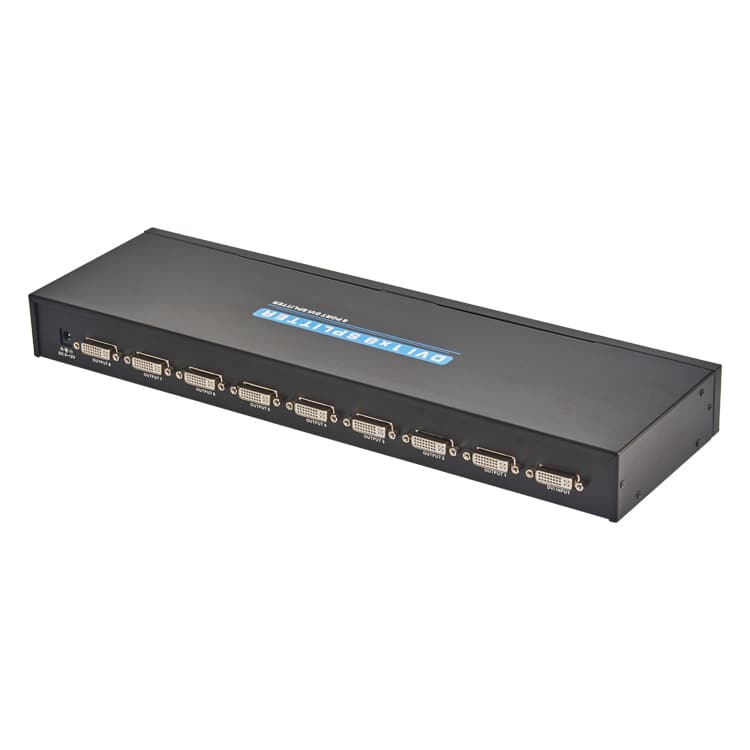

1) 1X DVI-D input and 8 DVI-D outputs.

2) Support dual Link DVI-D signal transmission, resolution up to

   3840X2160@30Hz.

3) Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible with

   the 1920x1200 standard.

4) Support for long distance signal transmission.

5) Installs in minutes, No loss of quality.

6) Metal casing design and overall shielding without signal interference.

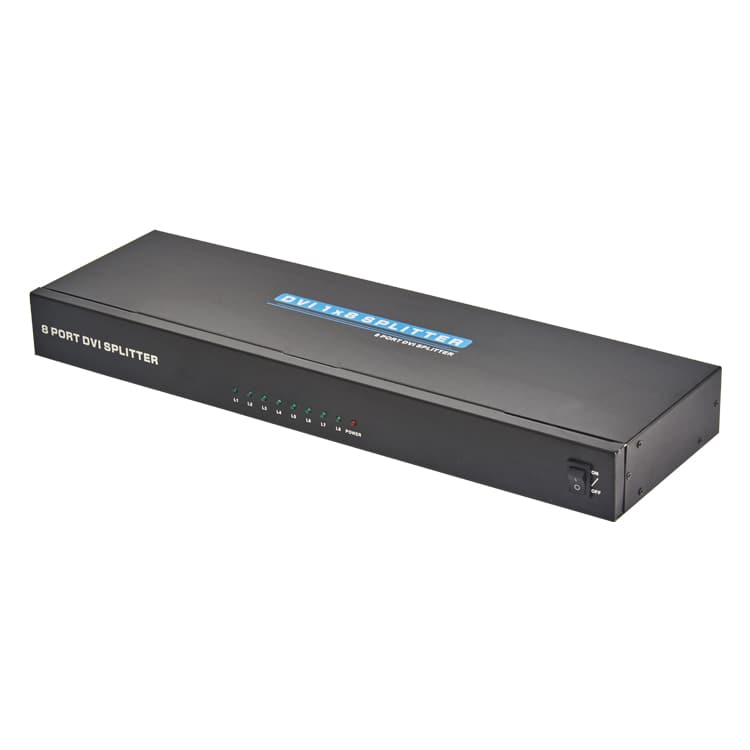

7) LED indicates signal and power mode.

8) Supports wide range voltage DC input (DC5V~12V).

3.0 Packaging accessories:

1. DVI 1×8 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. User Manual-------------------------------------------------------1 Pcs

4.0 Technical parameters

DVI interface type ---------------------------------------------------------------------Dual link DVI-D

Single link input/output resolution--------------------------------------up to 1920x1080@60Hz

Support video color format-------------------------------------------24bit/deep color 30bit,36bit

Max signal bandwidth--------------------------------------------------------------------------340MHz

Max baud rate---------------------------------------------------------------------3.4Gbps Serial Link

Input/Output TMDS signal---------------------------------------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal-------------------------------------------------------------5Volts p-p (TTL)

DVI input cable distance -----------------------------≤10m AWM 20276 DVI standard cable

DVI output cable distance ---------------------------≤10m AWM 20276 DVI standard cable

Power adapter ------------------------------Input:AC 110~240V 50/60Hz Output: DC 5V 2A

Power Consumption(max.)-------------------------------------------------------------------6.5Watts

Operating Temperature range----------------------------------------------------------- -5 to +45℃

Storage Temperature range------------------------------------------------------------ -15 to +55℃

Operating Humidity range------------------------------------10 to 90%RH (No Condensation)

Storage Humidity range-----------------------------------------5 to 95%RH (No Condensation)

Weight-----------------------------------------------------------------------------------------------1.25Kg

Case Dimension :L×W×H(mm):---------------------------------------------------432x130x44.5

Packaging accessories:

1. DVI 1×8 Splitter---------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. User Manual-------------------------------------------------------1 Pcs
