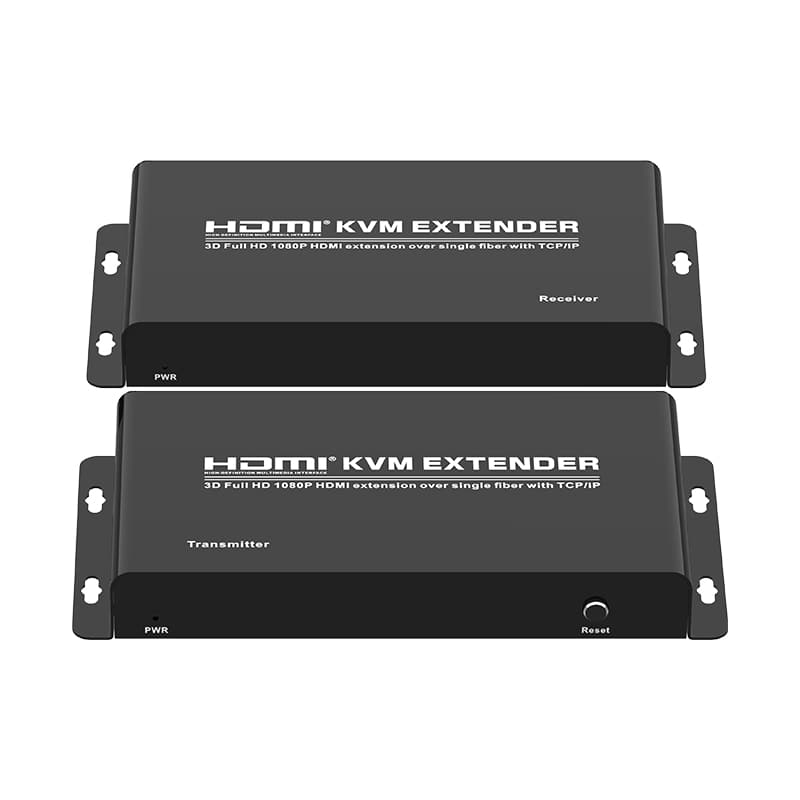

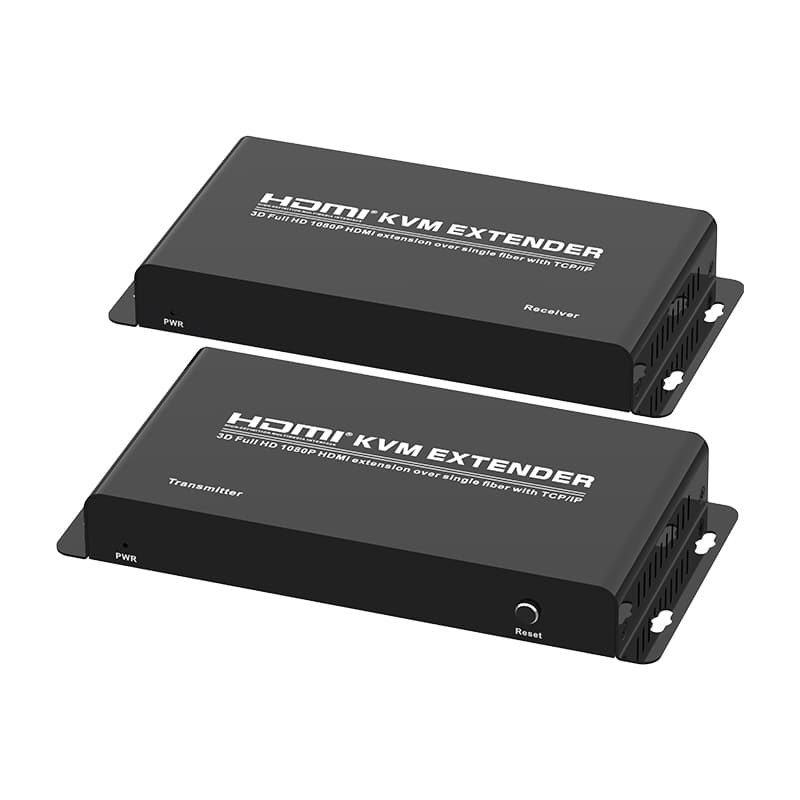

1080P HDMI KVM Extender via single Fiber TCP/IP 20KM MZ5120K

MZ5120K extends 1080P HDMI and USB KVM signals 20KM over single-mode fiber with TCP/IP. Ideal for remote server management, surveillance hubs, or large venues, it ensures zero-latency control and video with easy setup.

Description Package Information Inquiry

1.0 INTRODUCTION

This HDMI KVM Extender is based on TCP/IP standard. It transmits max 20KM from your HDMI or DVI-D source to HD display by single Fiber cable.

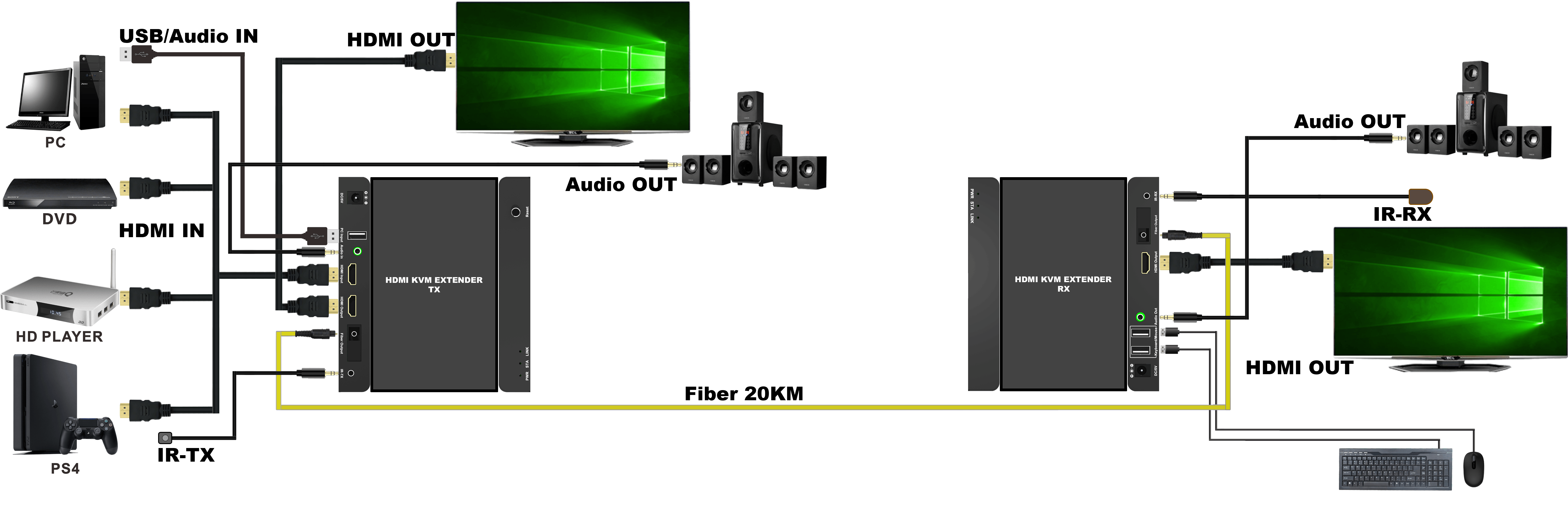

At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.

2.0 FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000 meters instead of

HDMI cables are connected between TX and RX Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

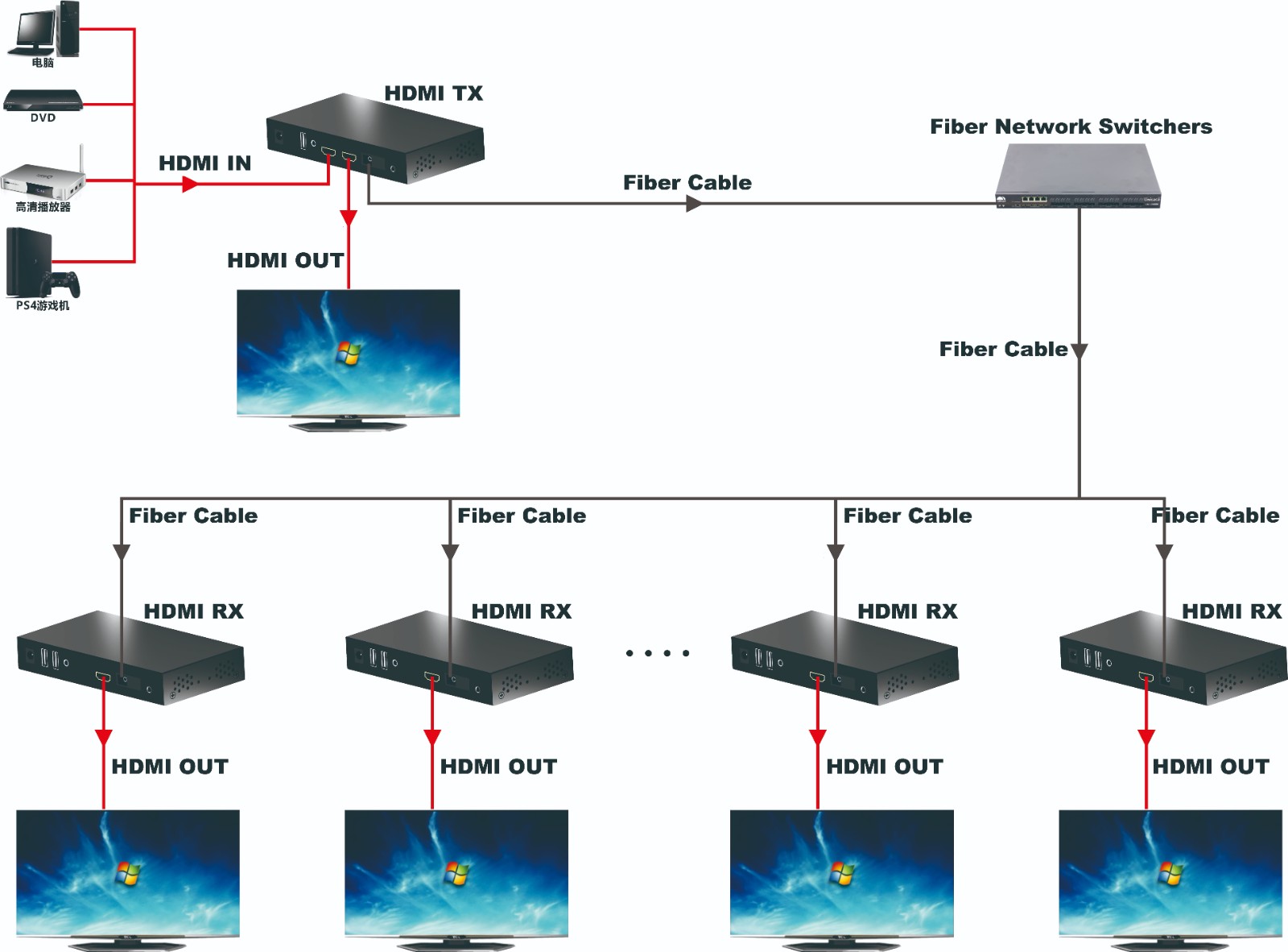

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum

of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by

remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Support long distance controlled by keyboard and mouse.

9.Installs in minutes,No loss of quality.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Transmitter ---------------------------------------------- 1PCS

HDMI Receiver ------------------------------------------------- 1PCS

IR-TX--------------------------------------------------------------- 1PCS

IR-RX--------------------------------------------------------------- 1PCS

Power Supply adapter ----------------------------------------- 2PCS

USB Data Cable--------------------------------------------------1PCS

Operation Manual ----------------------------------------------- 1PCS

4.0 SPECIFICATIONS

HDMI Version-----------------------------------------------------------------HDMI1.3a

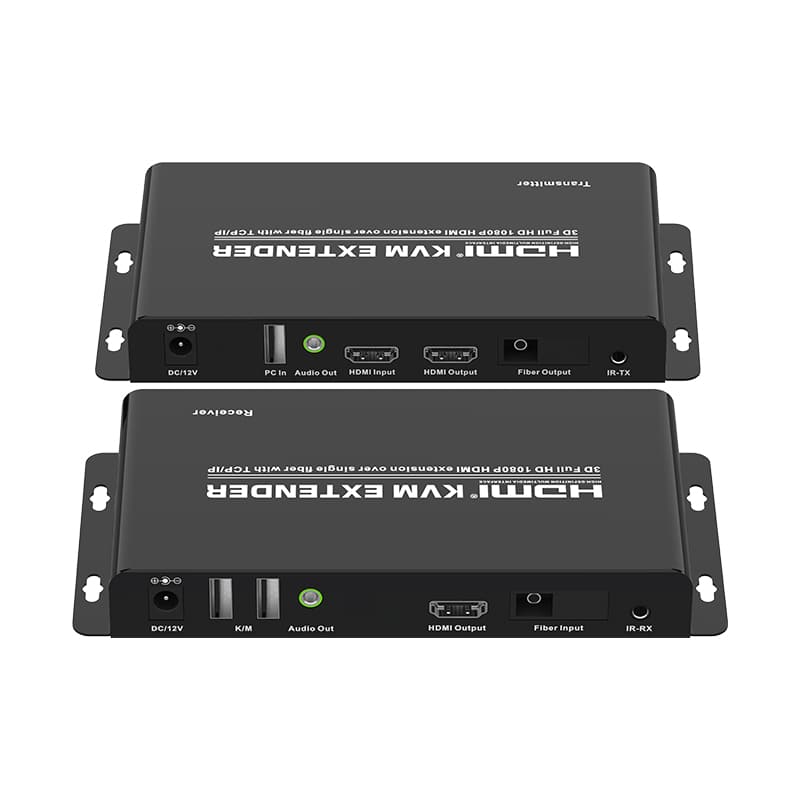

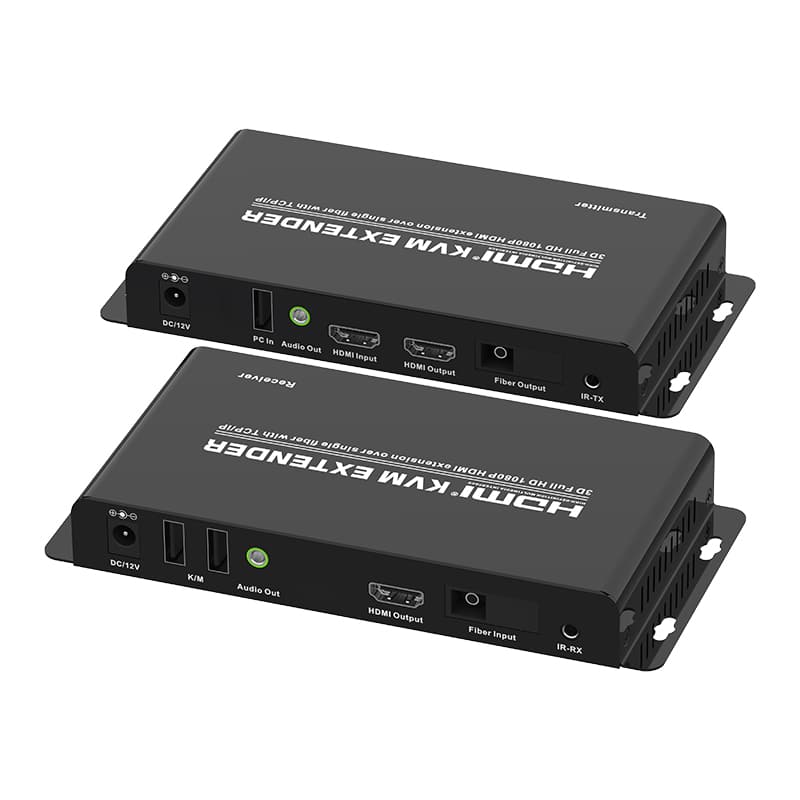

Transmitter Input Ports ---------------------------------HDMIx1(AF),USB(AF)x1

Transmitter Output Ports -------------------HDMIx1(AF),SC Fiberx1,IR TXx1

Receiver Input Ports------------------------------------------SC Fiberx1,IR RXx1

Receiver Output Ports----------------------------------HDMIx1(AF),USB(AF)x2

Frequency Bandwidth--------------------------------------2.25Gbps (single link)

Input/Output Resolutions---------------------------------480p,576p,720p,1080p

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

IR remote control-----------------------------------------------------20~60KHz;NEC

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity---------------------------------20~90% RH (non-condensing)

Dimensions (mm)--------------------------------------------------------170x81.5x22
