1080P HDMI KVM Extender CAT5e/6 TCP/IP 200M MZ51200

MZ51200 1080P HDMI KVM Extender efficiently extends HDMI video, keyboard, and mouse signals up to 200 meters over a single CAT5e/6 cable using TCP/IP protocol. This robust solution is perfect for remotely controlling PCs or servers from a distance, making it ideal for home offices, corporate server rooms, industrial control centers, and educational environments where centralized management is crucial.

Description Package Information Inquiry

1.0 INTRODUCTION

This HDMI KVM Extender is based on TCP/IP standard. It transmits max 200 meters from your HDMI or DVI-D source to HD display by single CAT5e/6 cable.

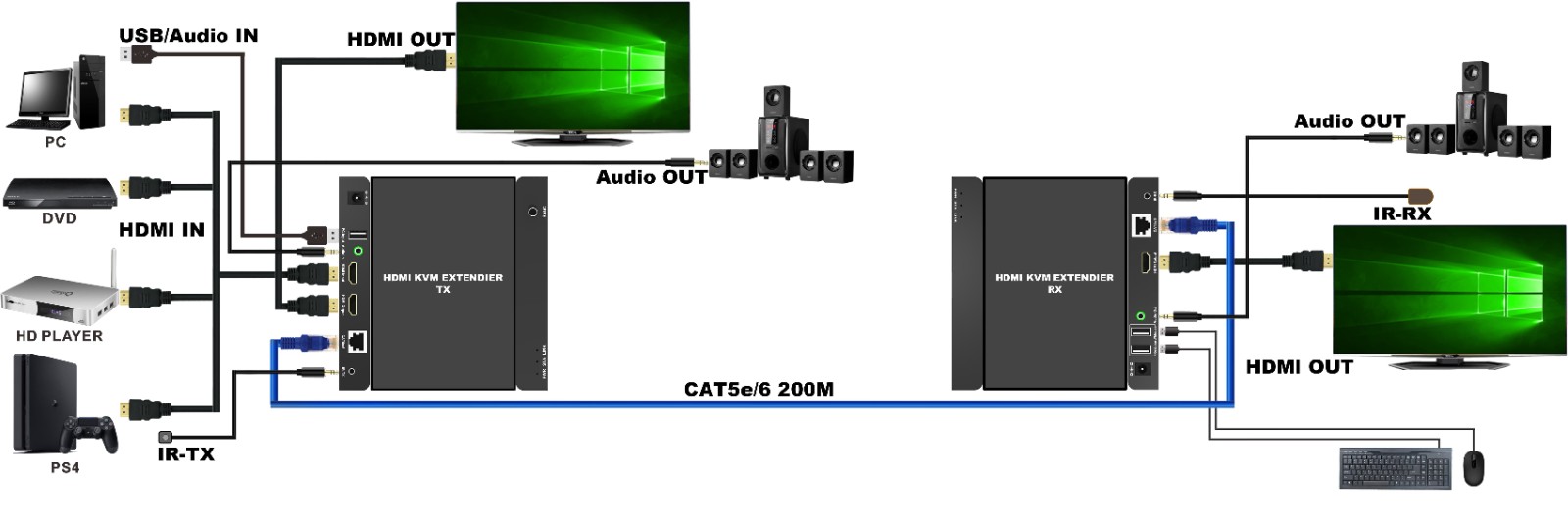

At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.

2.0 FEATURES

1.Signal transmission :CAT5e/6(recommended) cables up to 200 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI 1.3/HDCP1.1&1.2;

3.Support input/output resolution:480p,576p,720p,1080p;

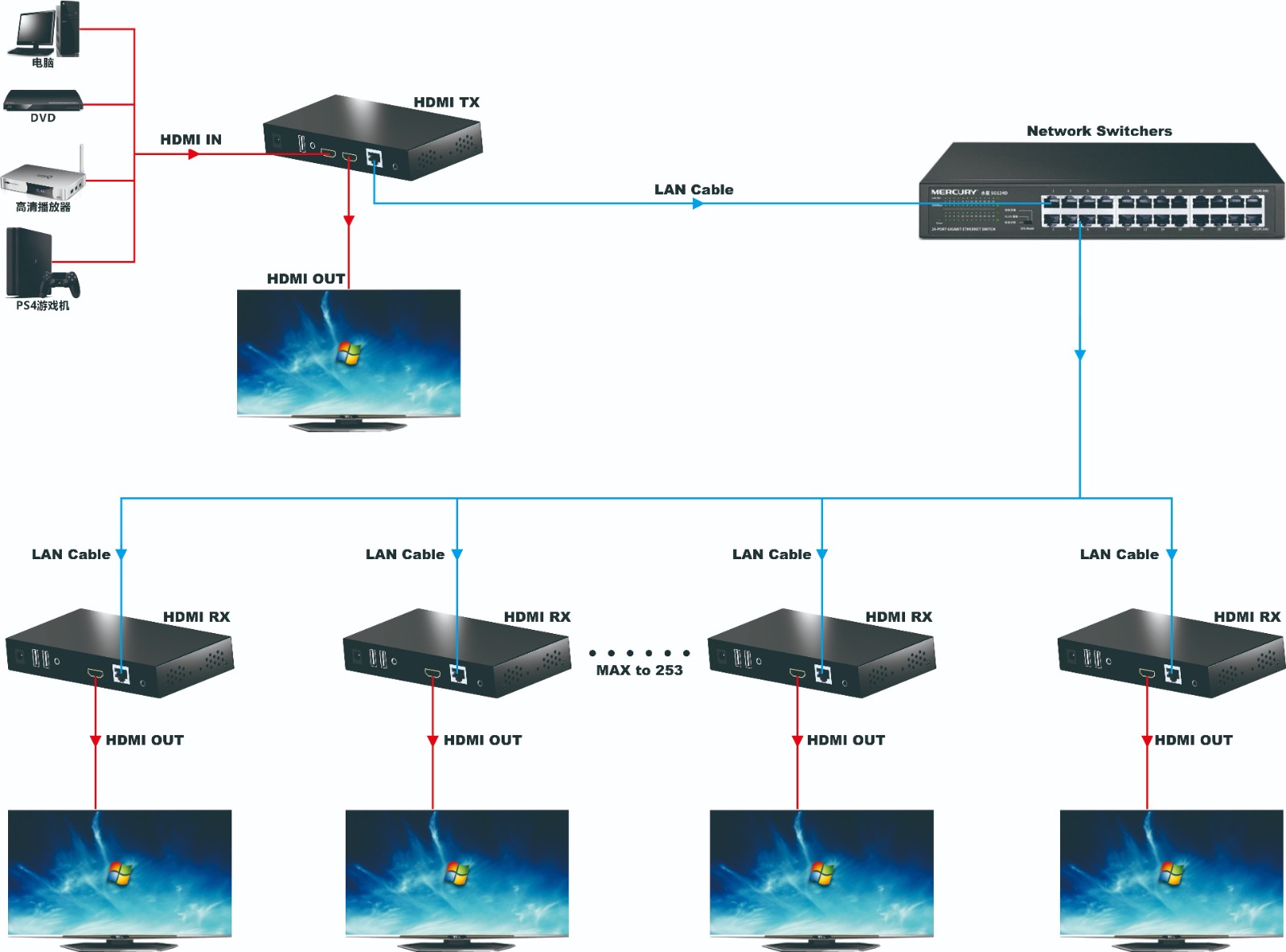

4.Support point-to-point mode, one point-to-many mode and cascade

connection mode;

5.802.3 Ethernet standard;

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by

remote control;

7.The design of pure hardware, plug and play, no need for additional software;

8.Support IR remote control 20~60KHz,NEC;

9.Support long distance controlled by keyboard and mouse.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ----------------------------------- 1PCS

HDMI Extender Receiver -------------------------------------- 1PCS

IR Transmitter ---------------------------------------------------- 1PCS

IR Receiver ------------------------------------------------------- 1PCS

12V DC Power Supply adapter ------------------------------ 2PCS

USB Data Cable--------------------------------------------------1PCS

Operation Manual ----------------------------------------------- 1PCS

4.0 SPECIFICATIONS

HDMI Version-----------------------------------------------------------------HDMI1.3a

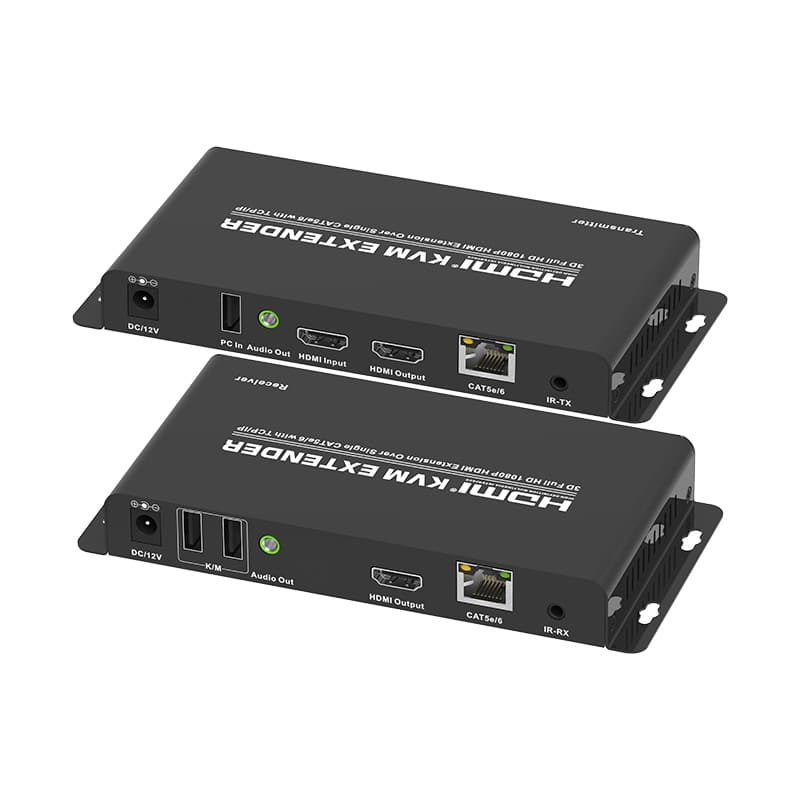

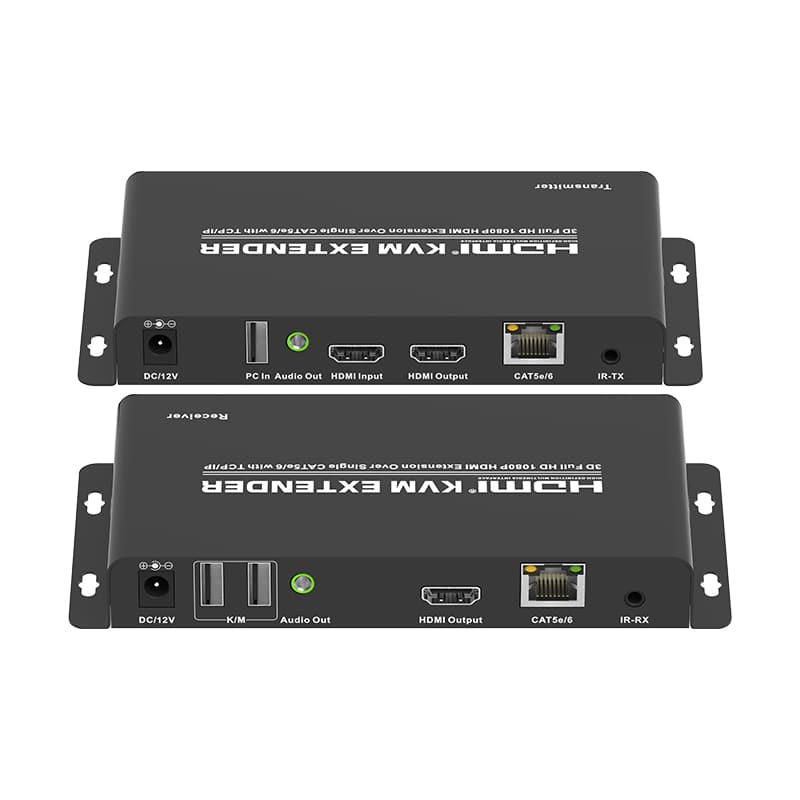

Transmitter Input Ports ---------------------------------HDMIx1(AF),USB(AF)x1

Transmitter Output Ports ------------------------HDMIx1(AF),RJ45x1,IR TXx1

Receiver Input Ports-----------------------------------------------RJ45x1,IR RXx1

Receiver Output Ports----------------------------------HDMIx1(AF),USB(AF)x2

Frequency Bandwidth--------------------------------------2.25Gbps (single link)

Input/Output Resolutions-------------------------------480ip,576p,720p,1080ip

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

IR remote control-----------------------------------------------------20~60KHz;NEC

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity---------------------------------20~90% RH (non-condensing)

Dimensions (mm)--------------------------------------------------------170x81.5x22
