1.0 INTRODUCTION

The HDMI KVM Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.

2.0 FEATURES

1.Signal transmission :CAT5e/6(recommended) cables up to 60 meters

instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI 1.3/HDCP1.1&1.2;

3.Support input/output resolution:480i/p,576p,720p,1080i/p;

4.Support Support TX With HDMI Loopout.

5.The design of pure hardware, plug and play, no need for additional software;

6.Support long distance controlled by keyboard and mouse.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ------------------------------------------------ 1PCS

HDMI Extender Receiver --------------------------------------------------- 1PCS

5V DC Power Supply adapter --------------------------------------------- 2PCS

USB Data Cable----------------------------------------------------------------1PCS

Operation Manual ------------------------------------------------------------- 1PCS

4.0 SPECIFICATIONS

HDMI Version-----------------------------------------------------------------HDMI1.3a

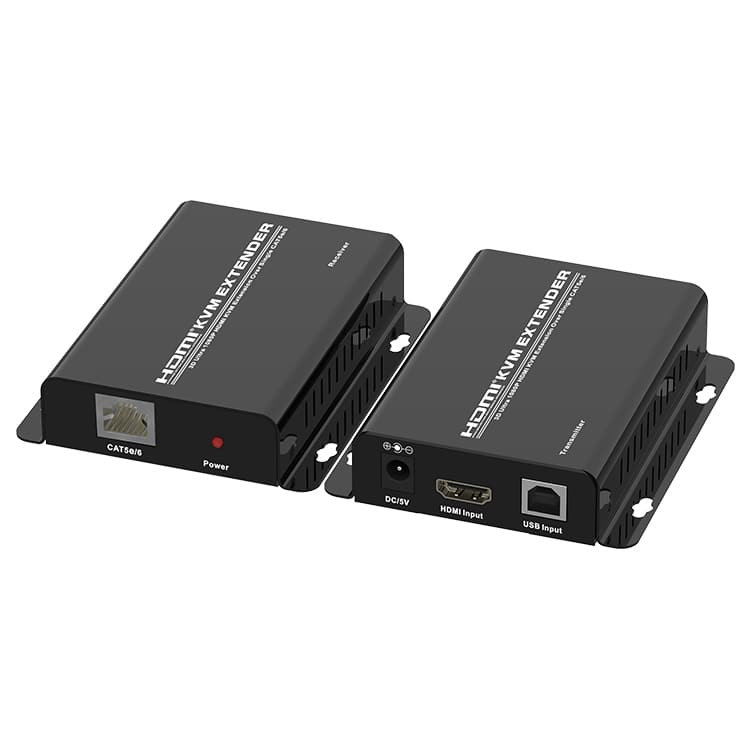

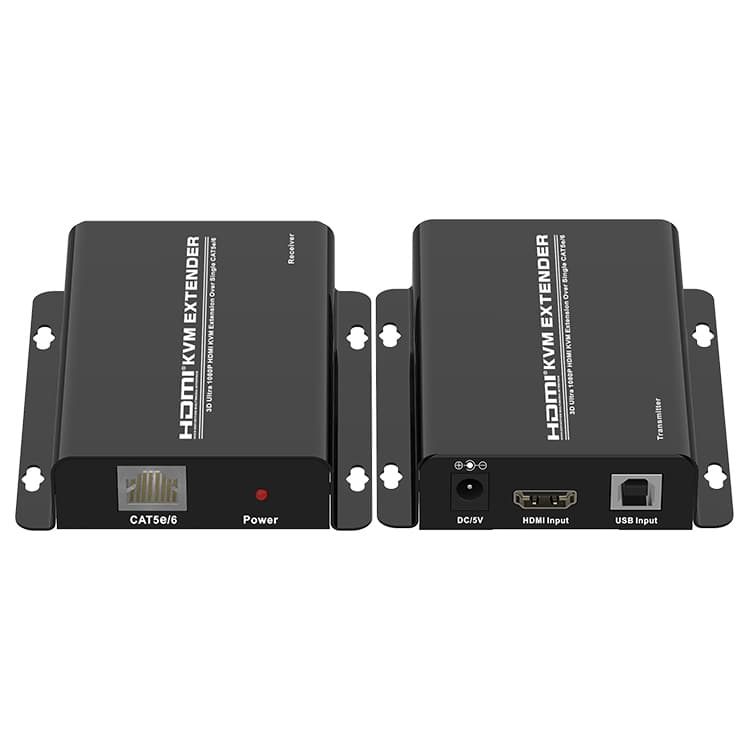

Transmitter Input Ports ---------------------------------HDMIx1(AF),USB(BF)x1

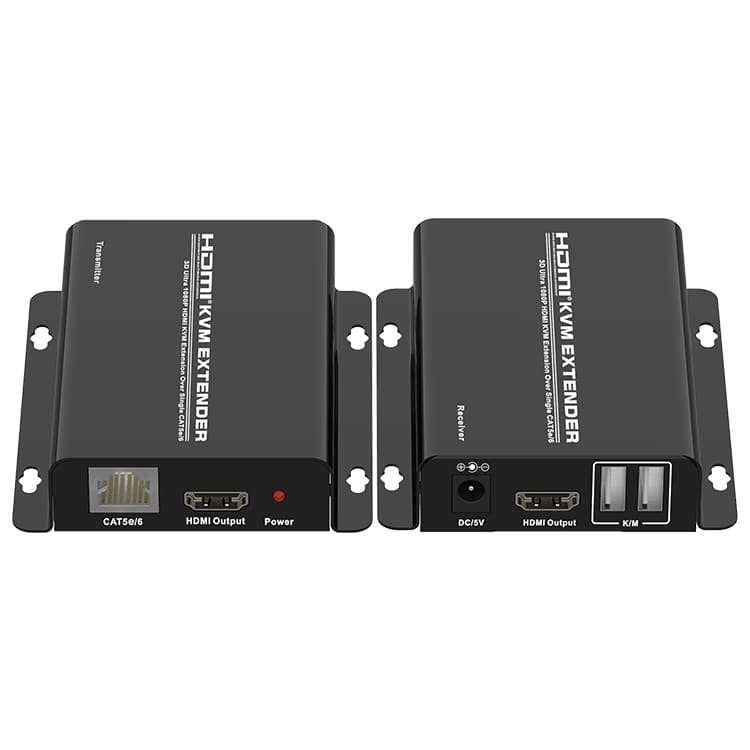

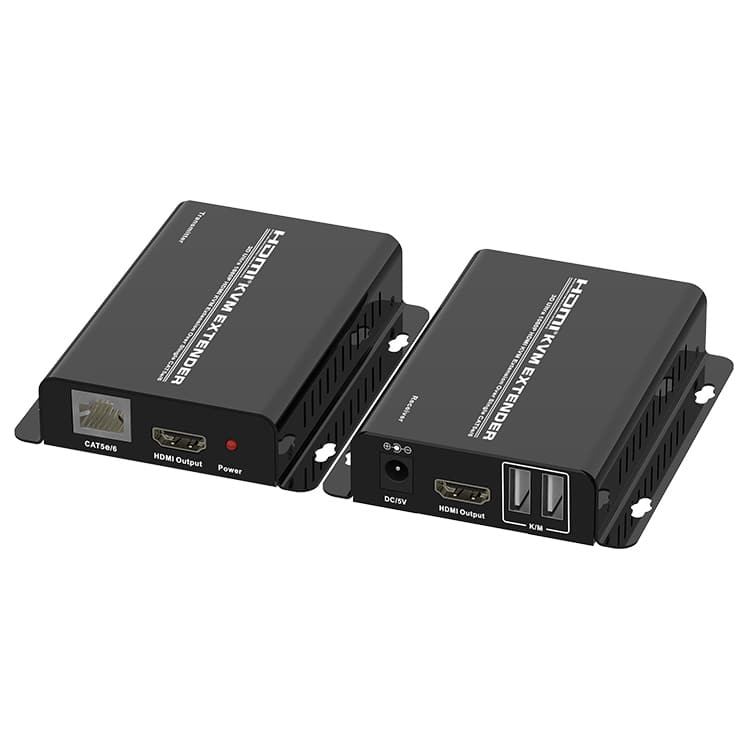

Transmitter Output Ports ------------------------------------HDMIx1(AF),RJ45x1

Receiver Input Ports------------------------------------------------------------RJ45x1

Receiver Output Ports-----------------------------------HDMIx1(AF),USB(AF)x2

Frequency Bandwidth---------------------------------------2.25Gbps (single link)

Input/Output Resolutions------------------------------480i/p,576p,720p,1080i/p

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

                                          ± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity----------------------------------20~90% RH (non-condensing)

Dimensions (mm)------------------------------------------------------------100x65x25
