1.0 INTRODUCTION

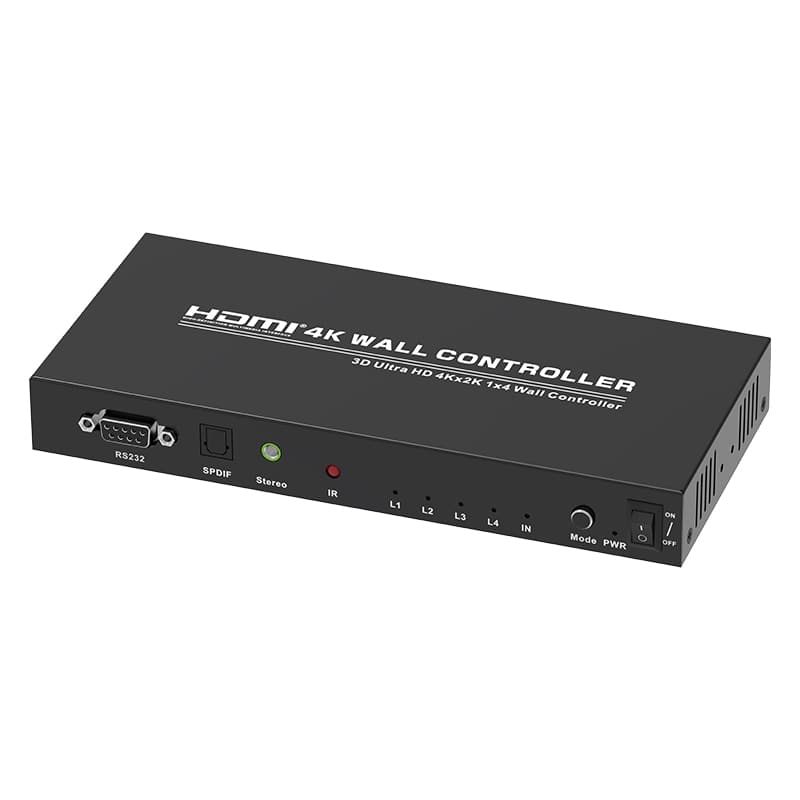

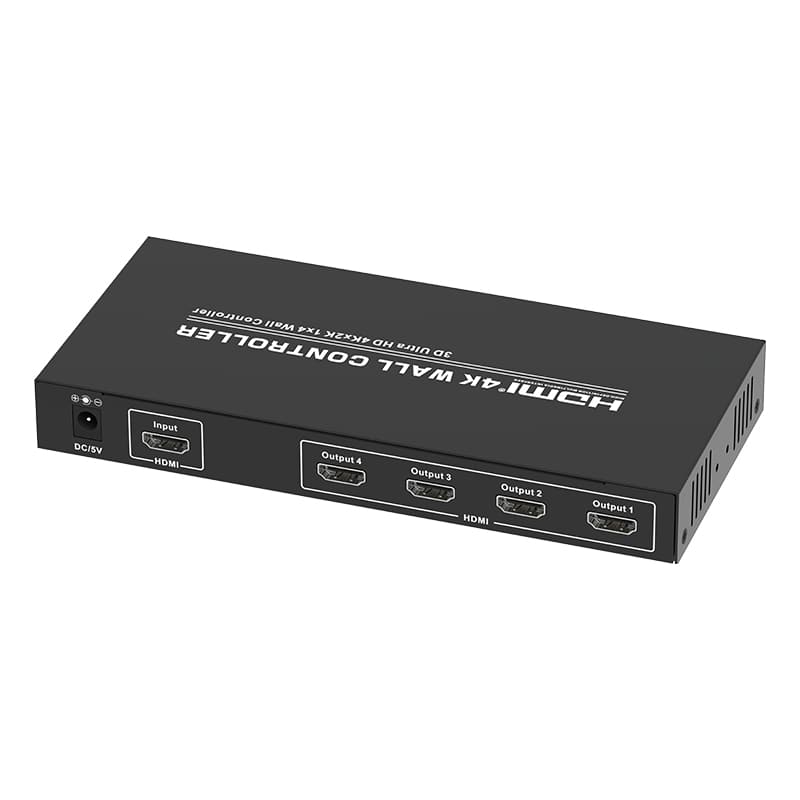

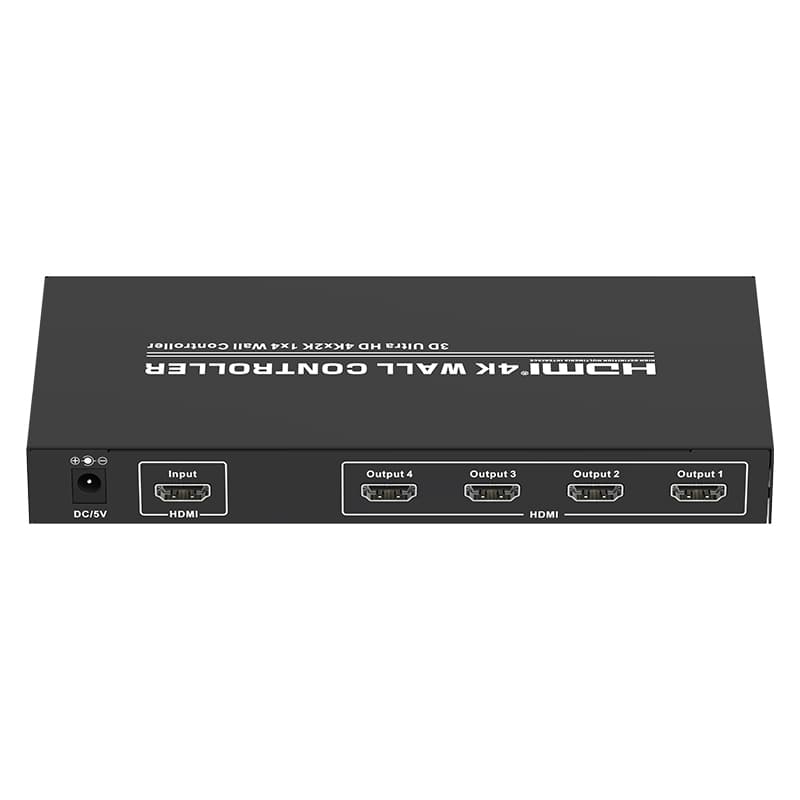

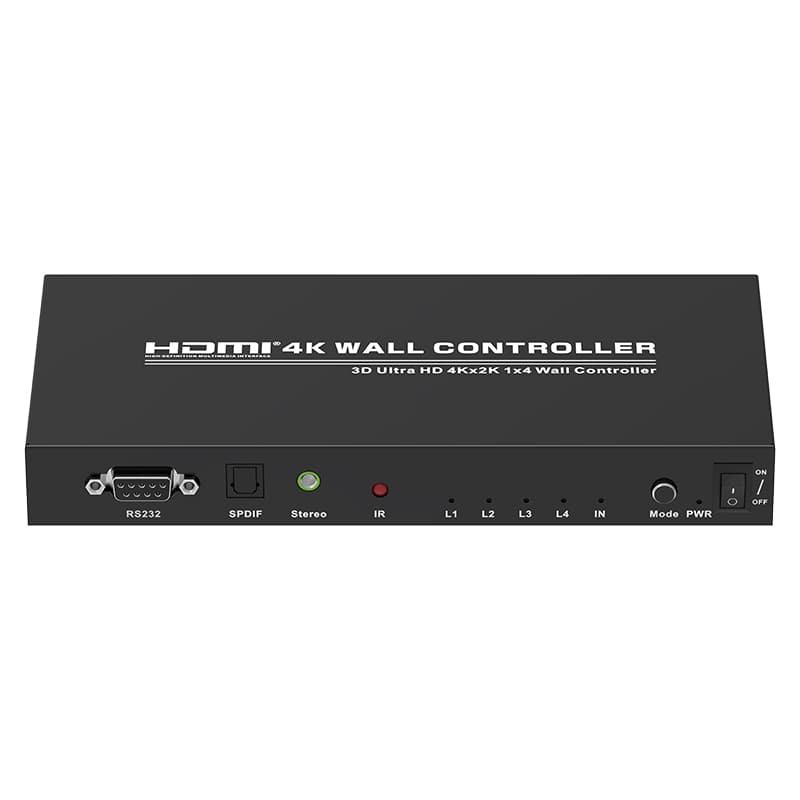

The 4K 2X2 video wall controller,support 1 way HDMI input and 4 HDMI output,the main function is to divide a complete HDMI HD image signal 4 blocks and assign to 4 video display unit(such as rear projection unit,LCD TV,etc.)Complete with 4 HDMI high-defintion video display units to form a large dynamic image screen.

2.0 FEATURES

1.Support HDMI1.4/HDCP1.4;

2.Input resolution include:1080p 25/30/50/60Hz,4Kx2K 24/30Hz;

3.Output resolution include:1080p 60Hz;

4.Input format:RGB/YUV 24bit; Output format: RGB444 24bit;

5.Support RS232 control;

6.Easy to operate,plug and play;

7.Need DC/5V power adapter.

3.0 PACKAGING ACCESSORIES:

When first unpacking your product please check to see if the following items are included:

1.HDMI 2X2 Wall Controller---------------------1 PCS

2.5V Power Supply---------------------------------1 PCS

3.Remote Control------------------------------------1PCS

4.User Manual----------------------------------------1PCS
