MZ304HE 8K@60Hz 4x1 HDMI Switch HDCP2.3 HDMI2.1

MZ304HE HDMI 2.1 4x1 Switch routes four 8K@60Hz inputs to one display, with HDCP 2.3 and EDID for flawless AV. Perfect for e-sports arenas, medical imaging, or digital art galleries. China-crafted, premium quality.
Description Package Information Inquiry

FEATURES

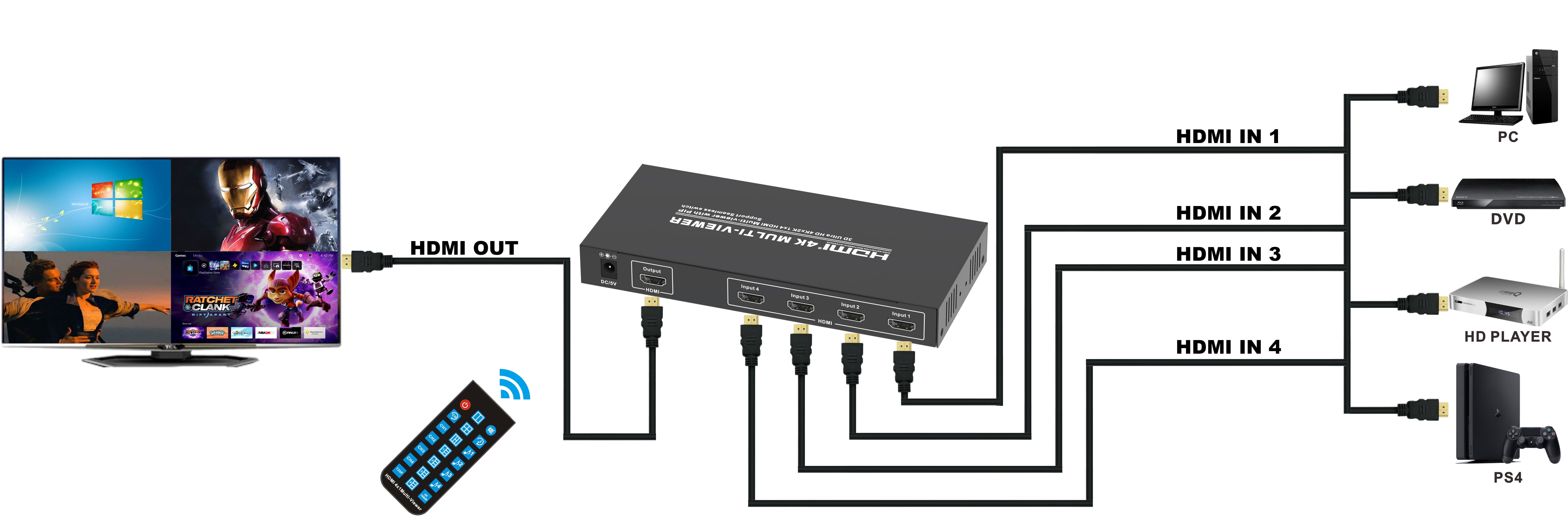

1. To support the simultaneous transmission of four video streams, multiple

   video signals can be transmitted to the same screen;

2. Switching is done via itself automatically when signal present on the ports;

3. Compliant with HDMI2.1, HDCP2.3;

4. Support high resolutions up to 480i/p,576p,720i/p,1080i/p,4K@120Hz,8K@60Hz;

5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;

6. Supports IR and Panel button control;

7. Compatible with DVI by using HDMI TO DVI adapter;

8.Extend the transmission distance and improve transmission signal;

9.Metal casing design and overall shielding without signal interference;



PACKAGING ACCESSORIES

When first unpacking your extender please check to see if the following items are included:

HDMI 4x1 switcher-------------------------------------------1PCS

USB Power Cable--------------------------------------------1PCS

Remote control------------------------------------------------1PCS

User Manual---------------------------------------------------1PCS



TECHNICAL PARAMETER IN DETAIL

Product

4X1 HDMI SWITCH

HDMI Source Input Port

4

Display Device Output Port

1

Source Port Connector

19 PIN HDMI(A TYPE)

Display Device Port Connector

19 PIN HDMI(A TYPE)

HDCP Compliant

YES

Source Device Selection

Push Button IR Remote Control

Input Video Signal

0.5-1.0 Volts P-P

Input DDC signal

5 Volts P-P(TTL)

Deep Color

12bit

Single Link Range

7680x4320

HDMI Version

HDMI2.1

HDR

Yes

Signal Speed

Up to 48Gbps

The length of input cable

≤5M

The length of output cable

≤5M

The cable standard

28AWG HDMI2.1

Vertical Frequency Range

60Hz

Power Consumption(max)

1.5 Watts

Operation Temperature

0℃ TO 70℃

Working Voltage

DC 5V

Power Adaptor

USB Cable

Net Weight(g)

150

Dimension: L×W×H(mm)

137.7×65.2×16
