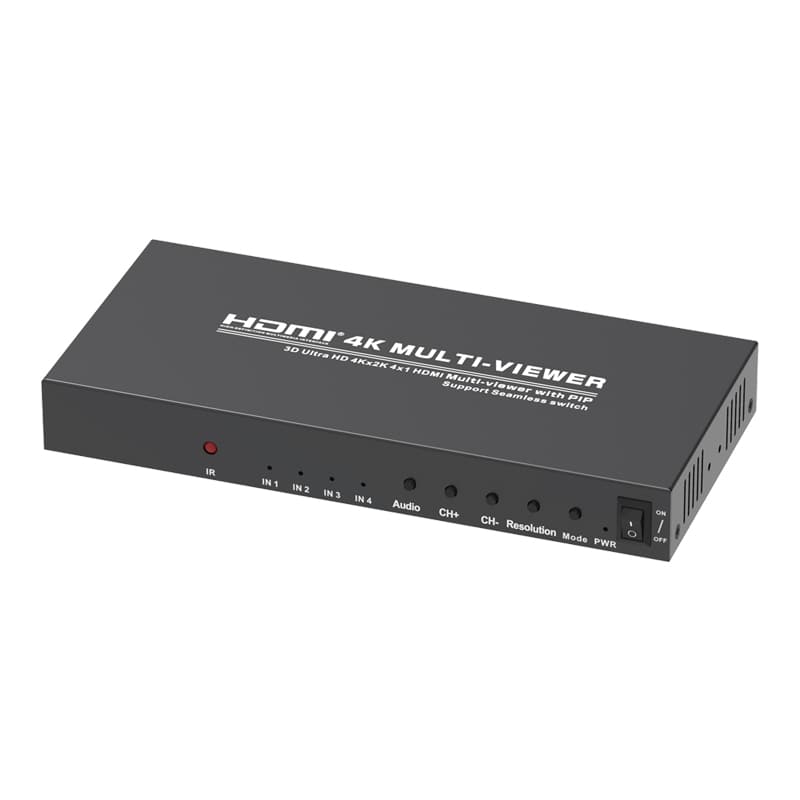

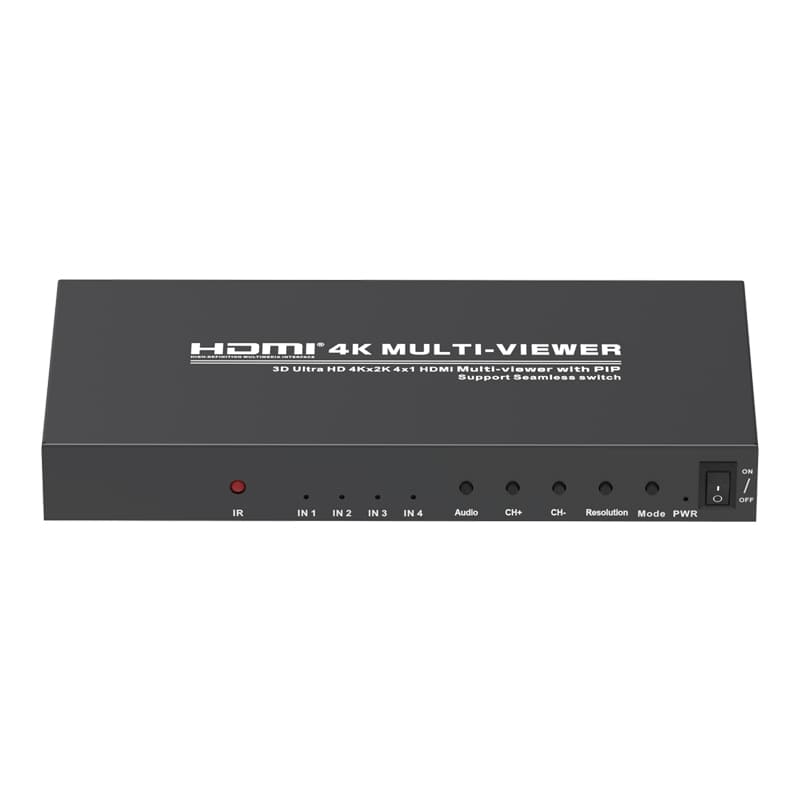

1.0 DESCRIPTION

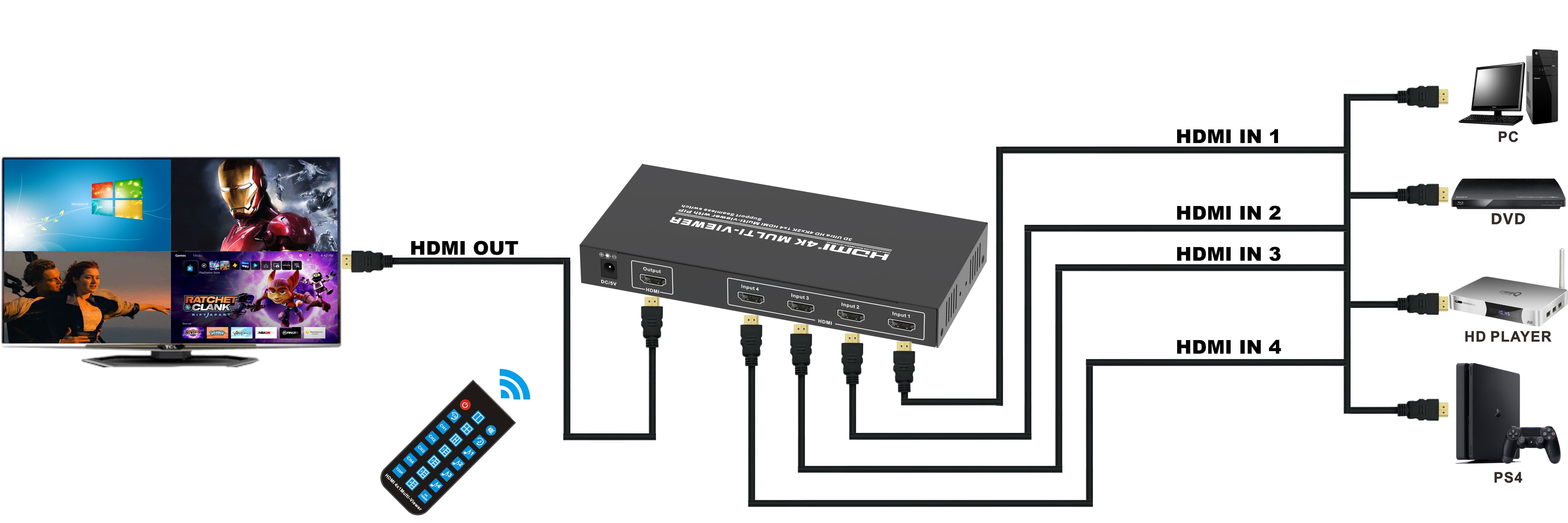

The product is a high performance 4 by 1 Quad Multi-viewer with seamless switcher.It supports four HDMI input sources to be displayed on one screen with multi-view mode.As a switcher,it can seamlessly switch the for HDMI input freely.The product can be controlled by various ways,through the front panel button.

2.0 FEATURES

1.Support HDMI1.4 HDCP1.4;

2.Supports Multiplexed HDMI 4 input and 1 output;

3.Support high resolutions up to including 480i/p,576p,720i/p,1080i/p,4K@30Hz;

4.Support 4 by 1 Quad Multi-viewer and seamless switch(with same

  resolution);

5.Support scaler up,scaler down function;

6.Support multi output resolution;

7.Support digital audio format LPCM/AC3/DTS;

8.Extend the transmission distance and improve transmission signal.

9.Power supply(Please refer to technical parameter).

3.0 PACKAGING ACCESSORIES

HDMI 4x1 Multi-viewer--------------------------------------1Piece

5V DC Power Adaptor--------------------------1Piece(Optional)

RemoteControl-----------------------------------1Piece(Optional)

User Manual---------------------------------------------------1Piece

4.0 TECHNICAL PARAMETER IN DETAIL

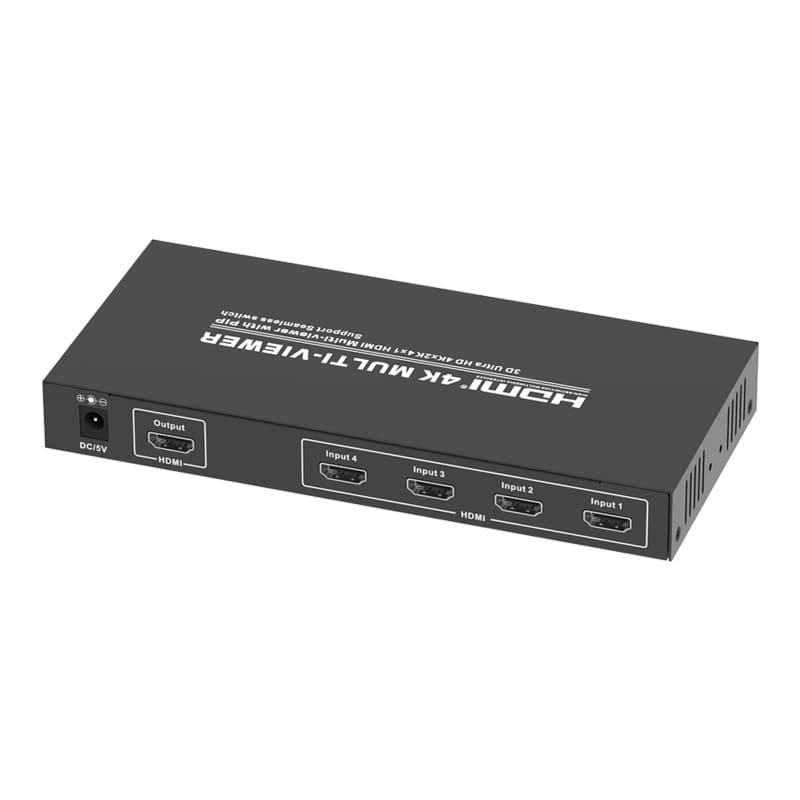

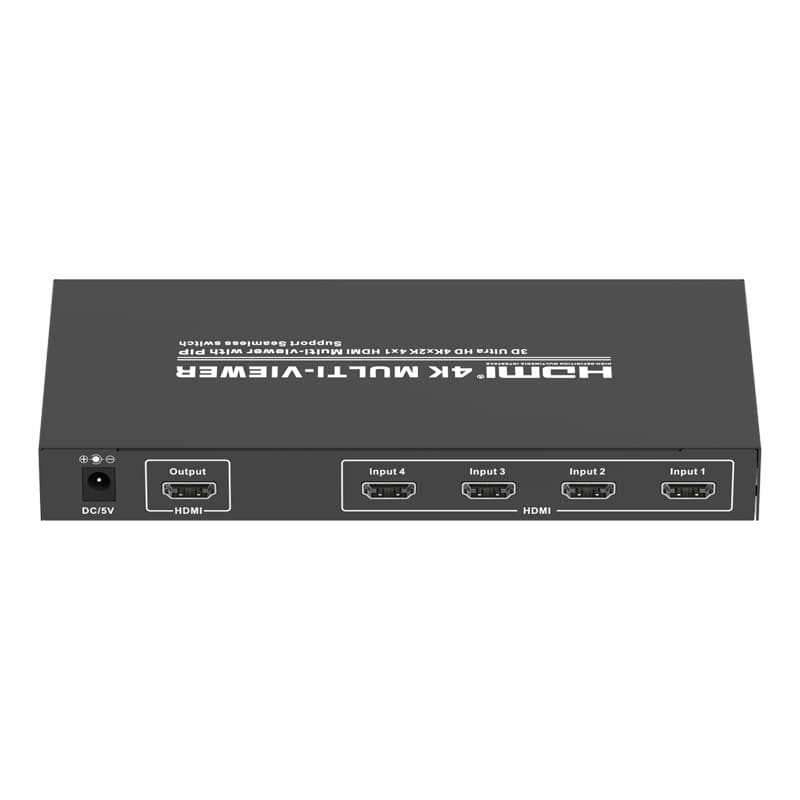

HDMI Source Input Port---------------------------------------------HDMIx4(A TYPE)

Display Device Output Port-----------------------------------------HDMIx1(A TYPE)

HDCP Compliant------------------------------------------------------------------------YES

Source Device Selection ------------------------ Push Button/IR Remote Control

Input/Output resolution--------------------480i/p,576i/p,720p,1080i/p,4K@30Hz

Audio output--------------------------------------PCM2,5.1,7.1CH,Dolby5.1,DTS5.1

Video Bandwidth------------------------------------------------------------------10.2Gbps

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color-------------------------------------------------------------------------------36bit

Operation Temperature----------------------------------------------------------0℃-70℃

Power Consumption(max)------------------------------------------------------3.5Watts

Working Voltage---------------------------------------------------------------------DC 5V

Power Adaptor-------------------------------------------------------------------DC 5V 2A

Net Weight(Kg)----------------------------------------------------------------------------0.5

Dimension: L×W×H(mm)---------------------------------------------200x91.4x22mm
