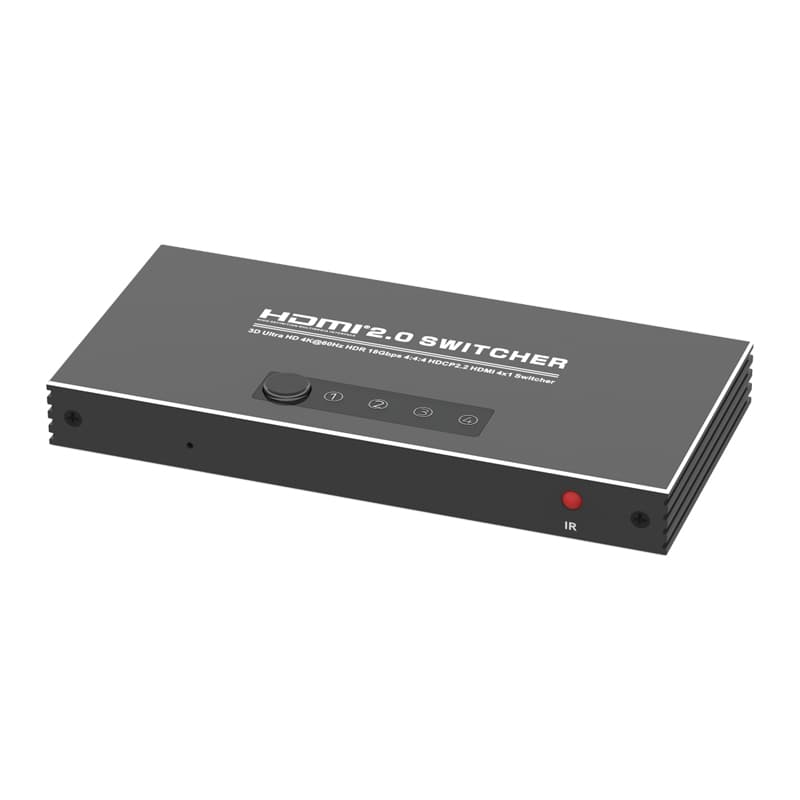

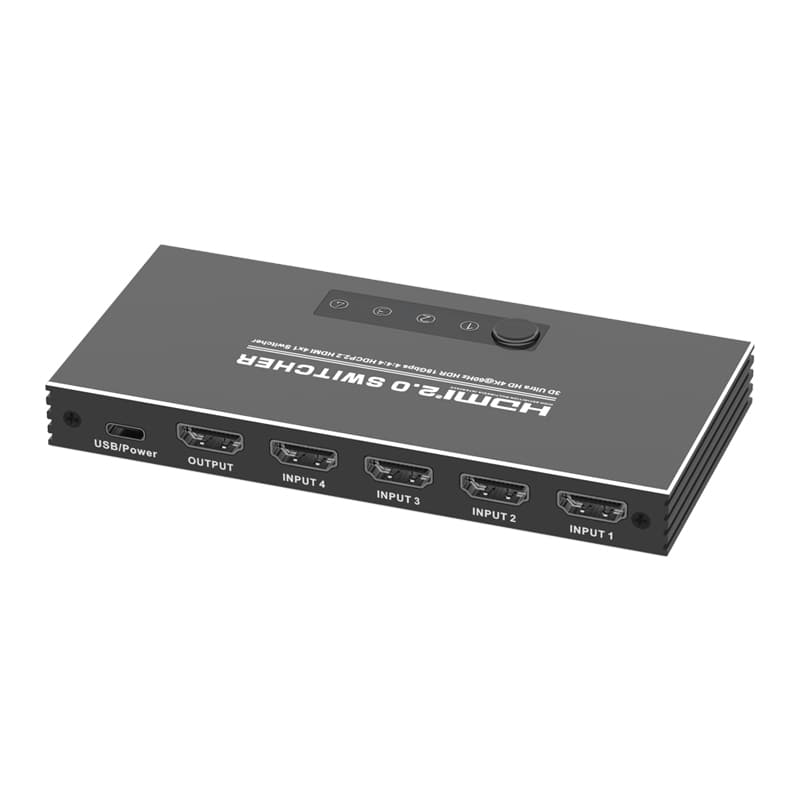

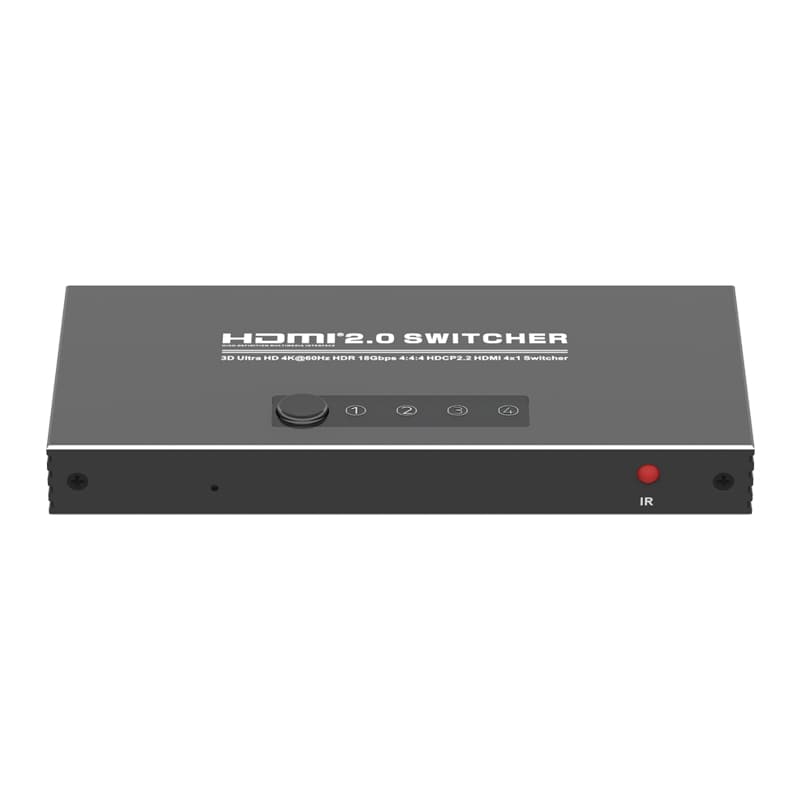

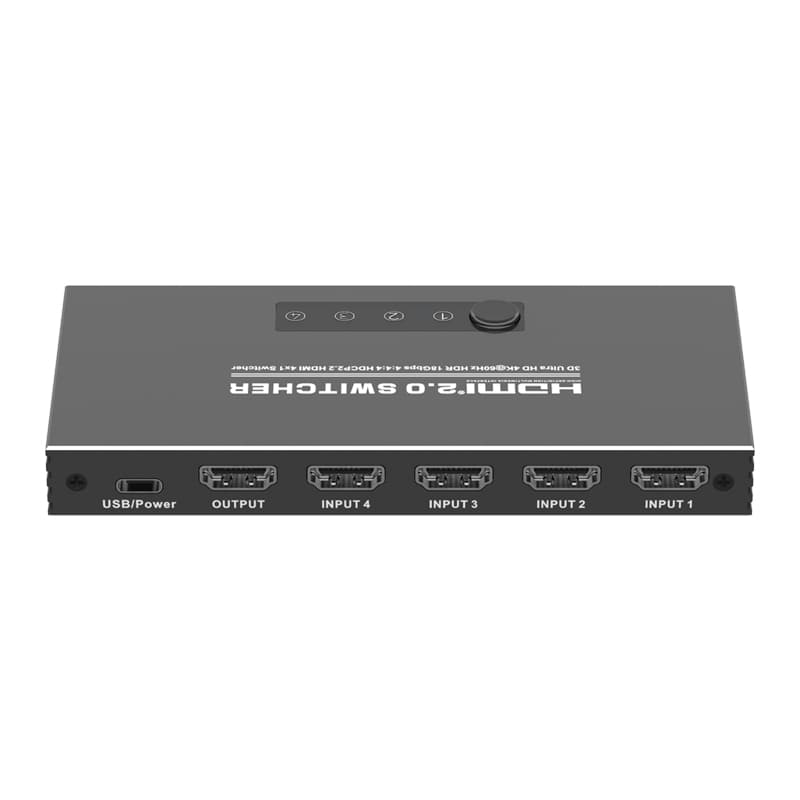

MZ304E 4K@60Hz 4x1 HDMI Switch HDCP2.2 HDMI2.0

MZ304E HDMI 2.0 4K@60Hz 4x1 Switch offers premium input management. Connect up to four 4K@60Hz sources to one display, enjoying pristine UHD video with full HDCP 2.2 compliance. Ideal for advanced home entertainment or high-demand professional AV environments requiring flexible, high-fidelity source selection.
Description Package Information Inquiry


FEATURES

1. To support the simultaneous transmission of four video streams, multiple

   video signals can be transmitted to the same screen;

2. Switching is done via itself automatically when signal present on the ports;

3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

4. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

5. Support 3D frame sequential video format up to 1080p@60;

6. Support high resolution VESA mode video format up to QSXGA@60Hz;

7. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;

8. Supports IR and Panel button control;

9. Compatible with DVI by using HDMI TO DVI adapter;

10.Extend the transmission distance and improve transmission signal;

11.Metal casing design and overall shielding without signal interference;

12.Power supply(Please refer to technical parameter).



PACKAGING ACCESSORIES

When first unpacking your extender please check to see if the following items are included:

HDMI 4x1 switcher-------------------------------------------1PCS

USB Power cable---------------------------------------------1PCS

Remote control------------------------------------------------1PCS

User Manual----------------------------------------------------1PCS



TECHNICAL PARAMETER IN DETAIL

Product

4X1 HDMI SWITCH

HDMI Source Input Port

4

Display Device Output Port

1

Source Port Connector

19 PIN HDMI(A TYPE)

Display Device Port Connector

19 PIN HDMI(A TYPE)

HDCP Compliant

YES

Source Device Selection

Push Button IR Remote Control

Input Video Signal

0.5-1.0 Volts P-P

Input DDC signal

5 Volts P-P(TTL)

Deep Color

48 bit

Single Link Range

3840x2160

HDMI Version

HDMI2.0

Bandwidth

Up to 600Mhz

Signal Speed

Up to 18Gbps

The length of input cable

≤10M

The length of output cable

≤10M

The cable standard

28AWG HDMI2.0

Vertical Frequency Range

60Hz

Power Consumption(max)

2.5 Watts

Operation Temperature

0℃ TO 70℃

Working Voltage

DC 5V

Power Adaptor

USB Cable

Net Weight(g)

150

Dimension: L×W×H(mm)

137.7×65.2×16
