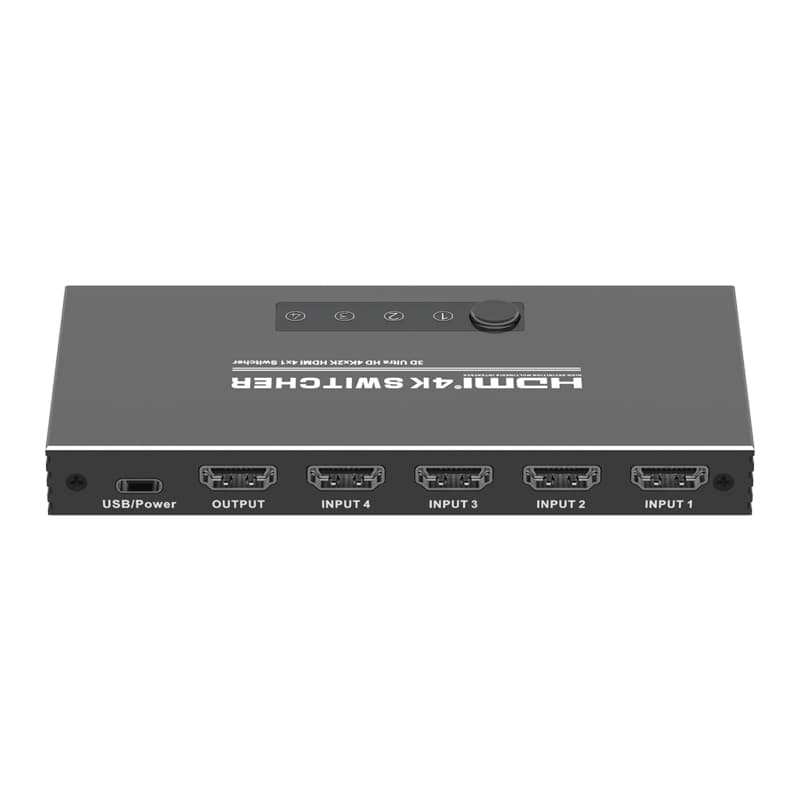

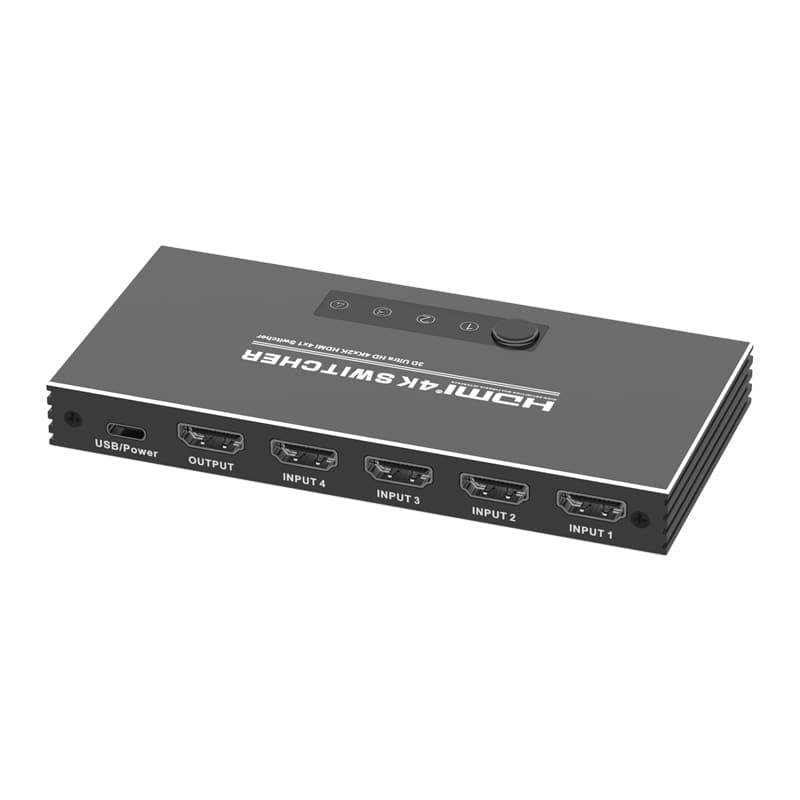

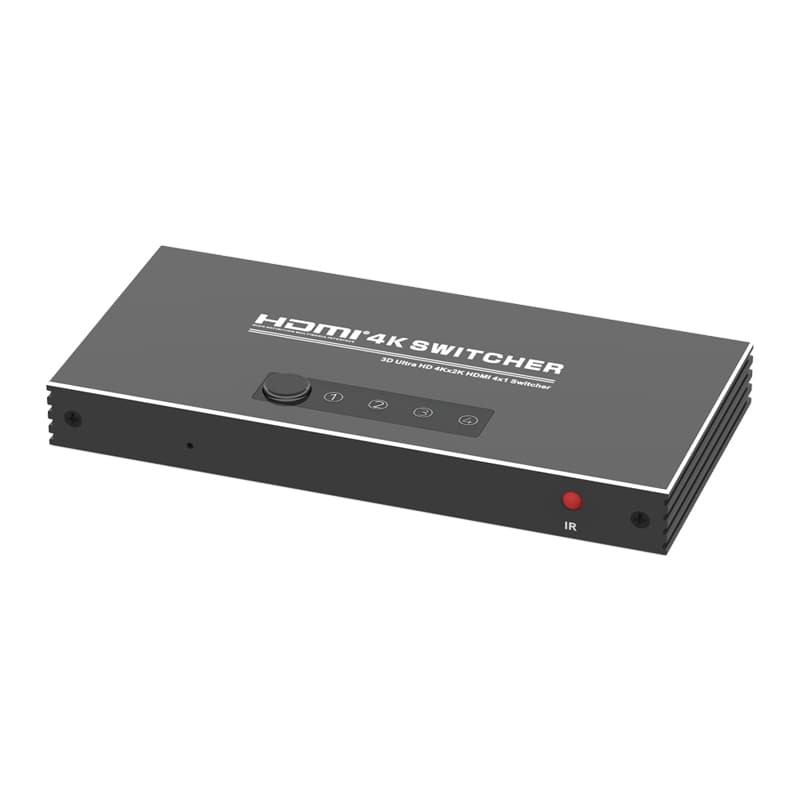

MZ304A 4K@30Hz 4x1 HDMI Switch HDCP1.4 HDMI1.4
FEATURES
1. To support the simultaneous transmission of four video streams, multiple
video signals can be transmitted to the same screen;
2. Switching is done via itself automatically when signal present on the ports;
3. Compliant with HDMI1.4, HDCP1.4 and DVI 1.0;
4. Support high resolutions up to 480i/p,576p,720i/p,1080i/p,4Kx2K@25/30Hz;
5. Support 3D frame sequential video format up to 1080p@60;
6. Support high resolution VESA mode video format up to QSXGA@60Hz;
7. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;
8. Supports IR and Panel button control;
9. Compatible with DVI by using HDMI TO DVI adapter;
10.Extend the transmission distance and improve transmission signal;
11.Metal casing design and overall shielding without signal interference;
12.Power supply(Please refer to technical parameter).
PACKAGING ACCESSORIES
When first unpacking your extender please check to see if the following items are included:
HDMI 4x1 switcher-------------------------------------------1PCS
USB Power cable---------------------------------------------1PCS
Remote control------------------------------------------------1PCS
User Manual----------------------------------------------------1PCS
TECHNICAL PARAMETER IN DETAIL
Product | 4X1 HDMI SWITCH |
HDMI Source Input Port | 4 |
Display Device Output Port | 1 |
Source Port Connector | 19 PIN HDMI(A TYPE) |
Display Device Port Connector | 19 PIN HDMI(A TYPE) |
HDCP Compliant | YES |
Source Device Selection | Push Button IR Remote Control |
Input Video Signal | 0.5-1.0 Volts P-P |
Input DDC signal | 5 Volts P-P(TTL) |
Deep Color | 36bit |
Single Link Range | 3840x2160 |
HDMI Version | HDMI1.4 |
Bandwidth | Up to 340Mhz |
Signal Speed | Up to 10.2Gbps |
The length of input cable | ≤10M |
The length of output cable | ≤10M |
The cable standard | 28AWG HDMI1.4 |
Vertical Frequency Range | 60Hz |
Power Consumption(max) | 2.5 Watts |
Operation Temperature | 0℃ TO 70℃ |
Working Voltage | DC 5V |
Power Adaptor | USB Cable |
Net Weight(g) | 150 |
Dimension: L×W×H(mm) | 137.7×65.2×16 |
