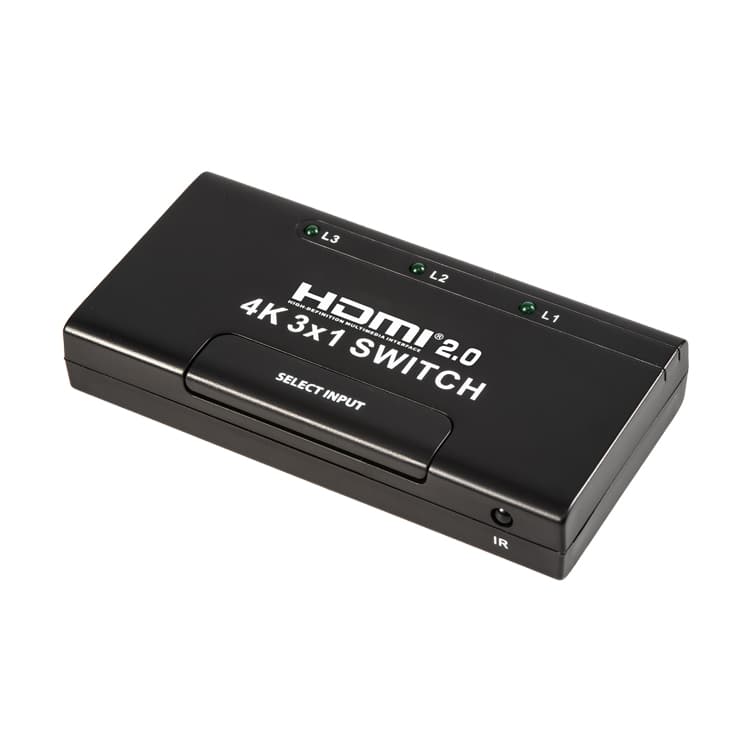

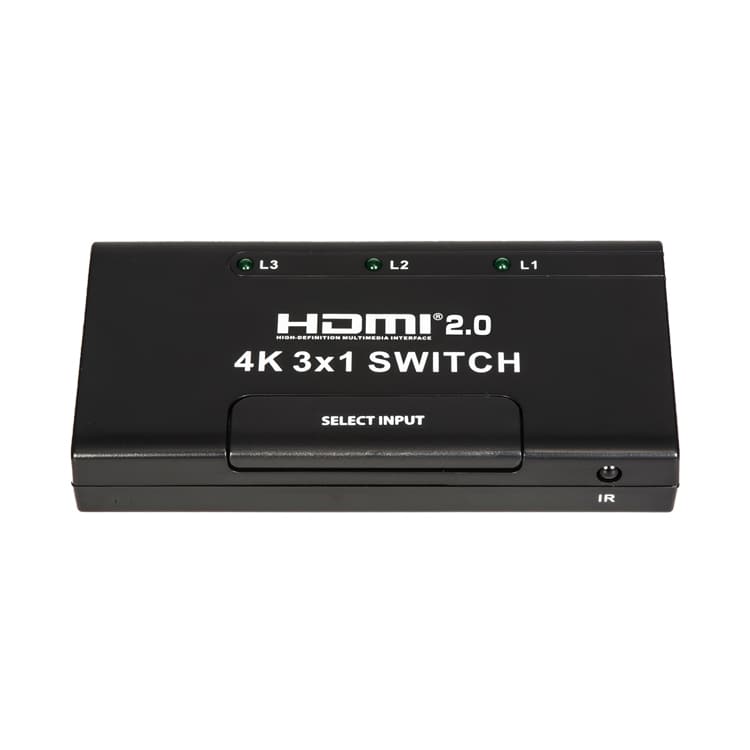

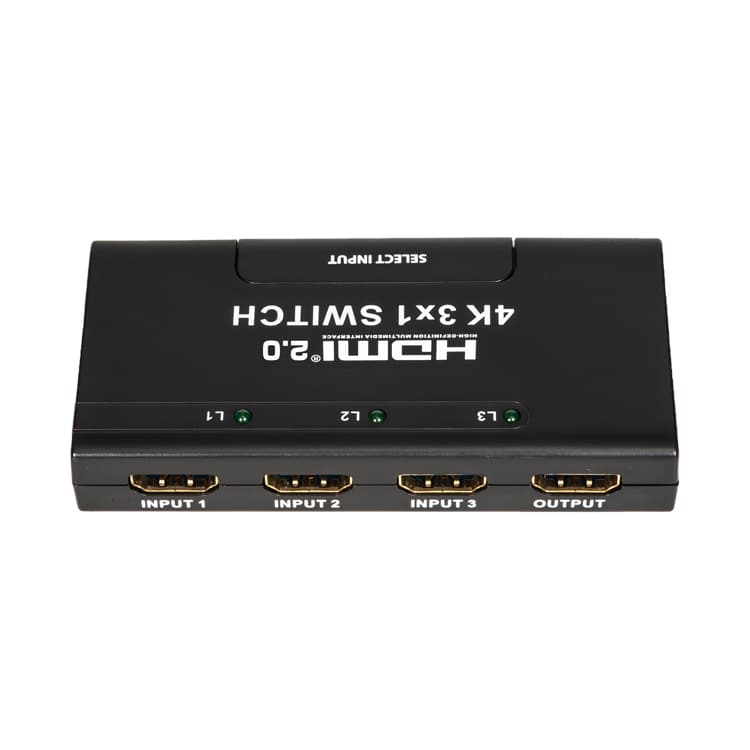

MZ303ES 4K@60Hz 3x1 HDMI Switch HDCP2.2 Plastic HDMI2.0
FEATURES
1. To support the simultaneous transmission of two video streams, multiple
video signals can be transmitted to the same screen;
2. Switching is done via itself automatically when signal present on the ports;
3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
4. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;
5. Support 3D frame sequential video format up to 1080p@60;
6. Support high resolution VESA mode video format up to QSXGA@60Hz;
7. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;
8. Supports IR and Panel button control;
9. Compatible with DVI by using HDMI TO DVI adapter;
10.Extend the transmission distance and improve transmission signal;
11.Metal casing design and overall shielding without signal interference;
12.Power supply(Please refer to technical parameter).
PACKAGING ACCESSORIES
When first unpacking your extender please check to see if the following items are included:
HDMI 3x1 switcher-------------------------------------------1PCS
5V DC Power Adaptor---------------------------------------1PCS
Remote control------------------------------------------------1PCS
IR Receiver Extension Cable -----------------------------1PCS
User Manual---------------------------------------------------1PCS
TECHNICAL PARAMETER IN DETAIL
Product | 3X1 HDMI SWITCH |
HDMI Source Input Port | 3 |
Display Device Output Port | 1 |
Source Port Connector | 19 PIN HDMI(A TYPE) |
Display Device Port Connector | 19 PIN HDMI(A TYPE) |
HDCP Compliant | YES |
Source Device Selection | Push Button IR Remote Control |
Input Video Signal | 0.5-1.0 Volts P-P |
Input DDC signal | 5 Volts P-P(TTL) |
Deep Color | 48 bit |
Single Link Range | 3840x2160@60 |
HDMI Version | HDMI2.0 |
Bandwidth | Up to 600Mhz |
Signal Speed | Up to 18Gbps |
The length of input cable | ≤10M |
The length of output cable | ≤10M |
The cable standard | 28AWG HDMI2.0 |
Vertical Frequency Range | 60Hz |
Power Consumption(max) | 2.5 Watts |
Operation Temperature | 0℃ TO 70℃ |
Working Voltage | DC 5V |
Power Adaptor | 5V 1A |
Net Weight(Kg) | 0.13 |
Dimension: L×W×H(mm) | 100×48×25 |
