4K@60Hz 1x4 HDMI Splitter Extender via Cat5e/6 60m MZ104EX60S

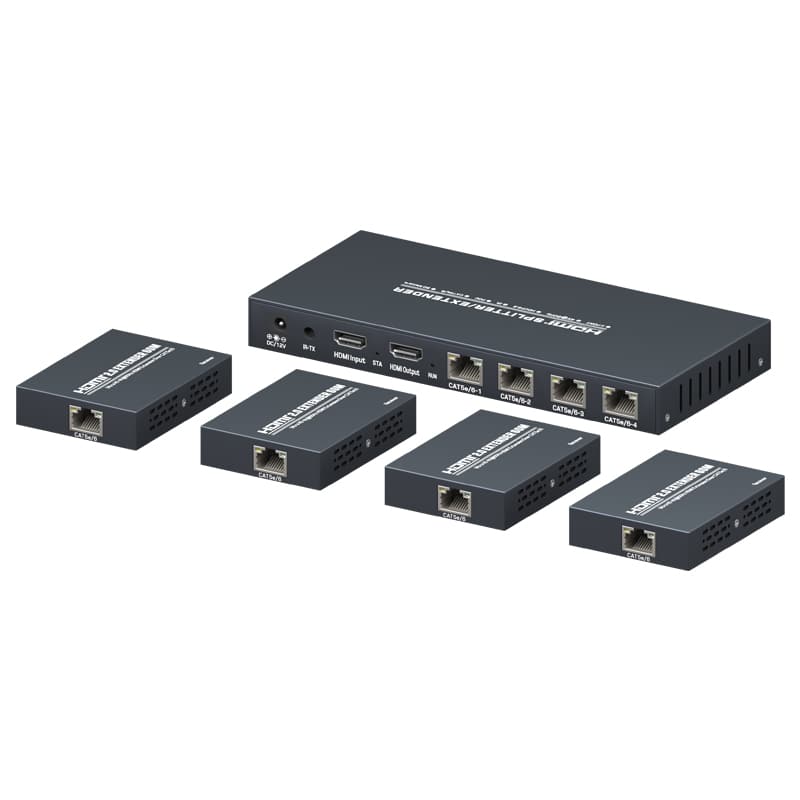

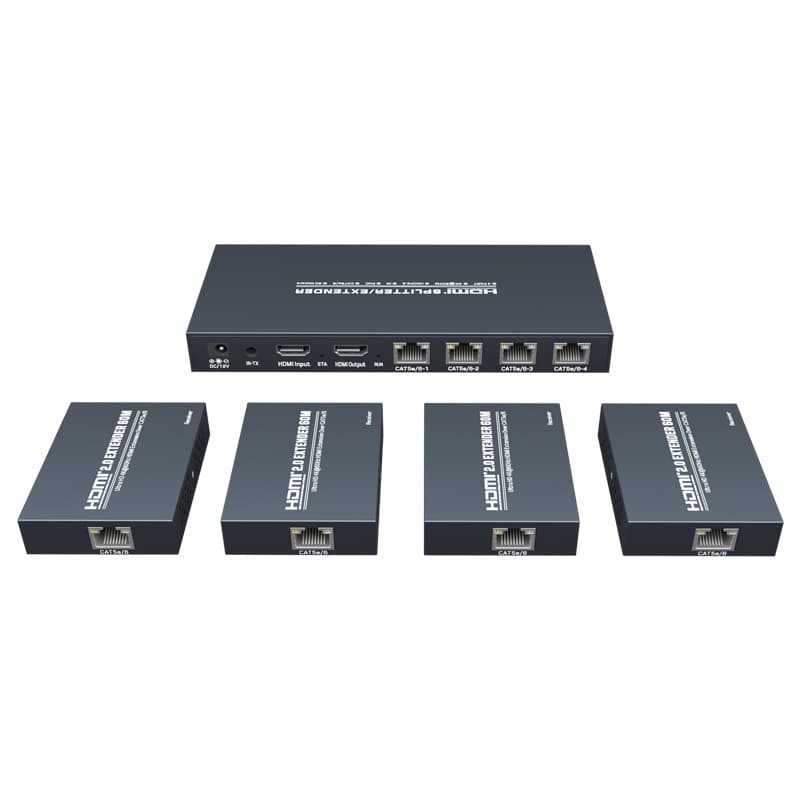

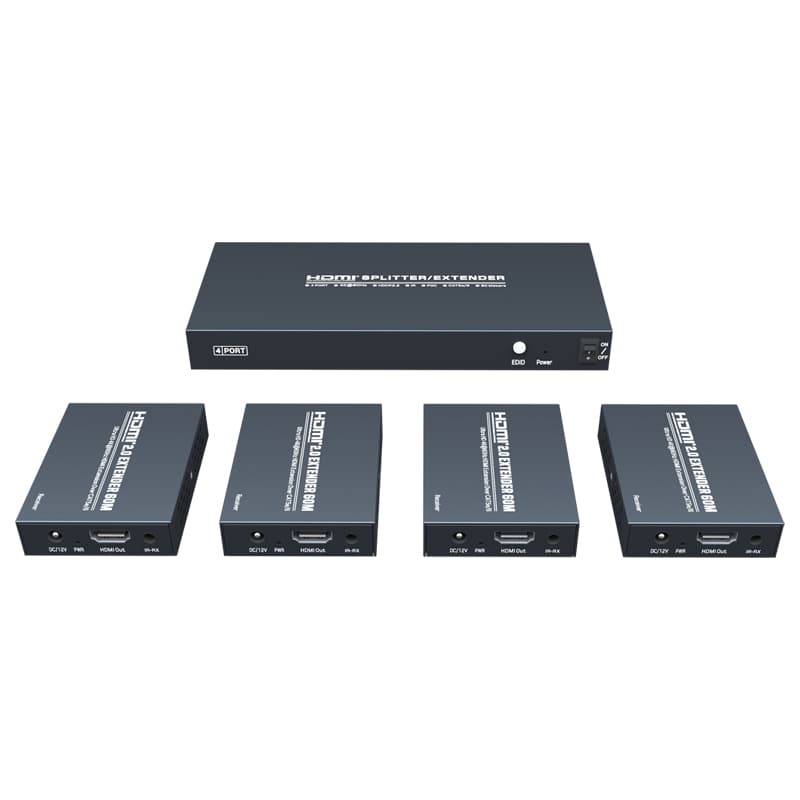

Mattzon’s MZ104EX60S HDMI 2.0 1x4 Splitter Extender delivers one HDMI signal to four displays up to 60m via Cat5e/6. Supports 4K@60Hz, HDCP 2.2, and EDID for seamless AV distribution. Ideal for commercial displays or home setups.
Description Package Information Inquiry


1.0 Introduction:

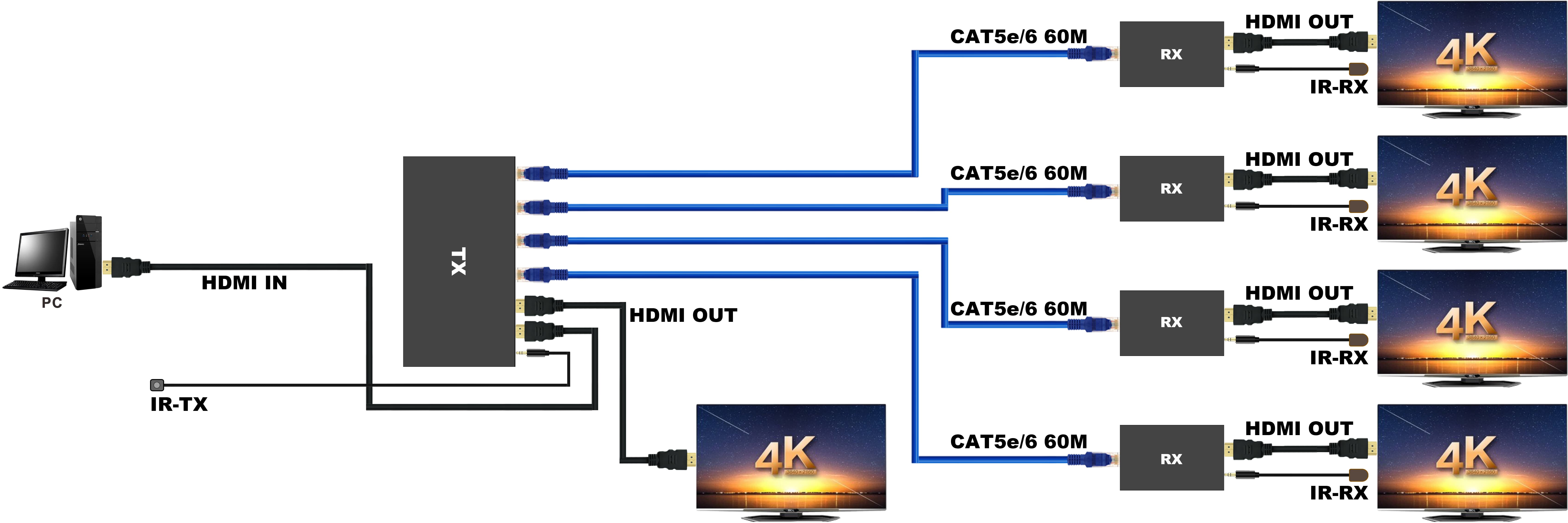

The HDMI splitter extender is a product for splitting and extending your HDMI signal over long distances to a compatible display. It uses a single CAT5e/6 or higher-level cable up to 60 meters instead of an HDMI cable to transmit high-definition signals. The HDMI signal is distributed from source devices such as DVD players, Satellite Receivers, Set-Top Boxes, DV Cameras, AV Receivers, and other HDMI-enabled devices to one or more high-definition display devices like HDTVs and HDMI Flat Panel Displays.

2.0 Features:

  1. One HDMI input signal splits into multiple HDMI outputs over CAT5e/6 RJ45 cable.

  2. Transmission distance: CAT5e/6 or higher-level RJ45 cable up to 60 meters.

  3. Supports HDMI 2.0 and HDCP 2.2 protocol.

  4. Video format support: 4K@60Hz, 4K@30Hz, 1080p, 720p, 576p, 480p.

  5. Audio format support: DTS-HD/Dolby-TrueHD/LPCM 7.1/DTS/Dolby-AC3/DSD.

  6. Transmitter supports HDMI loopout.

  7. Support EDID select.

  8. Support POC (Power Over Cable) and 20-50KHz IR passthrough.

  9. Easy to install, plug and play, no drivers needed.

  10. DC/12V power supply.

3.0 Packaging Accessories:

When first unpacking your extender, please check to see if the following items are included:

  1. HDMI Splitter/Extender Transmitter ---------------------- 1 PC

  2. HDMI Receiver ---------------------------------------------- 2/4/8 PCs (Please specify the exact quantity based on your product variant)

  3. IR-TX Cable ----------------------------------------------- 1 PC

  4. IR-RX Cable ----------------------------------------------- 2/4/8 PCs (Matches receiver quantity, please specify)

  5. Power Supply ----------------------------------------------- 1 PC

  6. User Manual ------------------------------------------------ 1 PC
