1.0 Introduction:

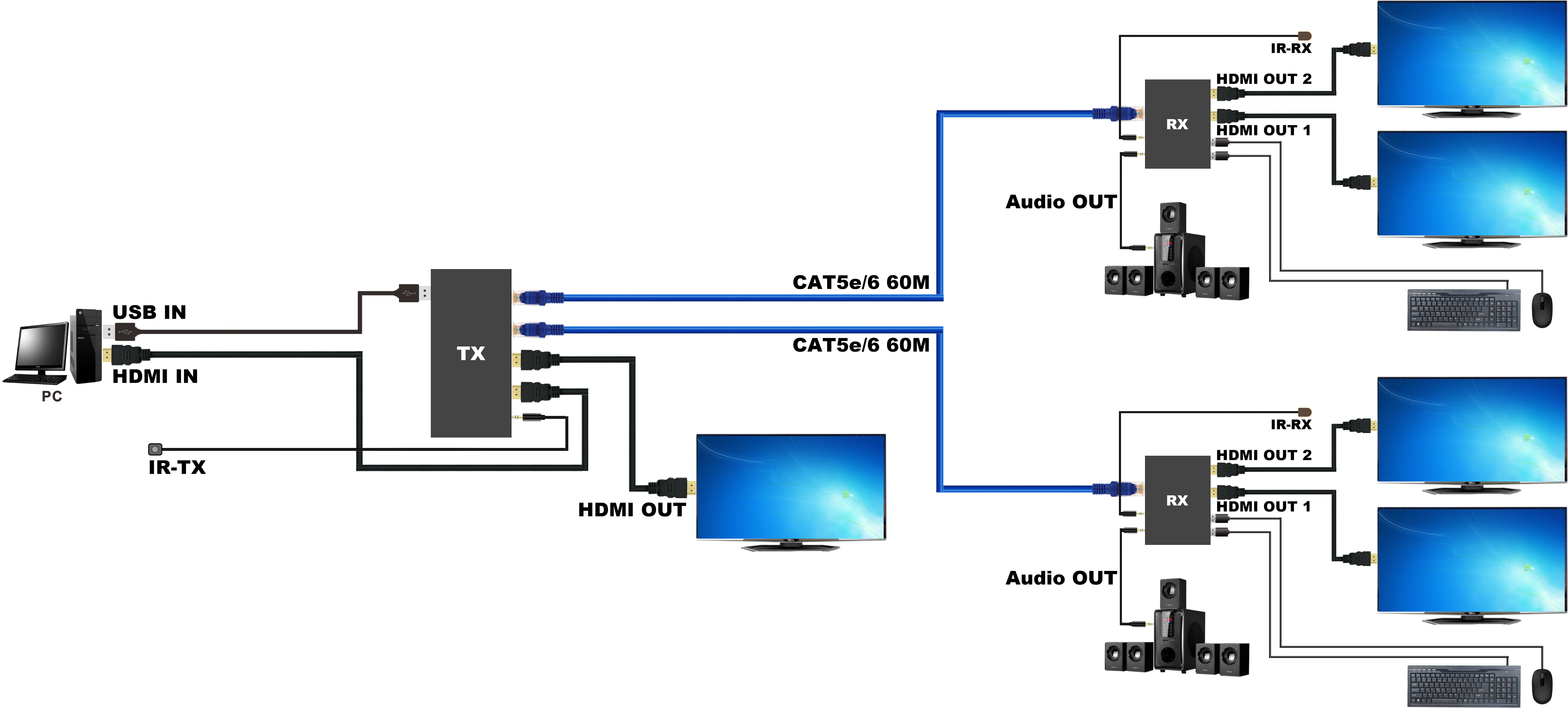

The HDMI KVM splitter extender is a product for splitting and extending your HDMI+USB signal over long distances to a compatible display. It uses a single CAT5e/6 or higher-level cable up to 60 meters instead of an HDMI cable to transmit high-definition signals. The HDMI signal is distributed from source devices such as DVD players, Satellite Receivers, Set-Top Boxes, DV Cameras, AV Receivers, PCs, NVR/DVR, and other HDMI-enabled devices to one or more high-definition display devices such as HDTVs and HDMI Flat Panel Displays. And it supports connecting a keyboard and mouse at the receiving end to achieve remote operation at the receiving end.

2.0 Features:

1. One HDMI+USB input signal splits into multiple HDMI+KVM outputs over CAT5e/6 RJ45 cable.

2. Transmission distance: CAT5e/6 or higher-level RJ45 cable up to 60 meters.

3. Supports HDMI 2.0 and HDCP 2.2 protocol.

4. Video format support: 4K@60Hz/4K@30Hz/1080p/720p/576p/480p.

5. Audio format support: DTS-HD/Dolby-TrueHD/LPCM 7.1/DTS/Dolby-AC3/DSD.

6. Transmitter supports HDMI loopout.

7. Support EDID select.

8. Support POC (Power Over Cable) and 20-80KHz IR passthrough.

9. Each receiver supports synchronous output for two HDMI display devices.

10. Each receiver supports independent audio extraction.

11. Compatible with different brands of keyboards/mouse.

12. DC/12V power supply.

3.0 Packaging Accessories:

When first unpacking your extender, please check to see if the following items are included:

1. HDMI Splitter/Extender Transmitter ---------------------- 1 PC

2. HDMI Receiver ---------------------------------------------- 2/4/8 PCs (Please specify the exact quantity based on your product variant)

3. IR-TX Cable ----------------------------------------------- 1 PC

4. IR-RX Cable ----------------------------------------------- 2/4/8 PCs (Matches receiver quantity, please specify)

5. USB 2.0 Data Cable ----------------------------------------- 1 PC

6. Power Supply ----------------------------------------------- 1 PC

7. User Manual ------------------------------------------------ 1 PC
