1.0 Introduction:

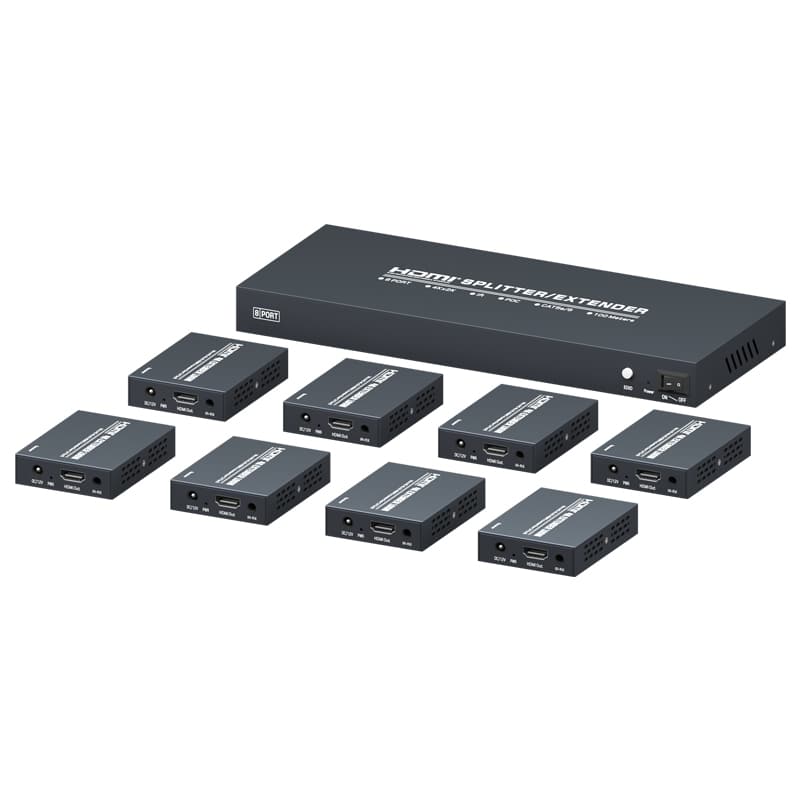

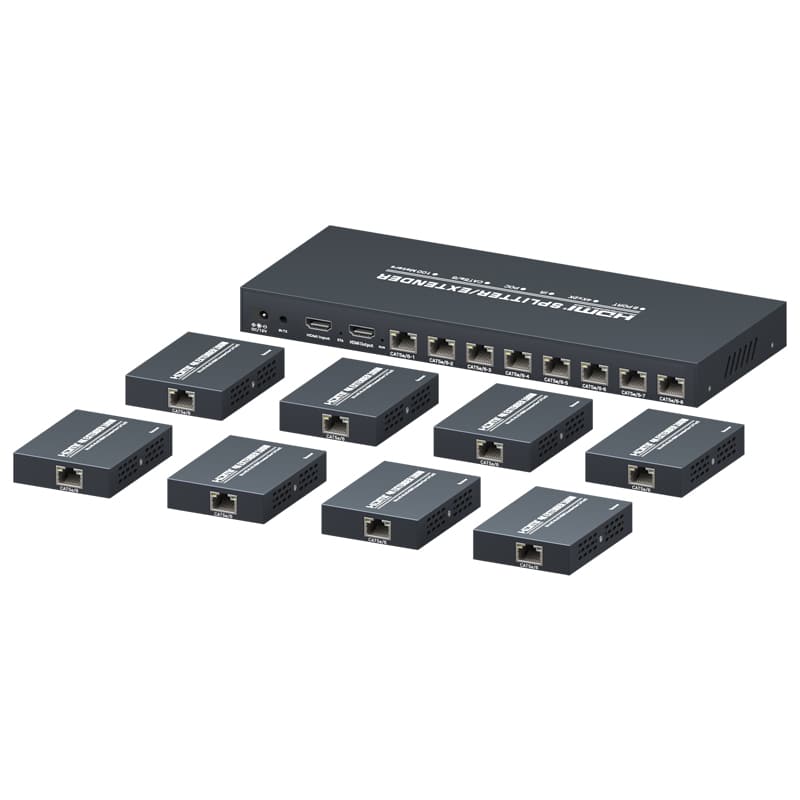

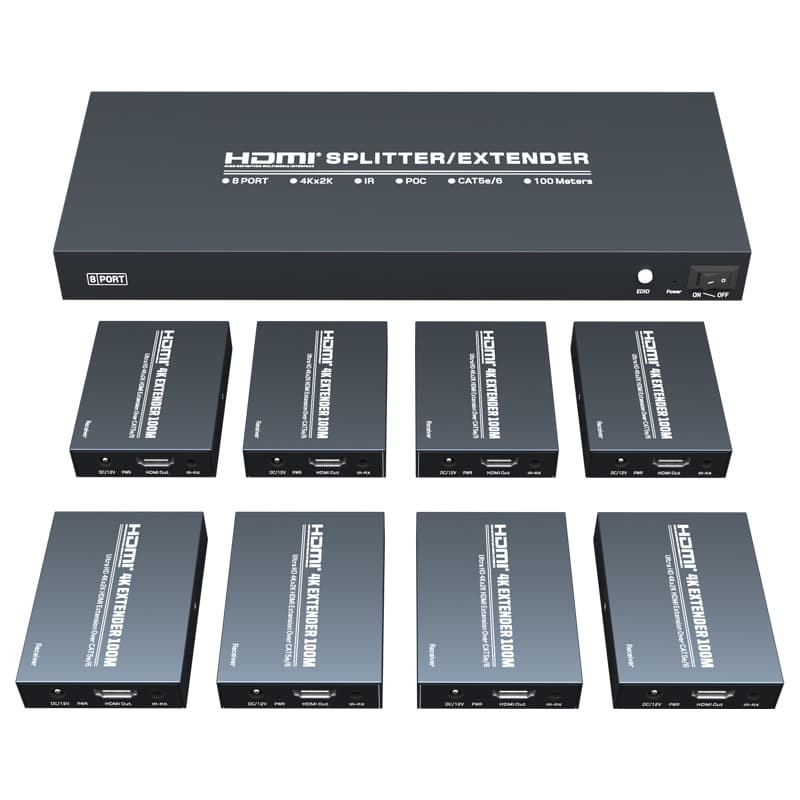

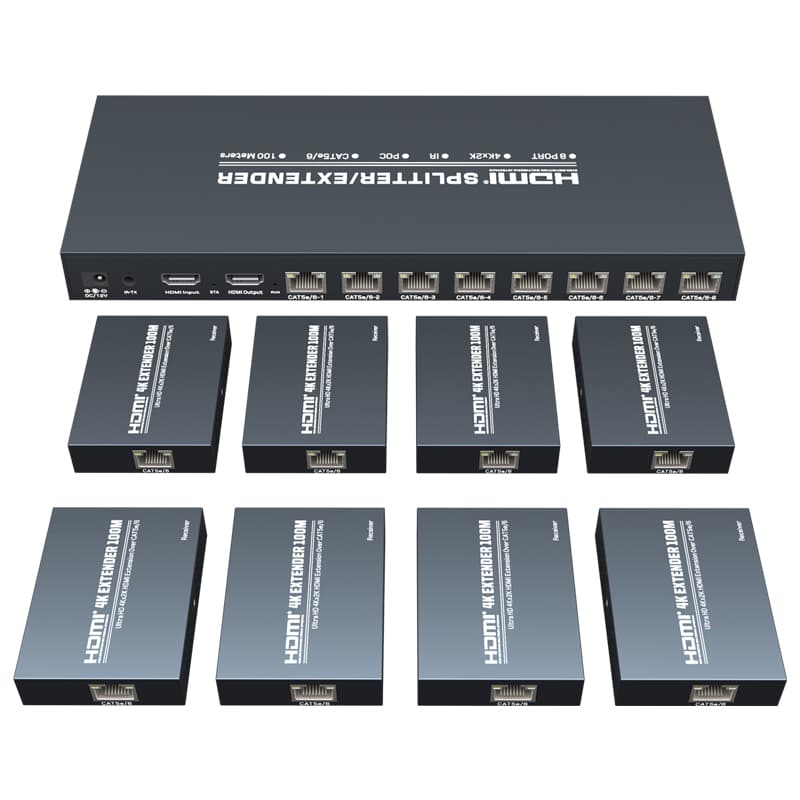

The HDMI splitter extender is a product for splitting and extending your HDMI signal over long distances to a compatible display. It uses a single CAT5e/6 or higher-level cable up to 100 meters instead of an HDMI cable to transmit high-definition signals. The HDMI signal is distributed from source devices such as DVD players, Satellite Receivers, Set-Top Boxes, DV Cameras, AV Receivers, and other HDMI-enabled devices to one or more high-definition display devices like HDTVs and HDMI Flat Panel Displays.

2.0 Features:

1. One HDMI input signal splits into multiple HDMI outputs over CAT5e/6 RJ45 cable.

2. Transmission distance: CAT5e/6 or higher-level RJ45 cable up to 100 meters.

3. Supports HDMI 1.4 and HDCP 1.4 protocol.

4. Video format support: 4K@30Hz, 1080p, 720p, 576p, 480p.

5. Audio format support: DTS-HD/Dolby-TrueHD/LPCM 7.1/DTS/Dolby-AC3/DSD.

6. Transmitter supports HDMI loopout.

7. Support EDID select.

8. Support POC (Power Over Cable) and 20-60KHz IR passthrough.

9. Easy to install, plug and play, no drivers needed.

10. DC/12V power supply.

3.0 Packaging Accessories:

When first unpacking your extender, please check to see if the following items are included:

1. HDMI Splitter/Extender Transmitter ---------------------- 1 PC

2. HDMI Receiver ---------------------------------------------- 2/4/8 PCs (Please specify the exact quantity)

3. IR-TX Cable ----------------------------------------------- 1 PC

4. IR-RX Cable ----------------------------------------------- 2/4/8 PCs (Matches receiver quantity)

5. Power Supply ----------------------------------------------- 1 PC

6. User Manual ------------------------------------------------ 1 PC
