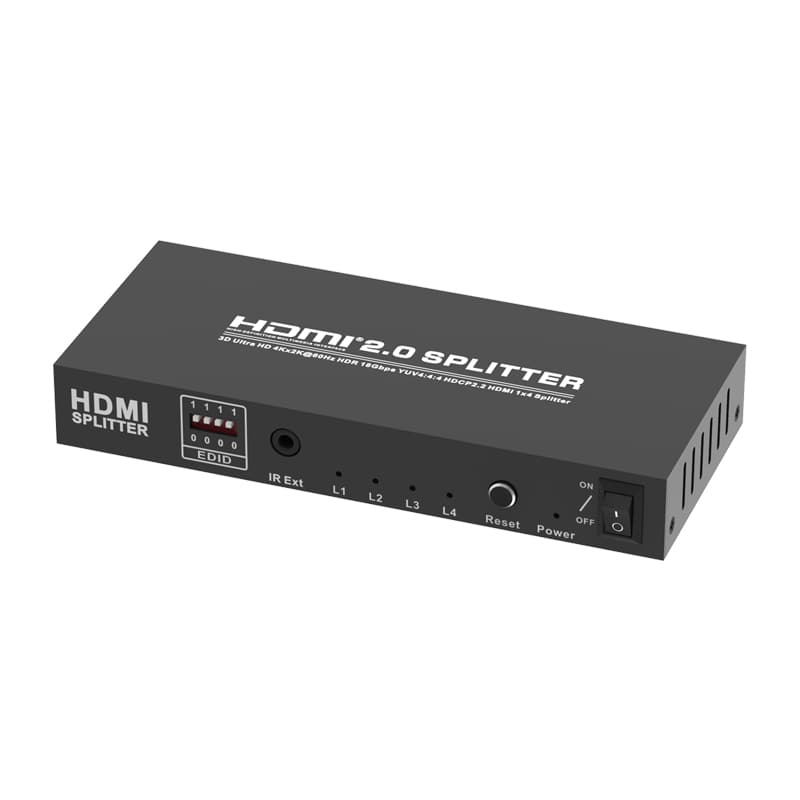

1.0 Introduction:

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

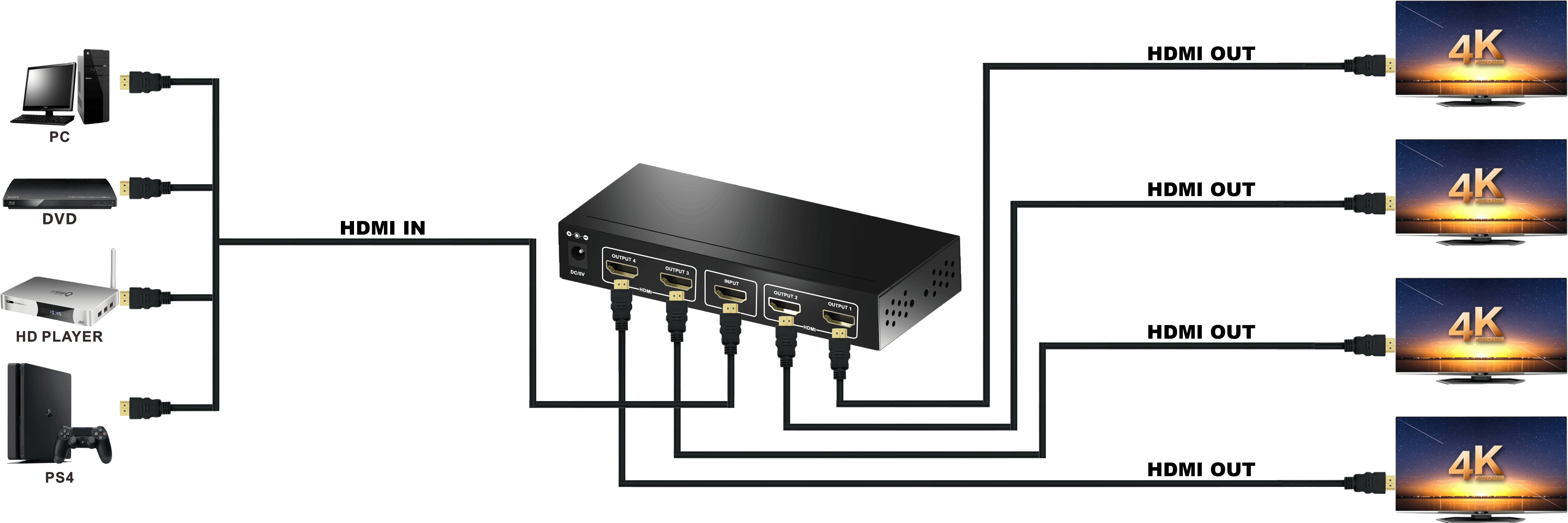

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

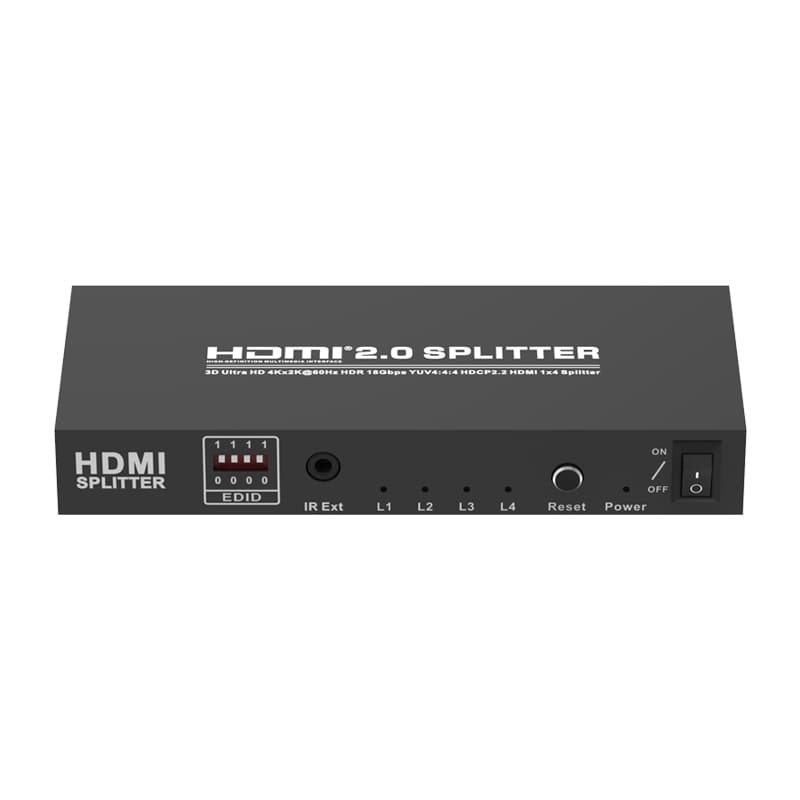

2.0 Features:

1.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.

2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,

and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3.Support 3D frame sequential video format up to 1080p@60.

4.Support high resolution VESA mode video format up to QSXGA@60Hz.

5.Support HDR and 18Gbps Signal Speed.

6.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

7.Compatible with DVI by using HDMI to DVI adapter.

8.Extend the transmission distance and improve transmission signal.

9.Metal casing design and overall shielding without signal interference.

10.Power supply (please refer to technical parameter).

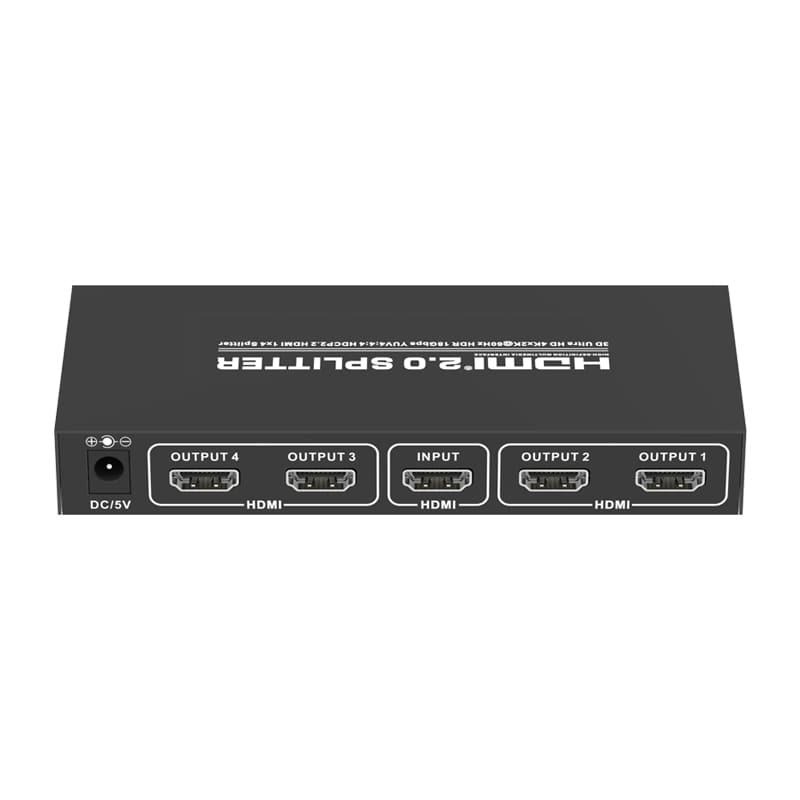

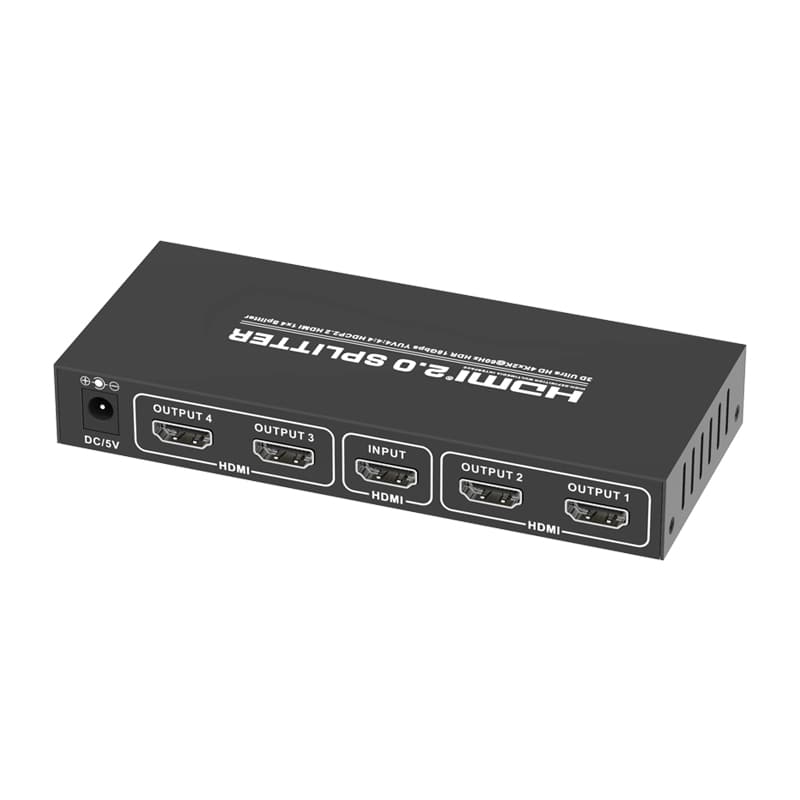

4.0 Technical parameters

HDMI Source Input Port-------------------------------------------------------------------1

Display Device Output Port---------------------------------------------------------------4

Source Port Connector----------------------------------------------------19 PIN HDMI

Display Device Port Connector------------------------------------------19 PIN HDMI

HDCP Compliant------------------------------------------------------------------------YES

Single Link Range--------------------------------------------------------------4096x2160

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------48 bit

HDMI Version-----------------------------------------------------------------------HDMI2.0

Bandwidth---------------------------------------------------------------------Up to 600Mhz

Signal Speed-----------------------------------------------------------------Up to 18Gbps

The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M

The length of output cable-----------------------------------------------------------≤10M

The cable standard-----------------------------------------------------28AWG HDMI2.0

Vertical Frequency Range------------------------------------------------------------60Hz

Power Consumption(max.)-------------------------------------------------------3.5Watts

Operation Temperature-----------------------------------------------------------0℃-70℃

Working Voltage-----------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 2A

Net Weight-------------------------------------------------------------------------------0.39Kg

Dimension: L*W*H(mm)---------------------------------------------------------150x64x25

Packaging accessories:

1. HDMI 1×4 Splitter------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. User Manual-------------------------------------------------------1 Pcs
