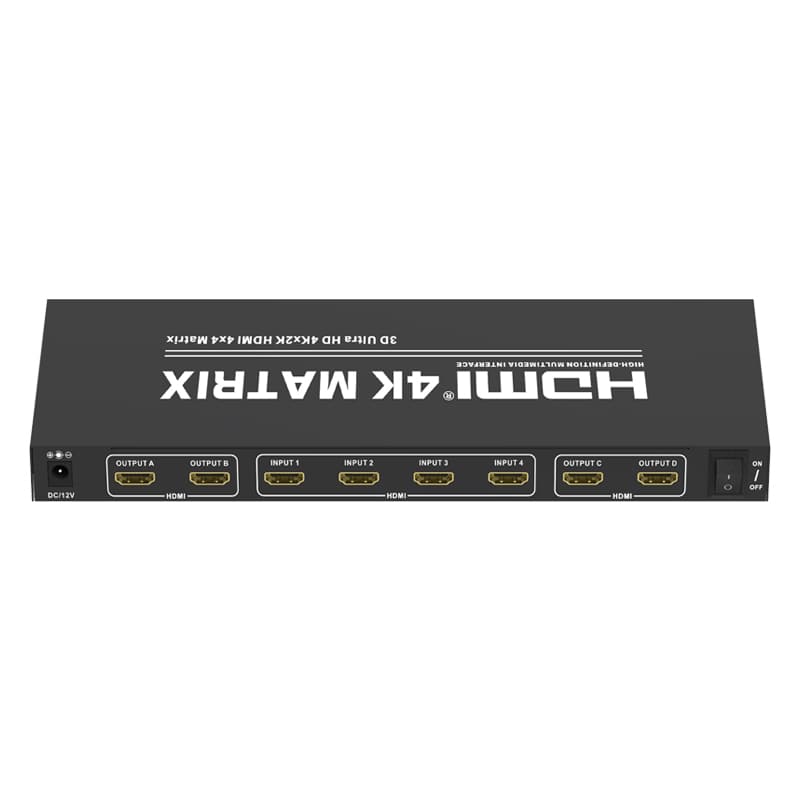

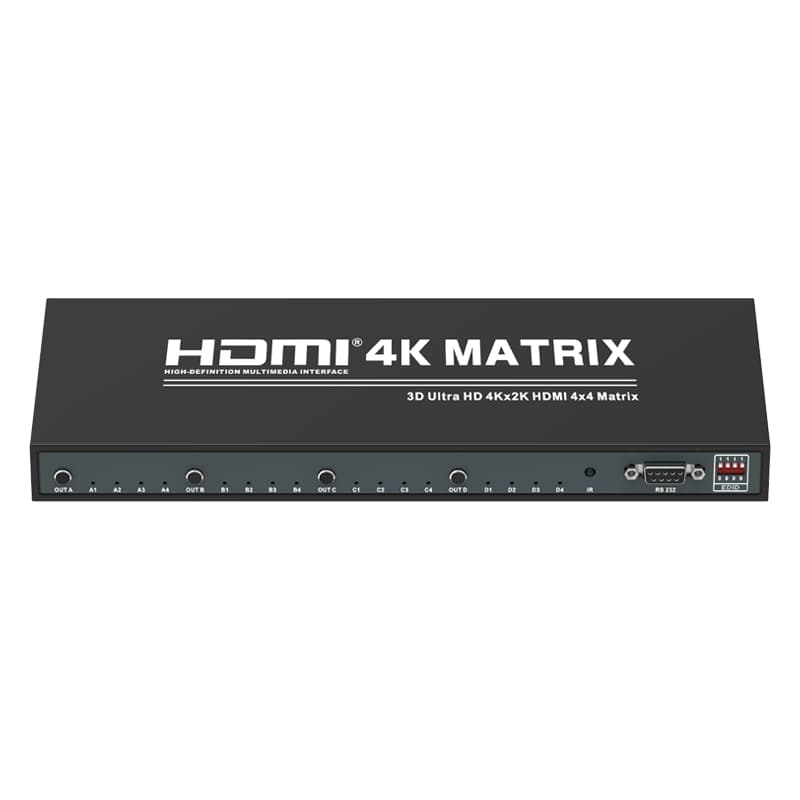

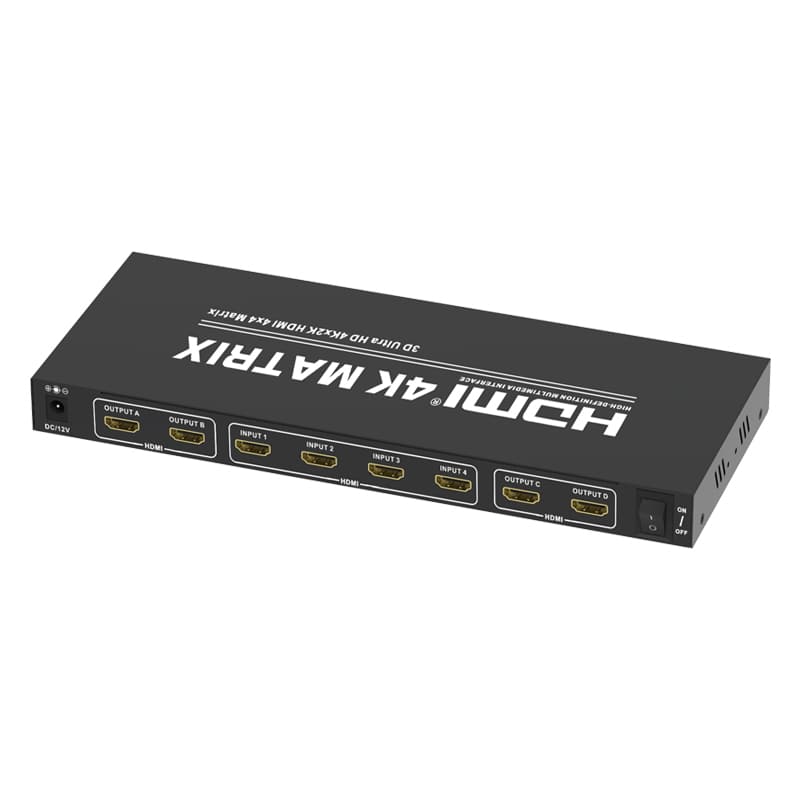

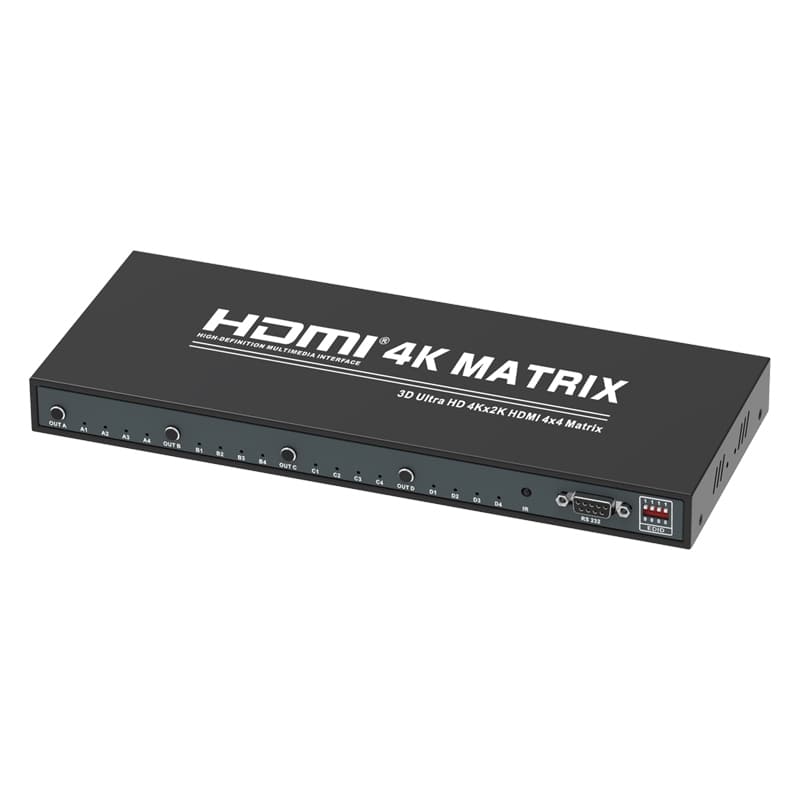

MZ2044A 4K@30Hz 4x4 HDMI Matrix HDMI1.4

Effortlessly manage 4 HDMI sources to 4 displays with the T-2044A 4x4 Matrix. Supports 4K@30Hz, seamless switching, and reliable performance for AV installations, control centers, and multi-display setups.
Description Package Information Inquiry

FEATURES

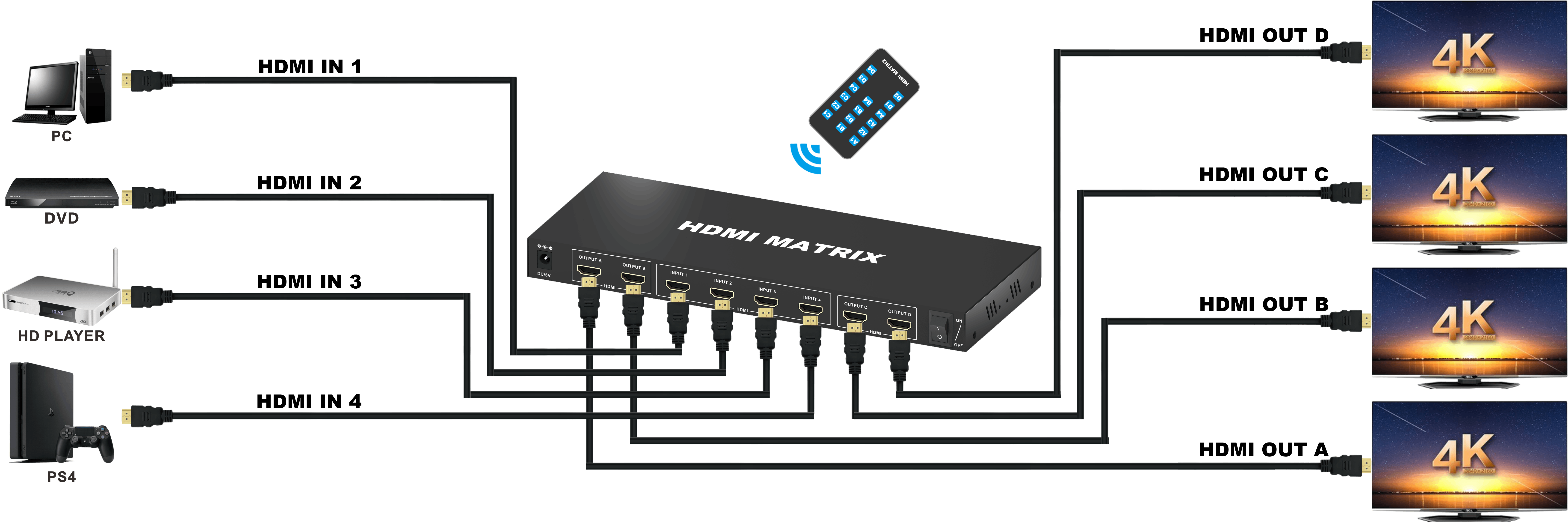

1.When its 4 input ports are separately connected to 4 signal sources

with HDMI cables, the HDMI Matrix automatically recognizes the last

connected port and switches its input signal to 4 displays.

2.The needed input signal sources must be selected by using remote

control or pushing button in order to make 4 displays showing 4 different

signals.

3.Support HDMI 1.4,HDCP1.4;

4. Support high resolutions up to 4Kx2K, including 480i/p, 576i/p,

720i/p, 1080i and 1080p,3840x2160@25/30Hz.

5. Switch easily between any 4 HDMI sources.

6. The 4 displays can get the same or different signals without mutual

interaction.

7. Connected easily to dual-channel audio receiver device.

8. Support DVI device with DVI to HDMI adapter.

9. Plug-and-play and no need of setting.

10. Metal casing design and overall shielding without signal interference.

11. Use remote control or push button to freely select input source.

12. LED indicates signal /power mode.



PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 4X4 Matrix -----------------------1PCS

2.DC 12V Power adapter----------------1PCS

3.Remote control---------------------------1PCS

4.User Manual------------------------------1PCS



TECHNICAL PARAMETERS

HDMI Source Input Port

4

Display Device Output Port

4

Source Port Connector

HDMI 19PIN

Display Device Port Connector

HDMI 19PIN

HDCP Compliant

YES

Single Link Range

3840x2160

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 Volts P-P(TTL)

Deep Color

36bit

HDMI Version

HDMI1.4

Bandwidth

Up to 340Mhz

Signal Speed

Up to 10.2Gbps

The length of  input cable

PS315MBLUE DVD15M

The length of  output cable

25M

The cable standard

26AWG HDMI1.4

Vertical Frequency Range

30Hz

Power Consumption(max.)

15Watts

Operation Temperature

0-70

Working Voltage

DC 12V

Power Adaptor

12V 2A

Net Weight

0.8kg

Dimension: L*W*H(mm)

277x110x25



Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.



PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 4X4 Matrix -----------------------1PCS

2.DC 12V Power adapter----------------1PCS

3.Remote control---------------------------1PCS

4.User Manual------------------------------1PCS
