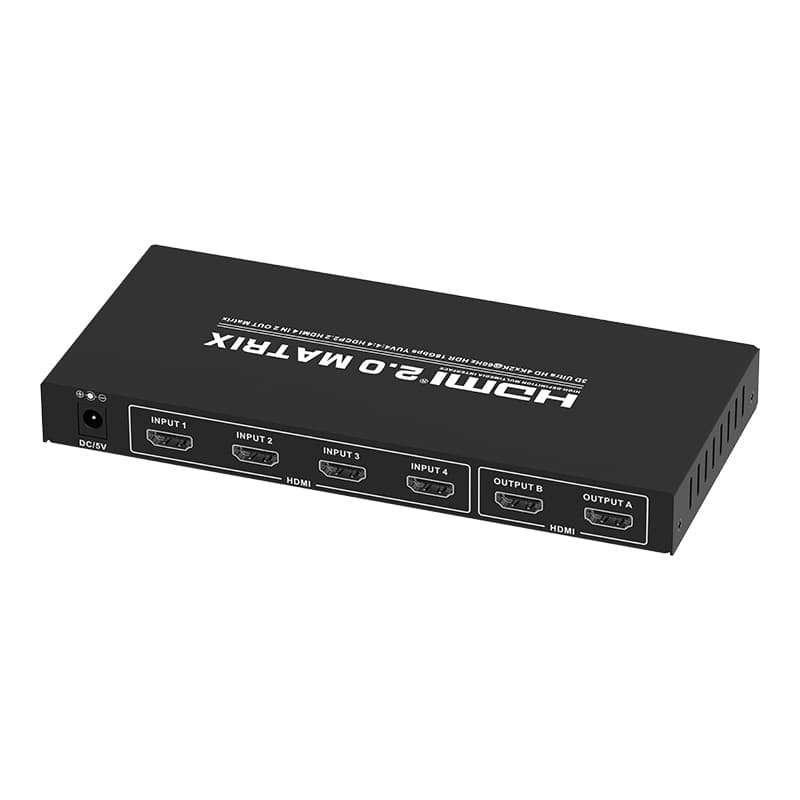

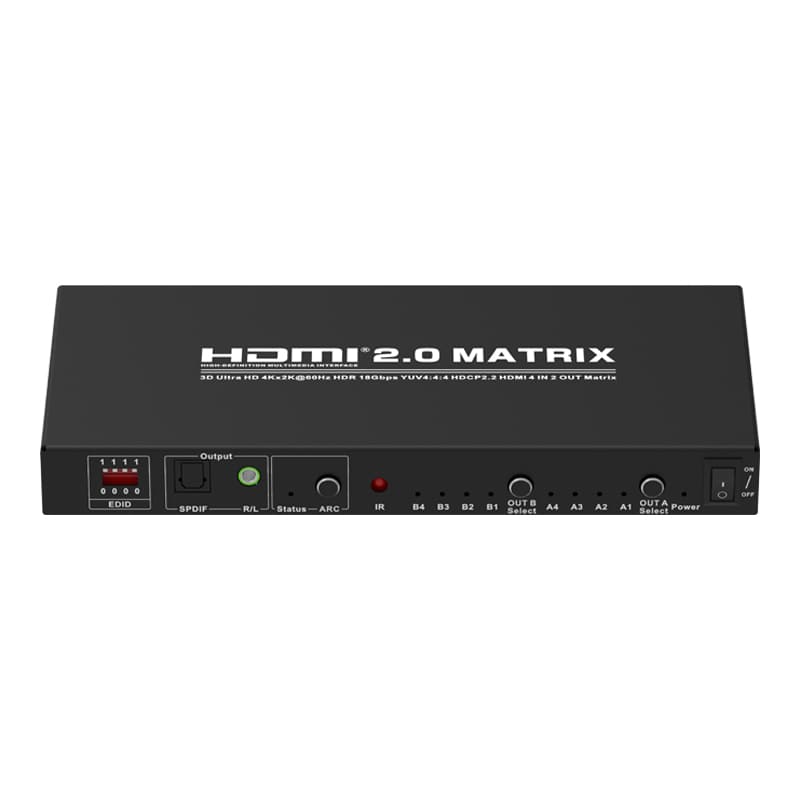

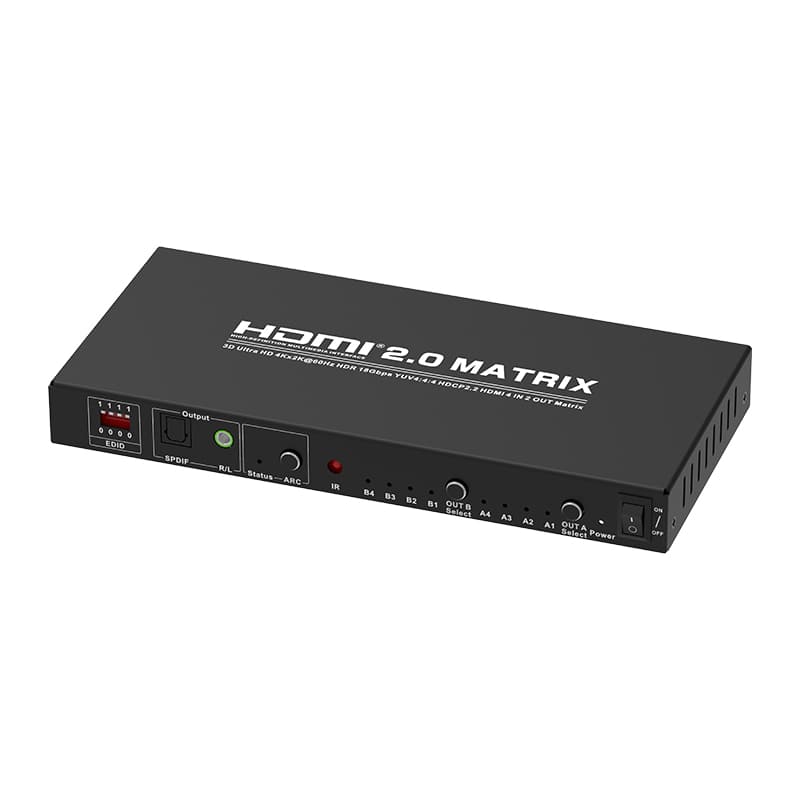

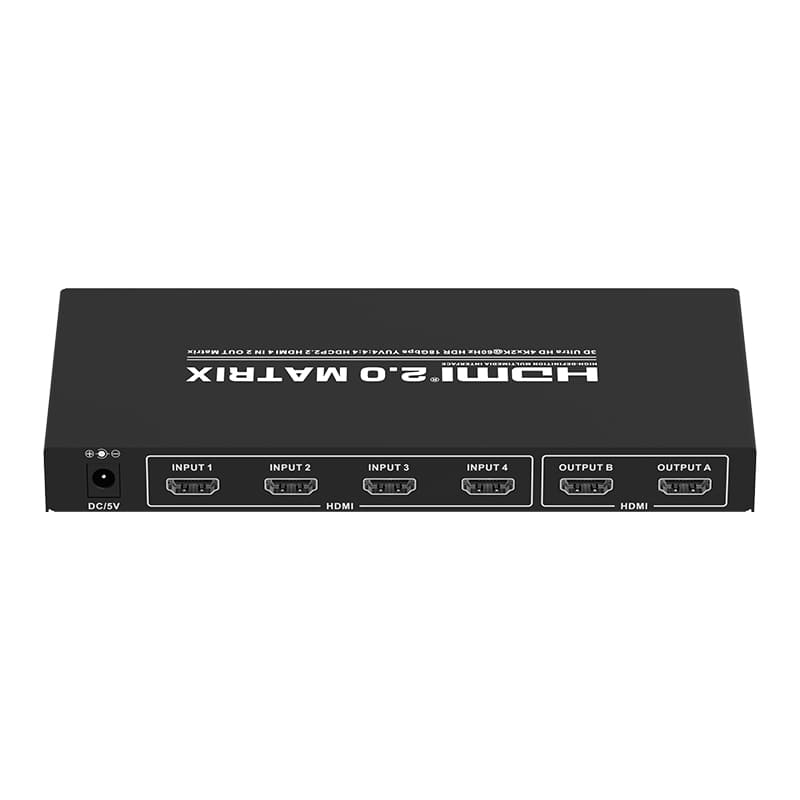

MZ2042A 4K@30Hz 4x2 HDMI Matrix 3D Ultra HD HDMI1.4

MZ2042A 4x2 HDMI Matrix Switcher routes four HDMI inputs to two displays at 4K@30Hz. With HDCP 1.4 and EDID, it’s ideal for concerts, outdoor advertising, or engineering projects, ensuring versatile AV control.
Description Package Information Inquiry


FEATURES

1.When its 4 input ports are separately connected to 4 signal sources

with HDMI cables, the HDMI Matrix automatically recognizes the last

connected port and switches its input signal to 2 displays.

2.The needed input signal sources must be selected by using remote

control or pushing button in order to make 2 displays showing 2 different

signals.

3.Support HDMI 1.4,HDCP1.4;

4. Support high resolutions up to 4Kx2K, including 480i/p, 576i/p,

720i/p, 1080i and 1080p,3840x2160@25/30Hz.

5. Switch easily between any 4 HDMI sources.

6. Support ARC and Audio Extractor(Output A);

7. The 2 displays can get the same or different signals without mutual

interaction.

8. Connected easily to dual-channel audio receiver device.

9. Support DVI device with DVI to HDMI adapter.

10. Plug-and-play and no need of setting.

11. Metal casing design and overall shielding without signal interference.

12. Use remote control or push button to freely select input source.

13. LED indicates signal /power mode.



PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 4X2 Matrix ---------------------1PCS

2.DC 5V Power adapter----------------1PCS

3.Remote control-------------------------1PCS

4.User Manual----------------------------1PCS



TECHNICAL PARAMETERS

HDMI Source Input Port

4

Display Device Output Port

2

Audio Output port

SPDIFx1,Stereox1

Source Port Connector

HDMI 19PIN

Display Device Port Connector

HDMI 19PIN

HDCP Compliant

YES

Single Link Range

3840x2160

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 Volts P-P(TTL)

Deep Color

36bit

HDMI Version

HDMI1.4

Bandwidth

Up to 340Mhz

Signal Speed

Up to 10.2Gbps

The length of  input cable

PS315MBLUE DVD15M

The length of  output cable

25M

The cable standard

26AWG HDMI1.4

Vertical Frequency Range

30Hz

Power Consumption(max.)

6.5Watts

Operation Temperature

0-70

Working Voltage

DC 5V

Power Adaptor

5V 2A

Net Weight

0.6kg

Dimension: L*W*H(mm)

200x94x21.5

Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.
