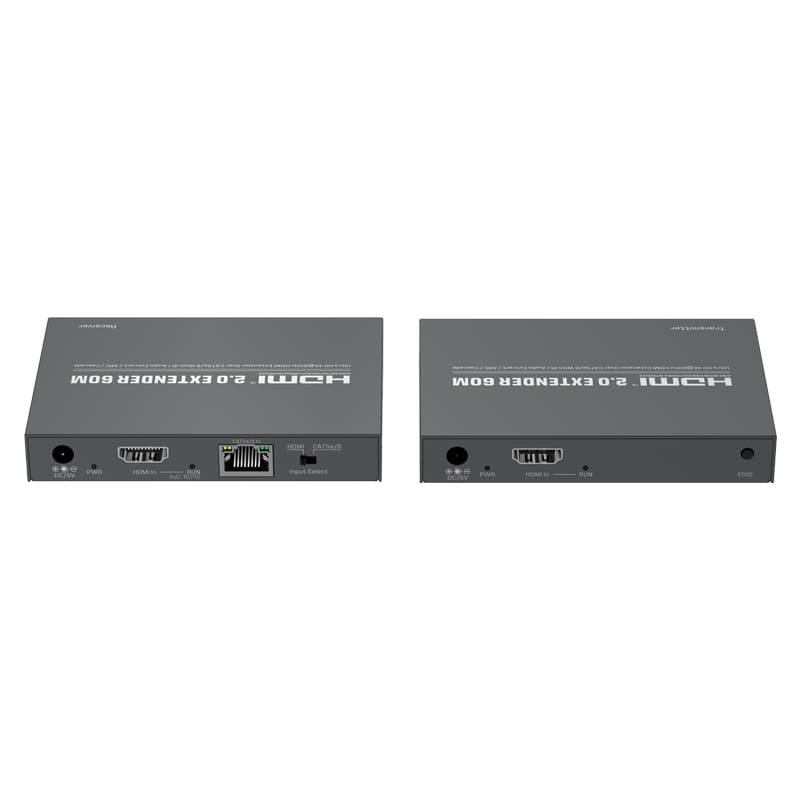

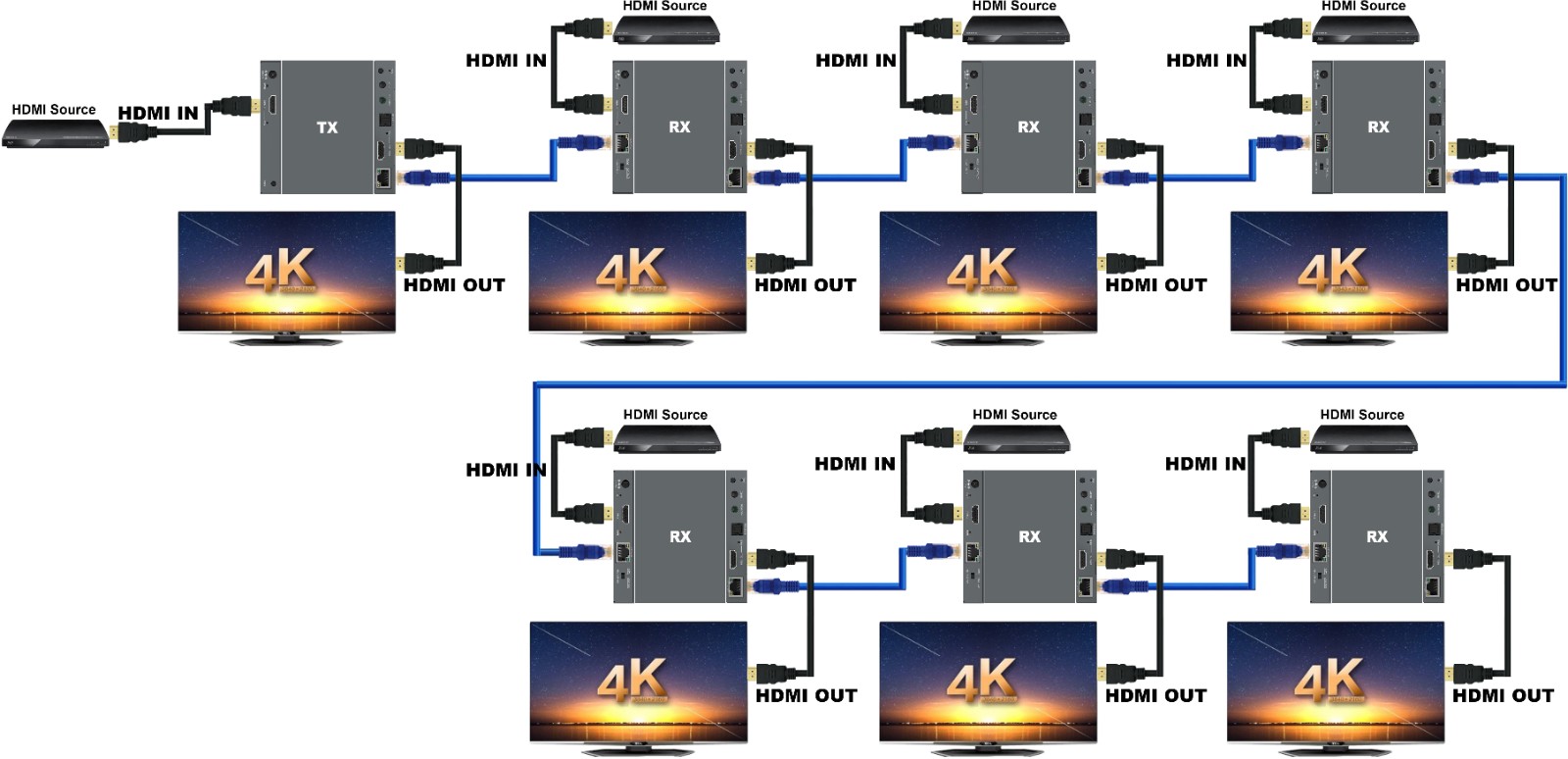

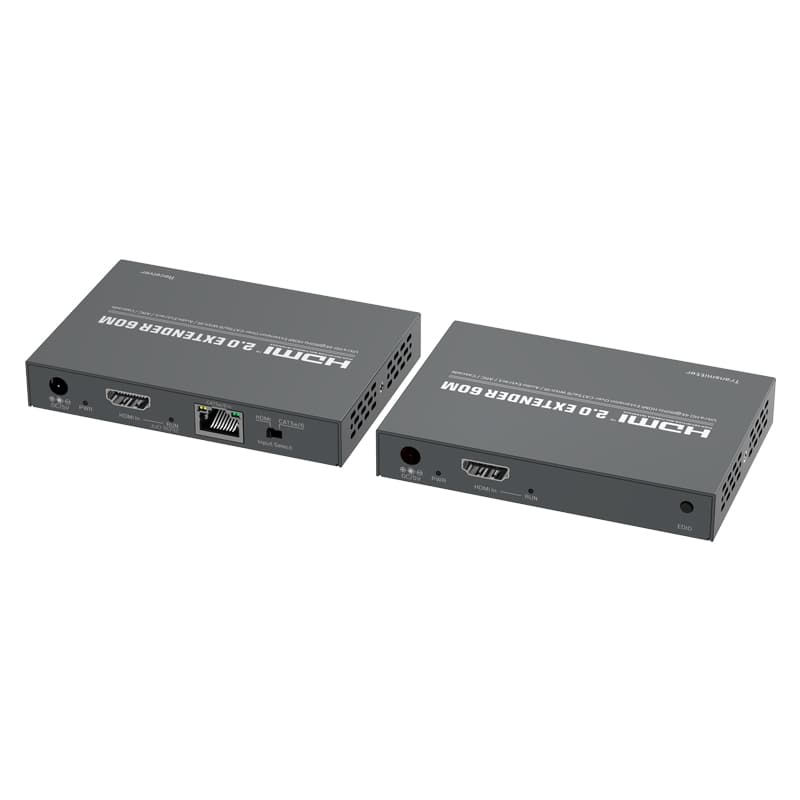

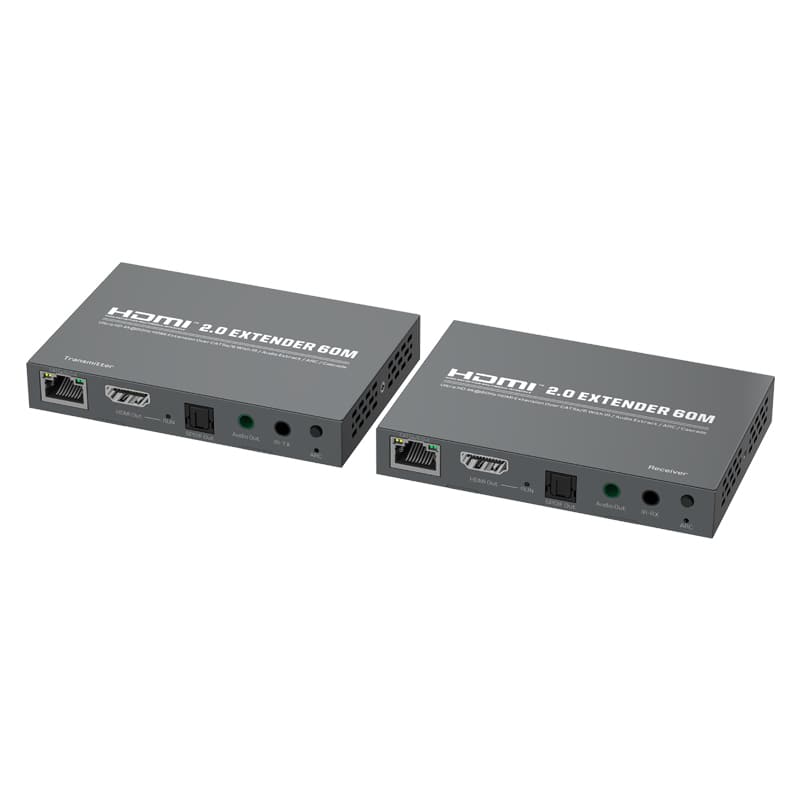

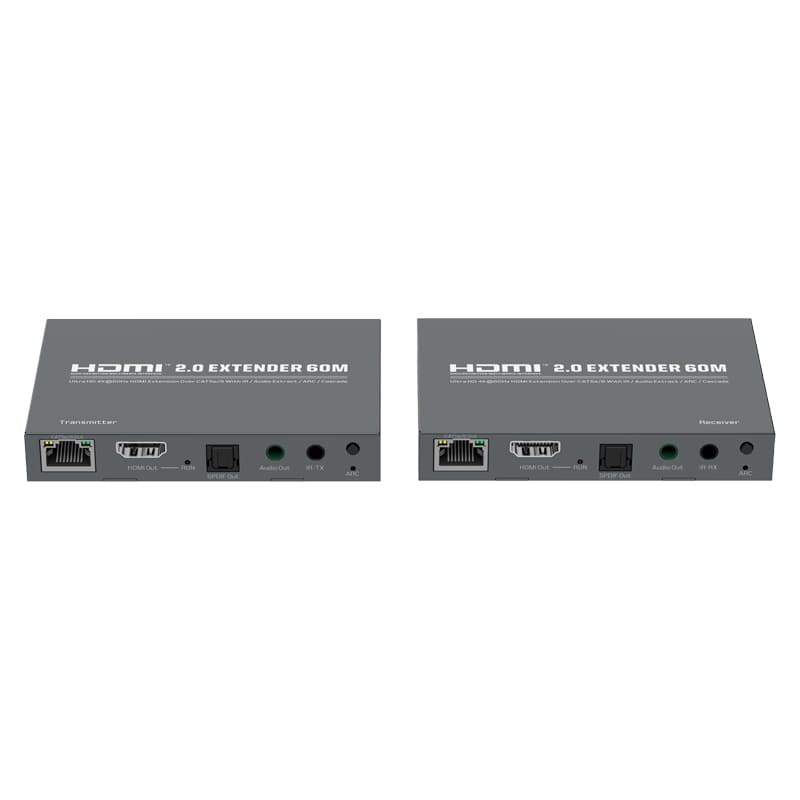

4K@60Hz HDMI Extender 60m via CAT5e/6 loopout IR ARC cascade max 253 receivers MZ505SE
Features
Transmission distance: Up to 60m using CAT5e or higher-level cable.
Supports HDMI 2.0 and HDCP 2.2 protocols.
Video input/output resolutions: 4Kx2K@60Hz, 1080p, 720p, 576p, 480p.
Supports 3D frame sequential video format up to 1080p@60Hz.
Audio formats: DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD.

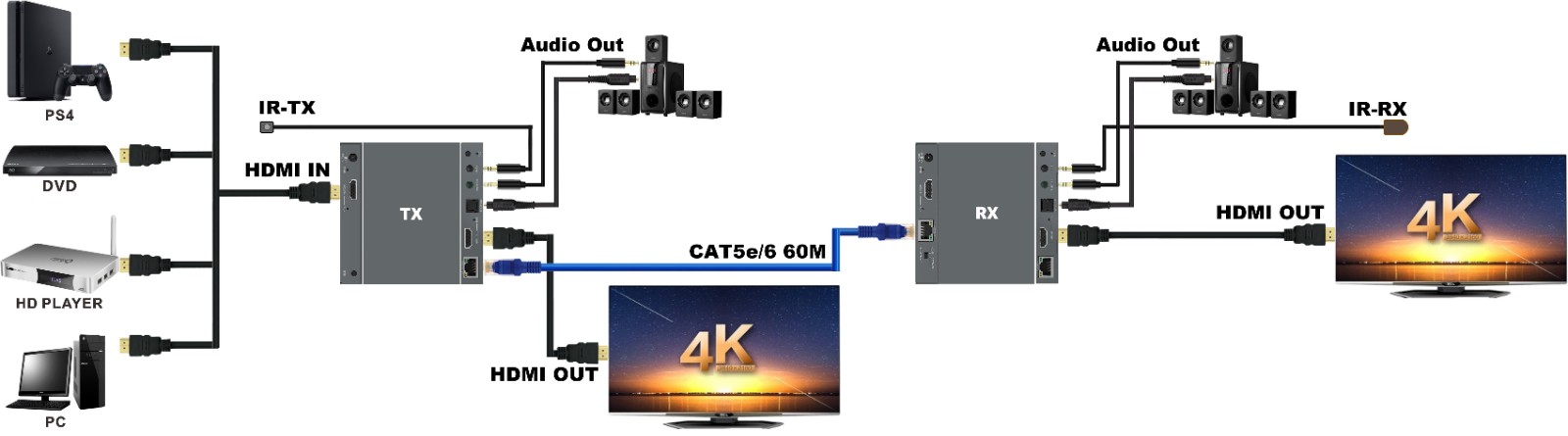

Transmitter supports HDMI loopout.
Supports EDID selection.
Supports 20-60KHz IR passthrough.
Supports POC (Power over Cable).
DC 12V power supply.
Easy to install, plug-and-play, no drivers needed.
Package Contents
When unpacking your extender, please check for the following items:
HDMI Transmitter: 1 PCS
HDMI Receiver: 1 PCS
IR-TX Cable: 1 PCS
IR-RX Cable: 1 PCS
Power Supply: 1 PCS
User Manual: 1 PCS
Technical Parameters
Length of CAT5e/6 cable between Transmitter and Receiver: Up to 60 meters
Supported video resolutions: 4Kx2K@60Hz, 1080p, 720p, 576p, 480p
Supported audio formats: DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Video input signal: 0.5-1.5V p-p
DDC output signal: 5V p-p (TTL)
Input/Output HDMI cable length: ≤20m (26AWG HDMI standard cable)
Max working current: 920mA
Power adapter format: Input: AC 100V-240V (50Hz/60Hz); Output: DC 12V/1A
Operating temperature range: -40 to +85°C
Operating humidity range: 5 to 90% RH (No condensation)
Dimensions (L x W x H): 78.5 x 58 x 17 mm
