Features

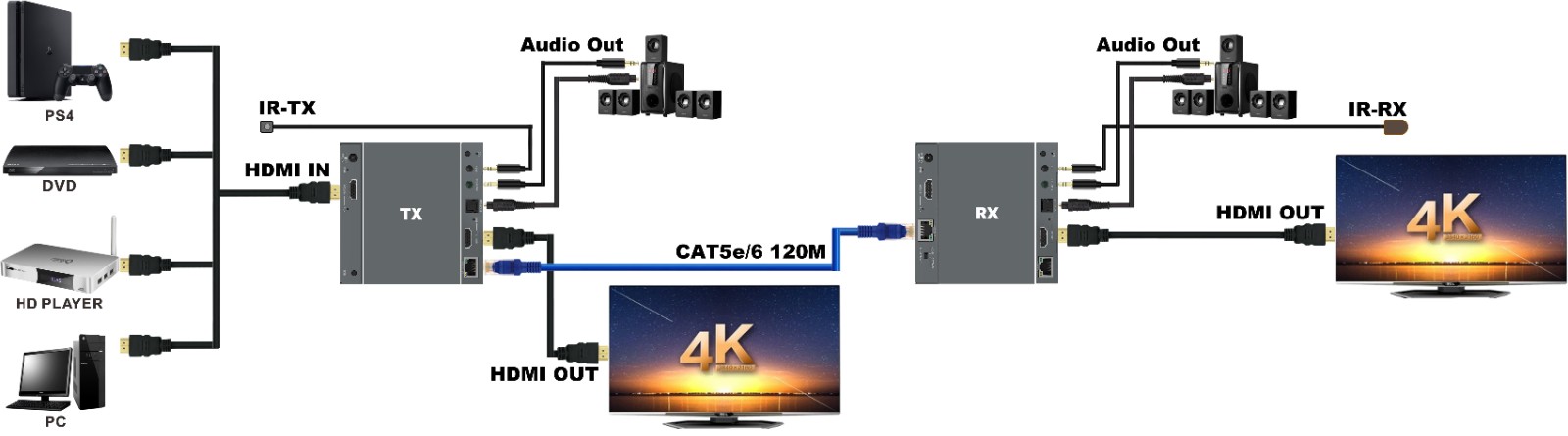

1. Transmission distance: Up to 120m using CAT5e or higher-level cable.

2. Supports HDMI 1.4 and HDCP 1.4 protocols.

3. Video input/output resolutions: 4Kx2K@30Hz, 1080p, 720p, 576p, 480p.

4. Supports 3D frame sequential video format up to 1080p@60Hz.

5. Audio formats: DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD.

6. Transmitter and receiver support HDMI loopout.

7. Each transmitter and receiver supports independent audio extraction and ARC.

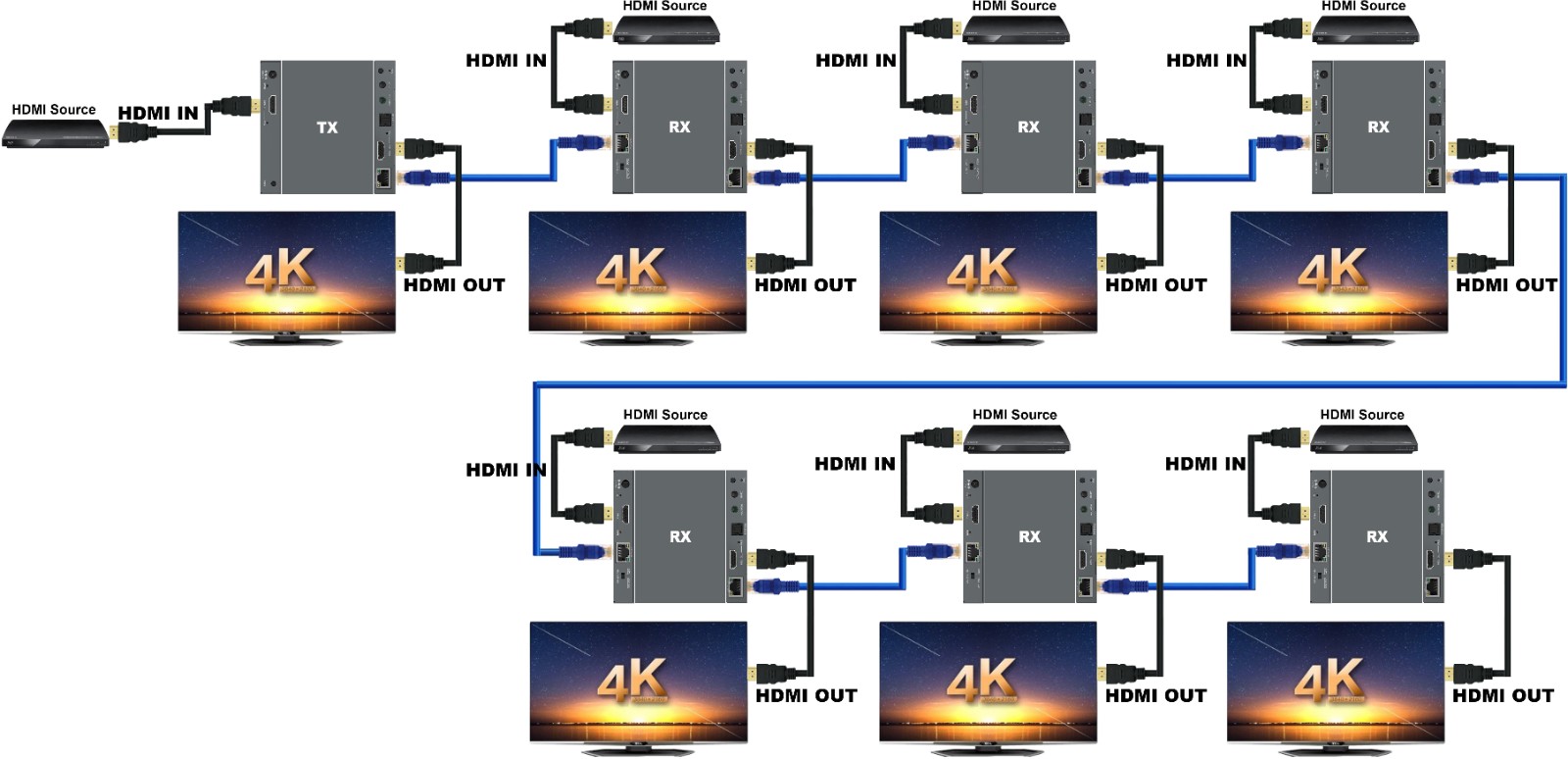

8. Receiver supports 1 HDMI input, 1 RJ45 input, and output supports cascade.

9. Supports EDID selection.

10. Supports 20-60KHz IR passthrough.

11. Easy to install, plug-and-play, no drivers needed.

Package Contents

When unpacking your extender, please check for the following items:

• HDMI Transmitter: 1 PCS

• HDMI Receiver: 1 PCS

• IR-TX Cable: 1 PCS

• IR-RX Cable: 1 PCS

• Power Supply: 2 PCS

• User Manual: 1 PCS

Technical Parameters

• Length of CAT5e/6 cable between Transmitter and Receiver: Up to 120 meters

• Supported video resolutions: 4Kx2K@30Hz, 1080p, 720p, 576p, 480p

• Supported audio formats: DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD

• Max bandwidth: 340MHz

• Max baud rate: 10.2Gbps

• Video input signal: 5-15V p-p

• DDC output signal: 5V p-p (TTL)

• Input/Output HDMI cable length: ≤20m (26AWG HDMI standard cable)

• Max working current: 800mA

• Power adapter format: Input: AC 100V-240V (50Hz/60Hz); Output: DC 5V/1A

• Operating temperature range: -40 to +85°C

• Operating humidity range: 5 to 90% RH (No condensation)

• Dimensions (L x W x H): 78.5 x 58 x 17 mm

Package Contents

When unpacking your extender, please check for the following items:

• HDMI Transmitter: 1 PCS

• HDMI Receiver: 1 PCS

• IR-TX Cable: 1 PCS

• IR-RX Cable: 1 PCS

• Power Supply: 2 PCS

• User Manual: 1 PCS
