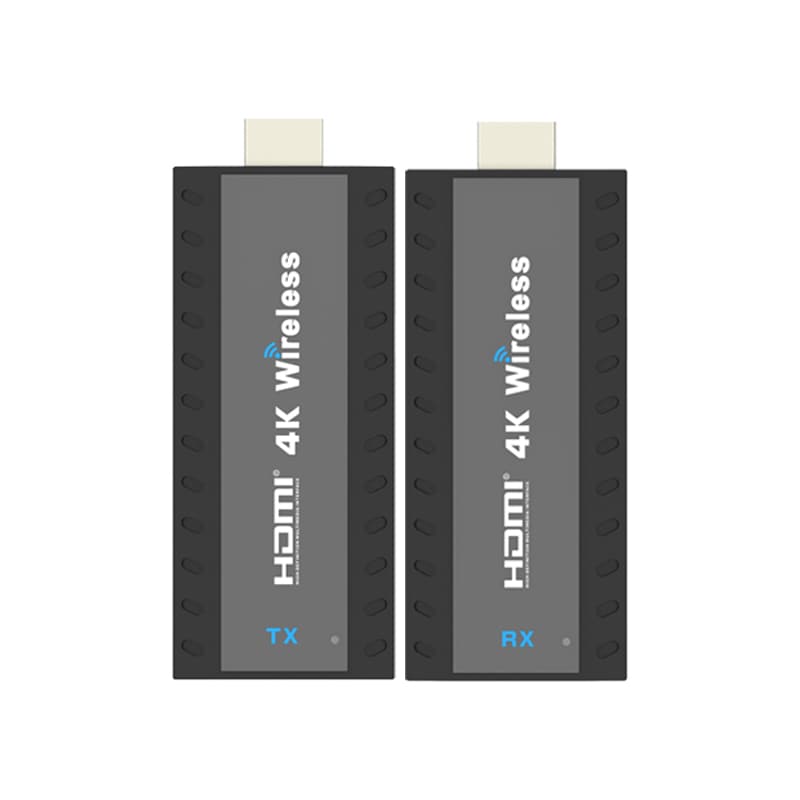

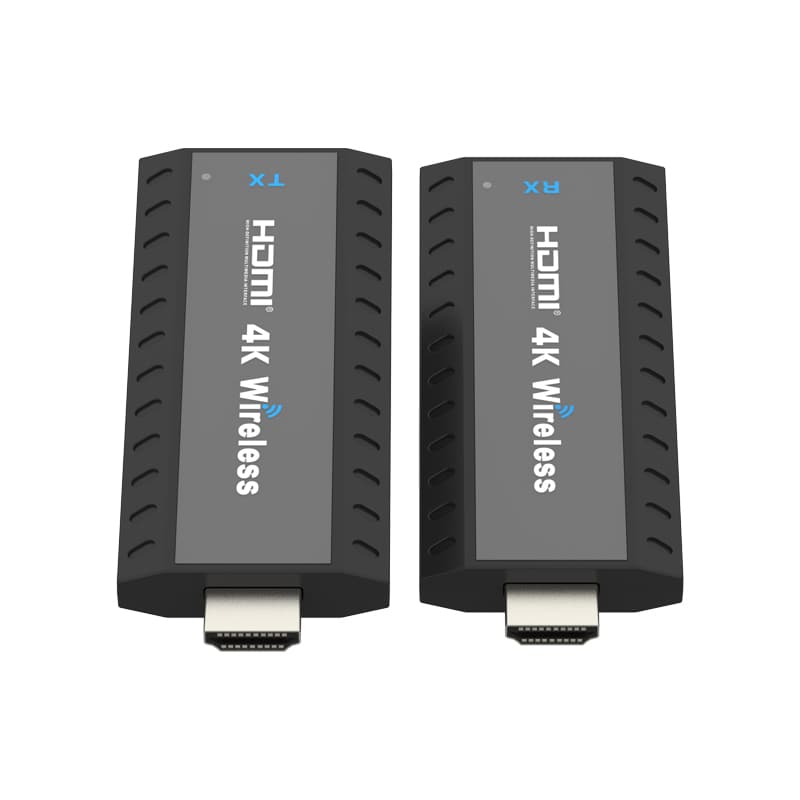

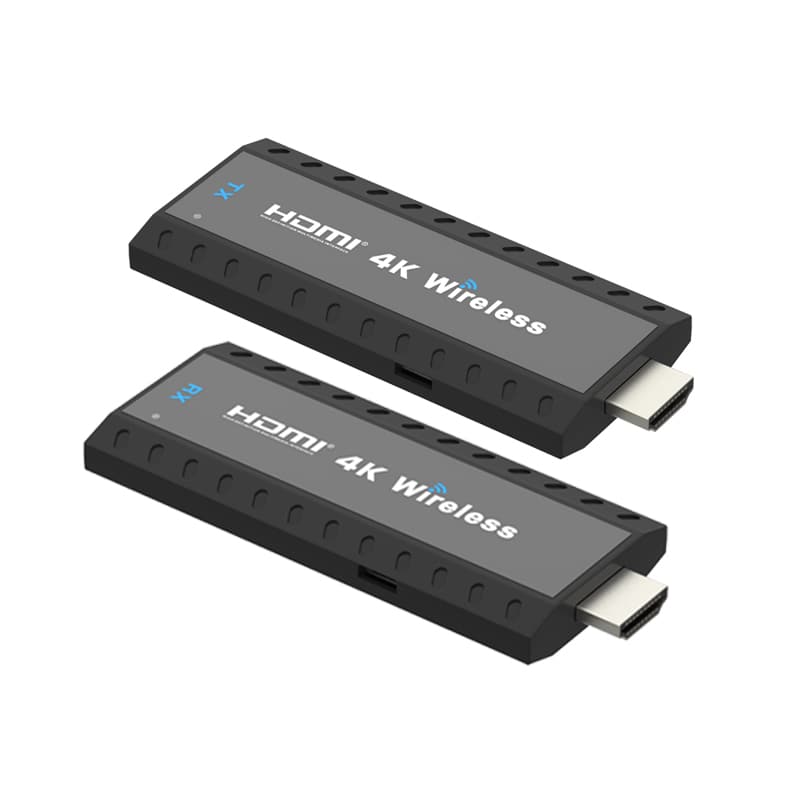

4K@30Hz 50m H.265 Wireless HDMI Extender MZ802A

MZ802A is a cutting-edge 4K@30Hz H.265 Wireless HDMI Extender designed to transmit high-resolution video up to 50 meters without cables. Its advanced H.265 compression ensures efficient and stable signal delivery, making it perfect for diverse applications from home entertainment systems and corporate presentations to dynamic digital signage. Experience clear, vibrant visuals effortlessly.
Description Package Information Inquiry

1.0 Introduction:

HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.



2.0 Features:

1. HDMI video and audio transmission via wireless WIFI, up to 50 meters;

2. HDMI 1.4 compatible,In accordance with standard HDCP1.4,high-bandwidth digital content protection technology;

4. HD video signal resolution up to 4Kx2K@30Hz;

5. Special format is to compress and decompress video,effectively improve

the transfer efficiency,to ensure that the playback fluency;

6. Able to automatically identify and configure a variety of display mode;

7. Built-in automatic balance system, the picture is fluent, clear and stable;

8. The built-in ESD electrostatic protection circuit, comprehensive security

protection system;

9. Simple and convenient installation, plug and play, do not need to set up.



3.0 Packaging accessories:

1. HDMI transmitter------------------------------------------------1 PCS

2. HDMI receiver ---------------------------------------------------1 PCS

3.HDMI Cable -------------------------------------------------------2 PCS

4. USB Power Cable-----------------------------------------------2 PCS

5. User Manual------------------------------------------------------1 PCS



4.0 Technical parameters:

Parameter

Description

Video

Standards

HDMI 1.4; HDCP 1.4

Compressed format

H.265

Maximum pixel clock

340MHz

Maximum data rate

10.2Gbps

Resolution

Max: 4Kx2K@30Hz

Connector

HDMI-AM

Impedance

100Ω

Recommend HDMI maximum input/output range

Less than 5 meters

WIFI

Radio Frequency power

13dbm

Wireless standards

802.11ac

signal direction

Unidirectional

Radio frequency

5.8GHz

Transmission distance

50M(Max)

Other

Power

DC 5V

Power dissipation

MAX 5W

Temperature

Operating-5℃ ~ +70℃

Humidity

Operating5% ~ 90%

Size

90*39*10mm

Warranty

1 year free warranty

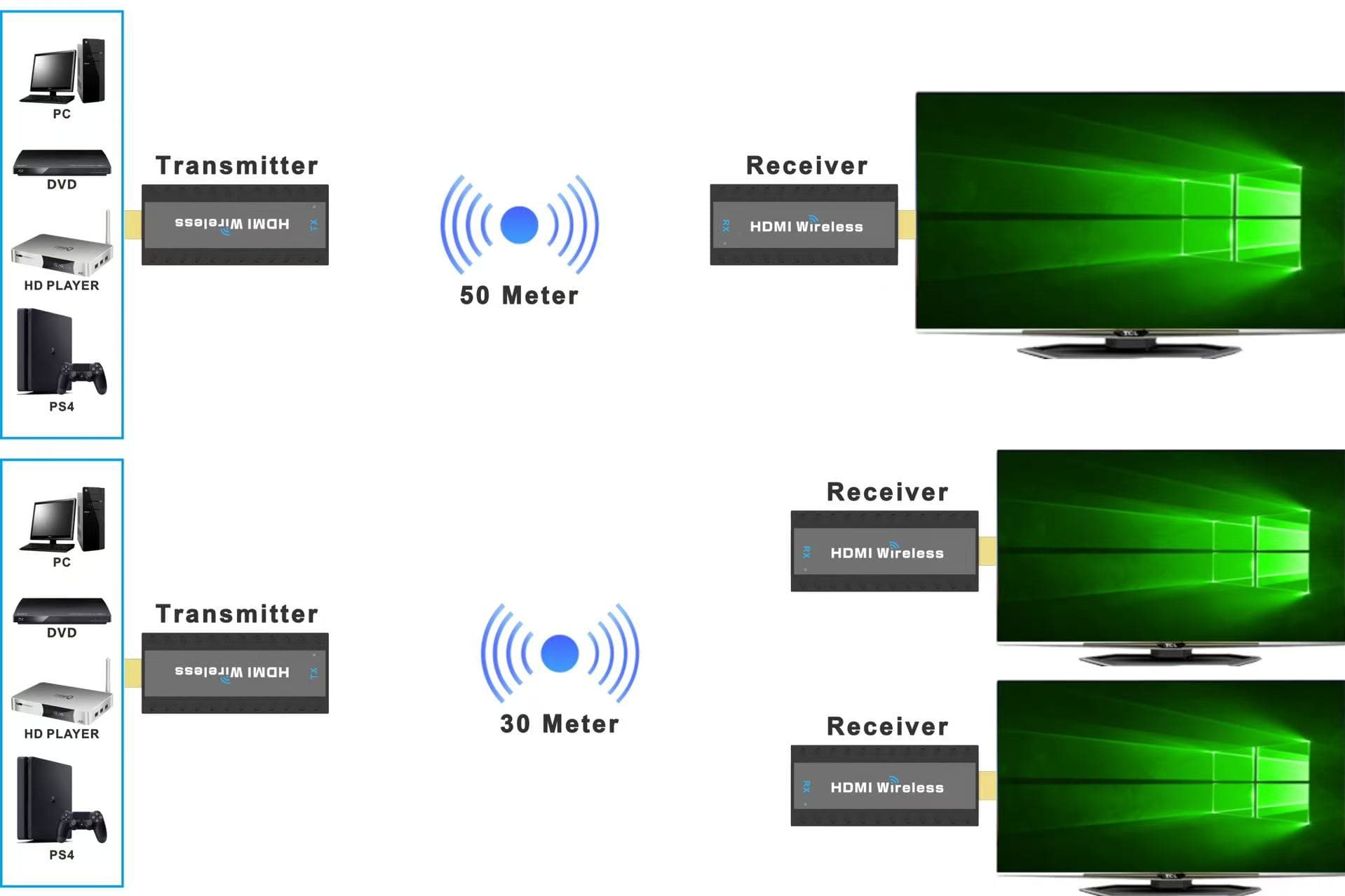

MZ-802A  1 MZo 2 MZo 1 connecMZion.jpg

Packaging accessories:

1. HDMI transmitter------------------------------------------------1 PCS

2. HDMI receiver ---------------------------------------------------1 PCS

3.HDMI Cable -------------------------------------------------------2 PCS

4USB Power Cable-----------------------------------------------2 PCS

5. User Manual------------------------------------------------------1 PCS
