1.0 INTRODUCTION

The HDMI Extender over single fiber is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing fiber cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over one fiber extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 20000 meters outside using the HDMI extender.

2.0 FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Installs in minutes,No loss of quality.

3.0 PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter------------------1 PCS

2.HDMI Receiver---------------------1 PCS

3.IR-TX ---------------------------------1 PCS

4.IR-RX ---------------------------------1 PCS

5.Power supply------------------------2 PCS

6.User manual-------------------------1 PCS

4.0 SPECIFICATION

HDMI Version-----------------------------------------------------------------HDMI1.3a

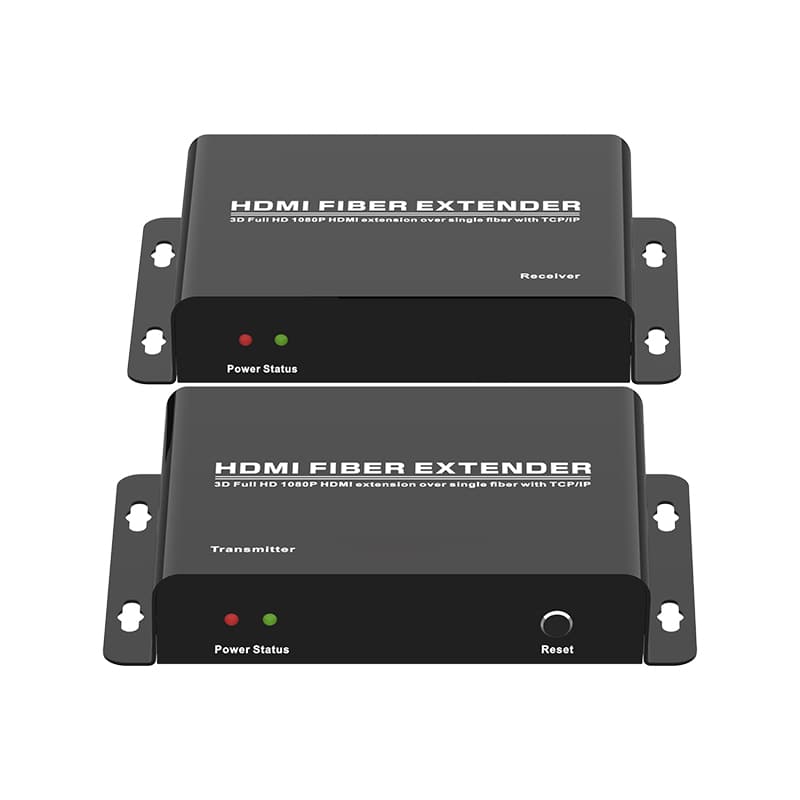

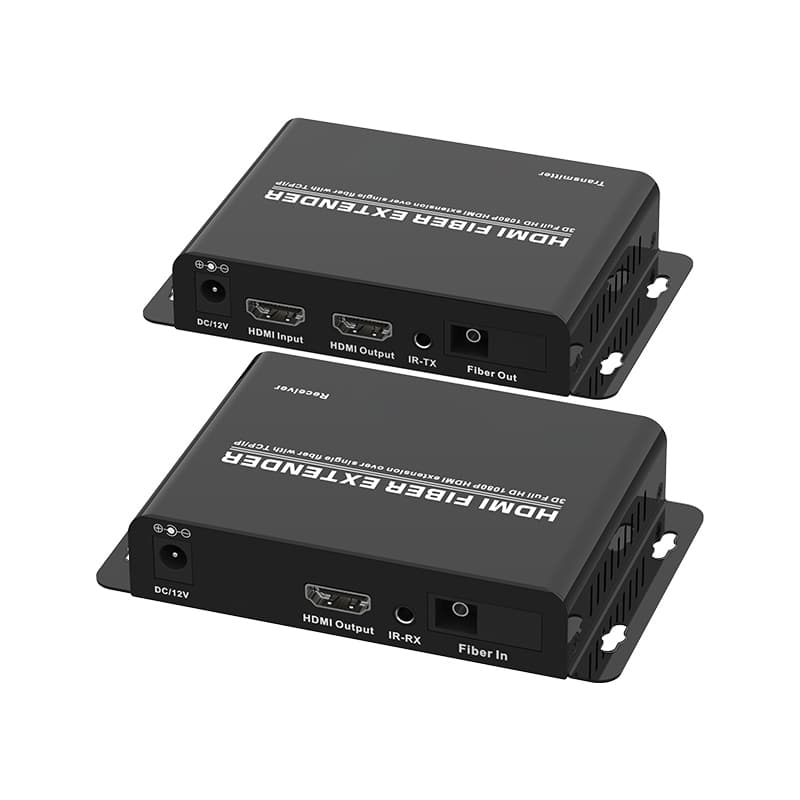

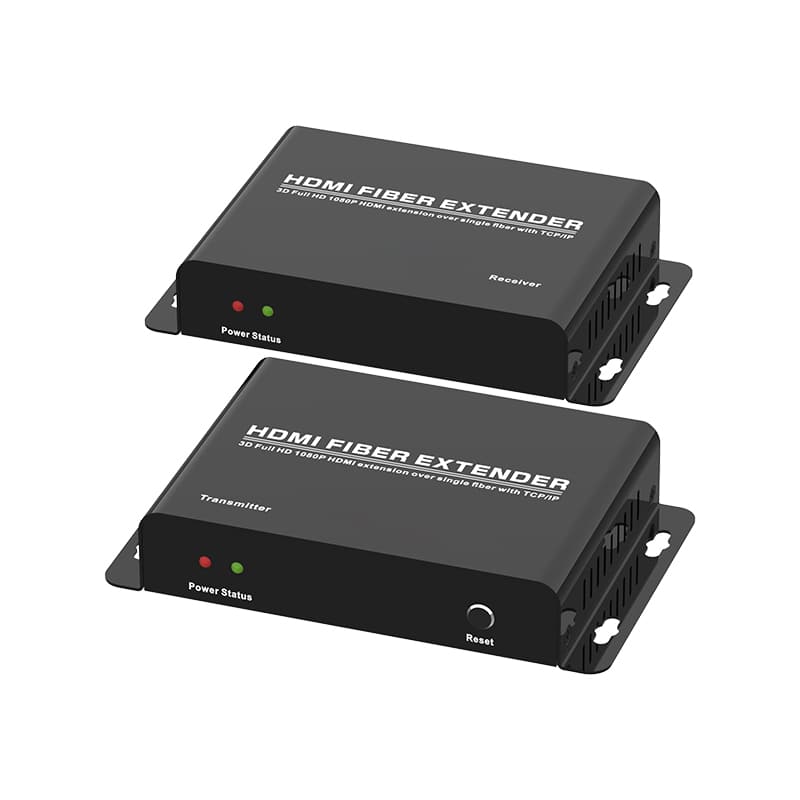

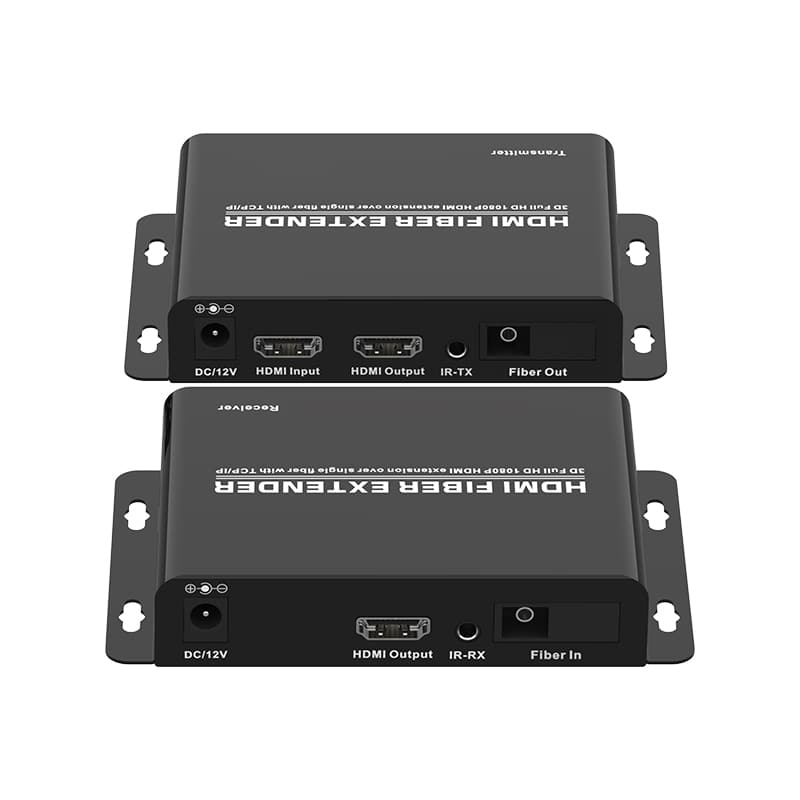

Transmitter Input Port --------------------------------------------------HDMIx1(AF)

Transmitter Output Ports -------------------HDMIx1(AF),SC Fiberx1,IR TXx1

Receiver Input Ports------------------------------------------SC Fiberx1,IR RXx1

Receiver Output Port----------------------------------------------------HDMIx1(AF)

Frequency Bandwidth--------------------------------------2.25Gbps (single link)

Input/Output Resolutions---------------------------------480p,576p,720p,1080p

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

IR remote control-----------------------------------------------------20~60KHz;NEC

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

                                          ± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity---------------------------------20~90% RH (non-condensing)

Dimensions (mm)-----------------------------------------------------------120x73x22
