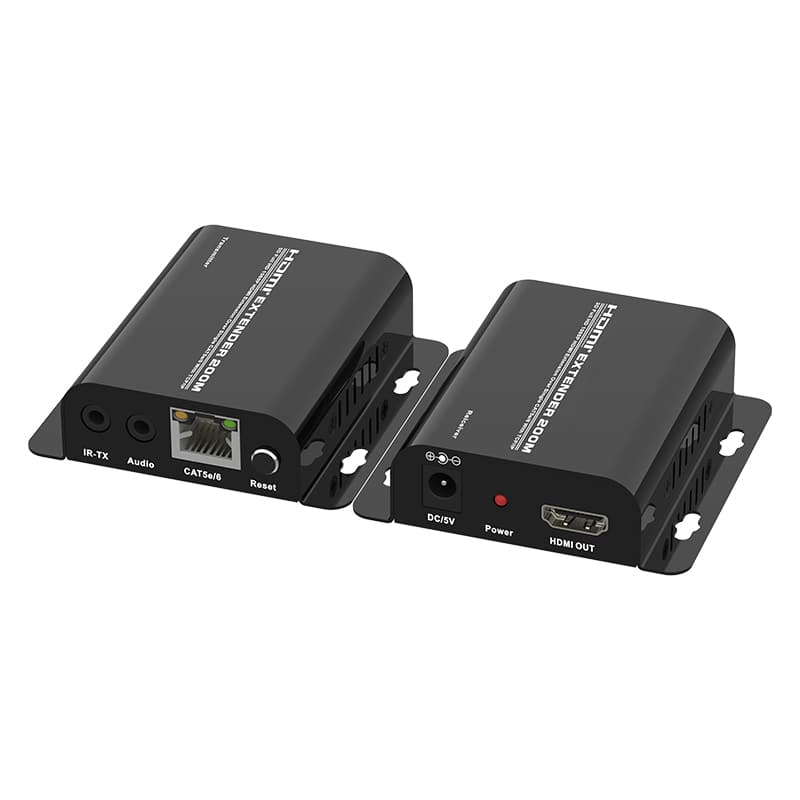

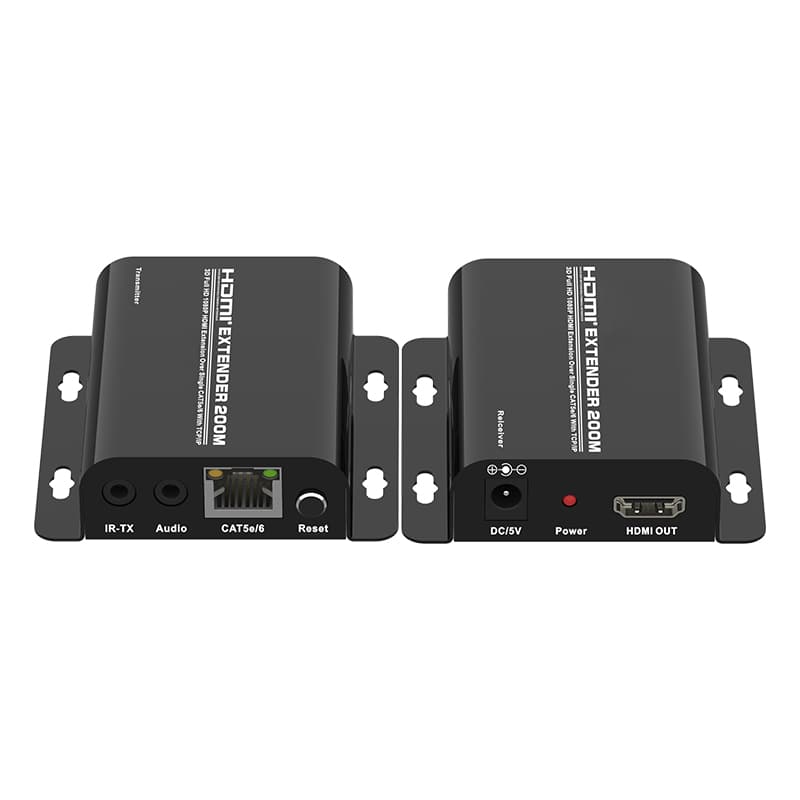

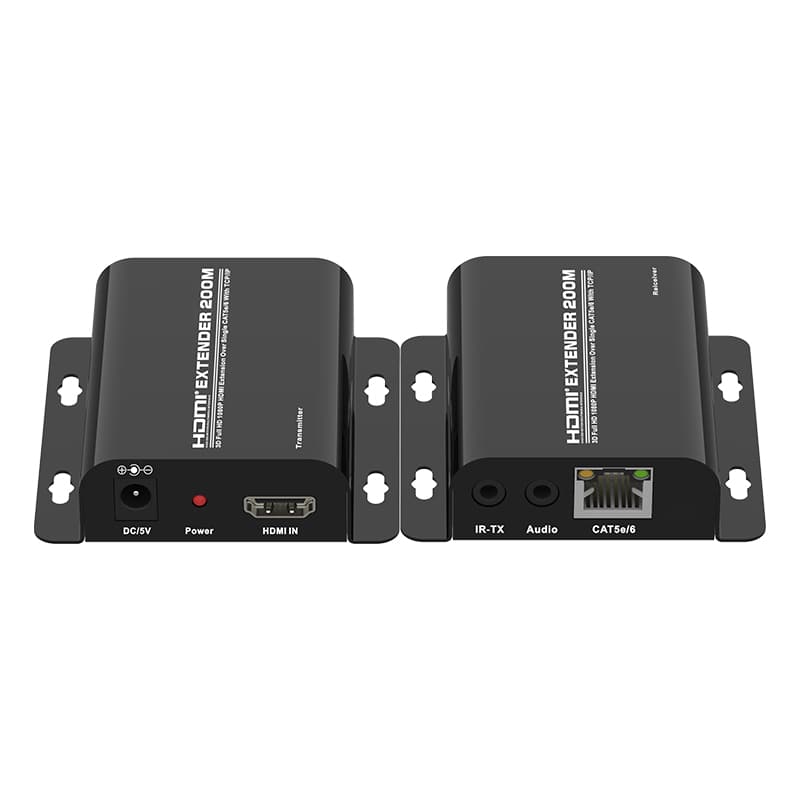

1080P HDMI Extender 200m via CAT5e/6 Audio IR IP cascade max 253 receivers MZ508

MZ508 is a powerful 1080P HDMI extender capable of transmitting signals up to 200 meters over a single CAT5e/6 cable. This versatile device supports audio, IR pass-through, and advanced IP cascade functionality, allowing for distribution to a massive 253 receivers. It's engineered for large-scale, intricate video distribution in diverse commercial, educational, and public environments where flexibility and reach are paramount.

Description Package Information Inquiry

FEATURES

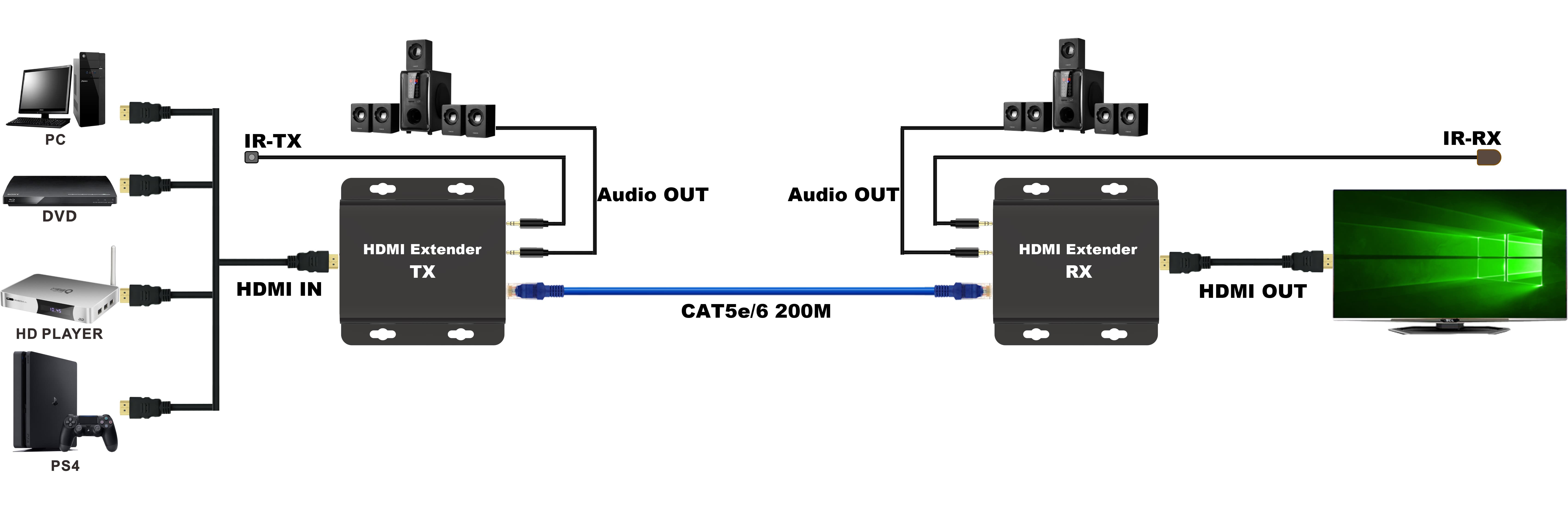

1.Signal transmission :CAT5e or CAT6(recommended) cables up to 200

meters instead of HDMI cables are connected between TX and RX

Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support video input : 24/50/60fs/1080p/720p/576p/480p.

4.Support video output : 24/50/60fs/1080p/720p/576p/480p.

5.Support CEC.

6.Support 20~60KHz IR working.

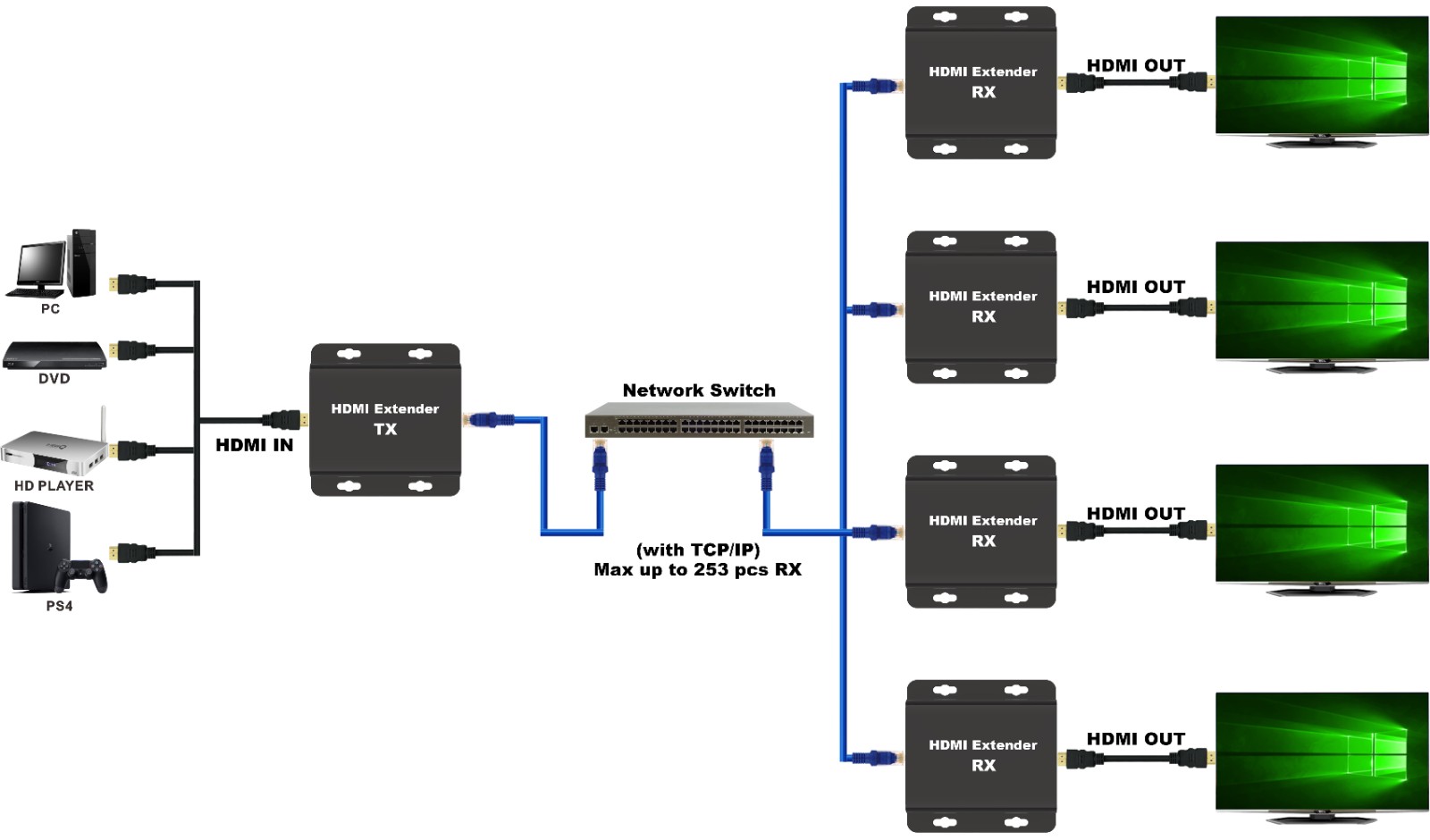

7.protocol compliant TCP/IP one transmitter and multiple receivers,

with a maximum of 253 receivers.

8.Audio format support:

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.

9.No loss of quality,Installs in minutes.

10.Need DC/5V power supply.

PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter------------------1 PCS

2.HDMI Receiver---------------------1 PCS

3.IR-TX ---------------------------------1 PCS

4.IR-RX ---------------------------------1 PCS

5.Power supply------------------------2 PCS

6.User manual-------------------------1 PCS

SPECIFICATION

Length of CAT-6 cable between Transmitter and Receiver---------------------------------------Up to 200 meters

HDMI Input-----------------------------------------------------------------------------24/50/60fs/1080p/720p/576p/480p

Support audio format input -----------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output---------------------------------------------------------------------------24/50/60fs/1080p/720p/576p/480p

Support audio format output-----------------------------------------------------------LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth----------------------------------------------------------------------------------------------------------165MHz

Max baud rate----------------------------------------------------------------------------------------------------------4.95Gbps

Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------------------------≤20m AWG26 HDMI standard cable

Max working current----------------------------------------------------------------------------------------------------800mA

Power adapter format -----------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range------------------------------------------------------------------------------ (-15 to +55℃)

Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter------------------1 PCS

2.HDMI Receiver---------------------1 PCS

3.IR-TX ---------------------------------1 PCS

4.IR-RX ---------------------------------1 PCS

5.Power supply------------------------2 PCS

6.User manual-------------------------1 PCS
