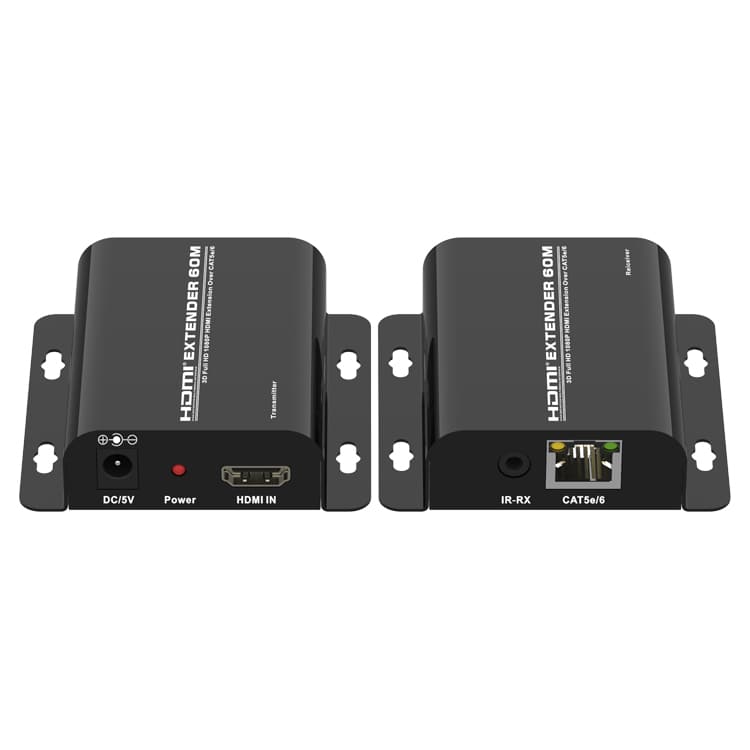

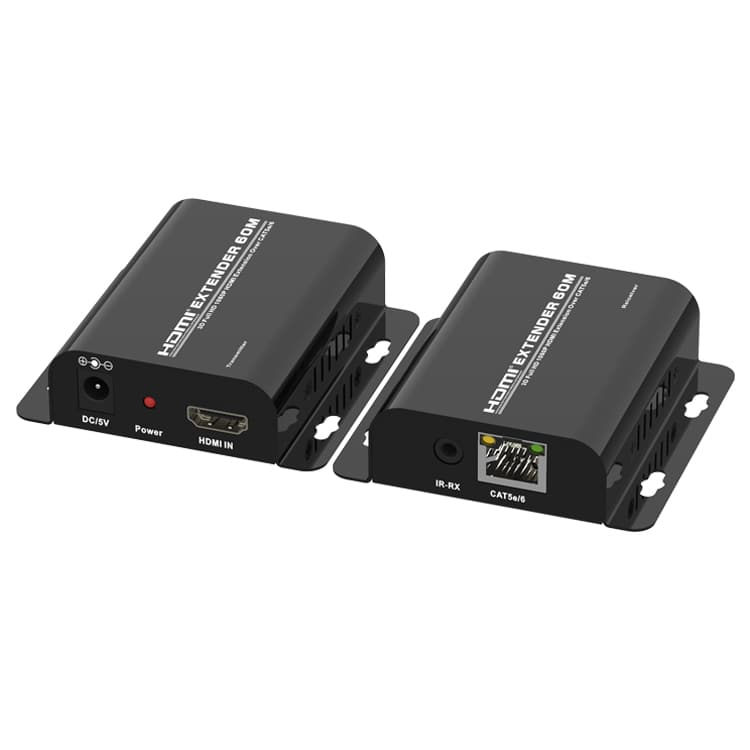

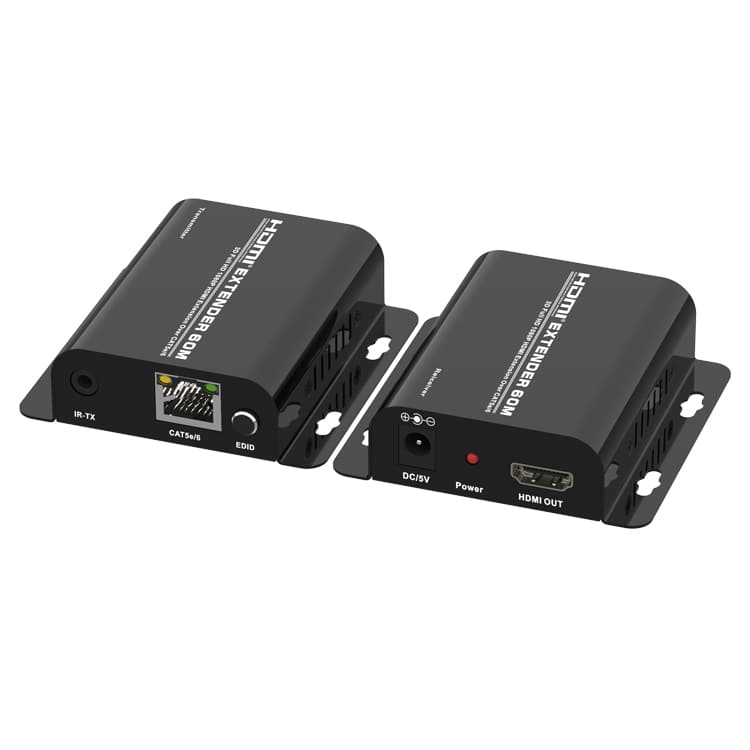

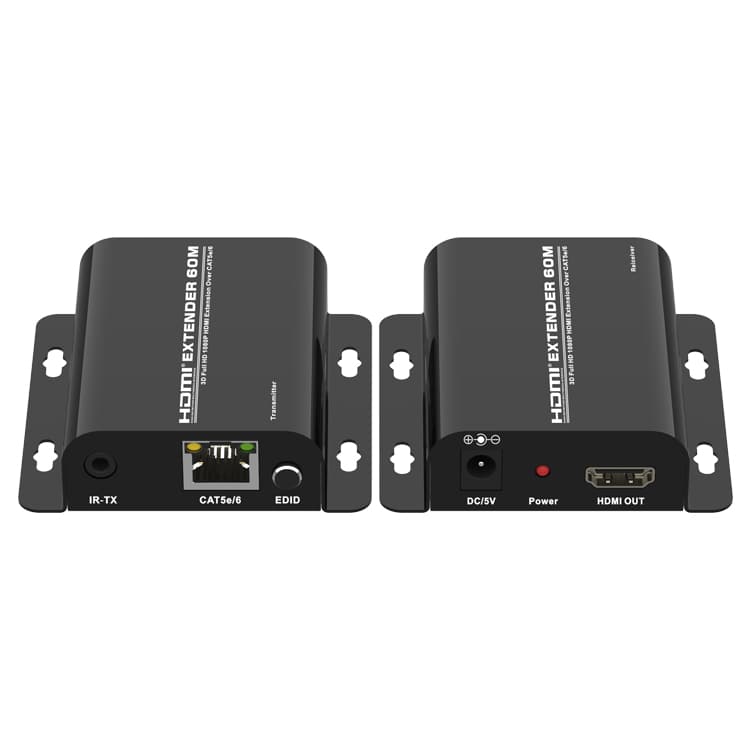

1080P HDMI Extender 60m over CAT5e/6 with IR MZ505A

MZ505A is a high-performance 1080P HDMI extender that transmits video and audio signals up to 60 meters over a single CAT5e/6 cable. It features IR pass-through, enabling convenient remote control of your source device from the display location. This versatile extender is an ideal solution for extending HDMI in both residential and diverse commercial settings, ensuring crystal-clear image quality and stable transmission.
Description Package Information Inquiry

当然可以,以下是为你整理优化后的内容,适合直接复制粘贴到网站后台,采用清晰专业的格式展示 FeaturesPackage ContentsSpecifications


FEATURES

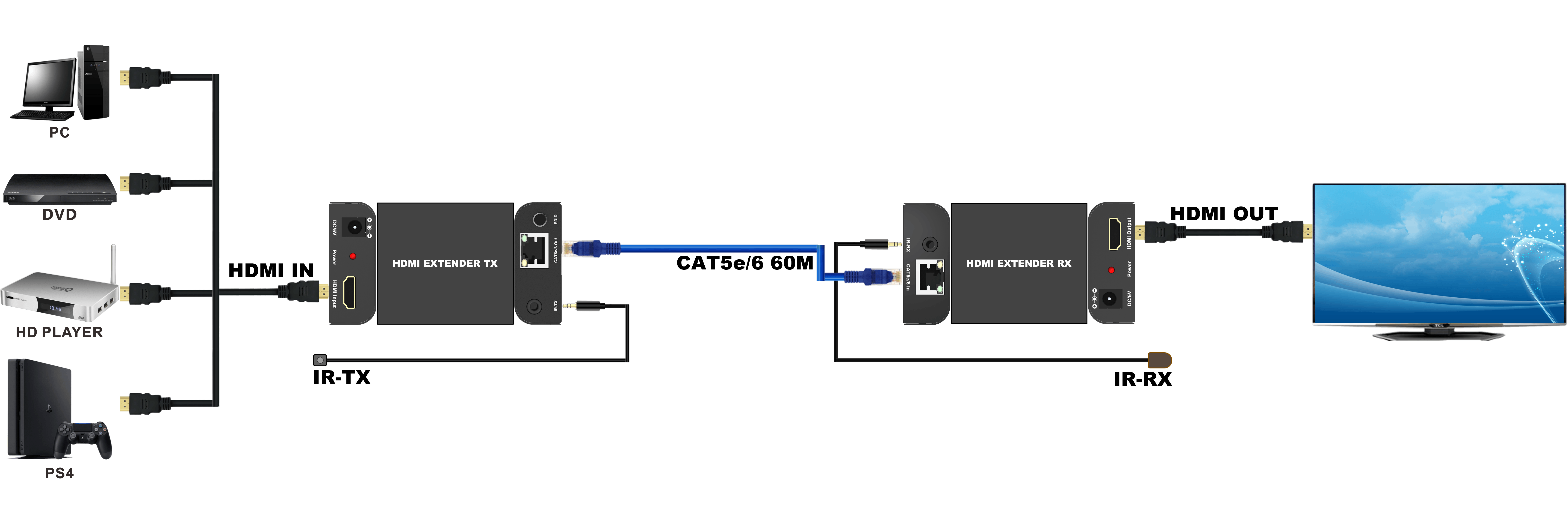

  1. Signal Transmission: CAT5e or CAT6 (recommended) cables support transmission up to 60 meters instead of HDMI cables, connected between TX and RX.

  2. HDMI Compatibility: Supports HDMI 1.3 and HDCP 1.2 protocol.

  3. Video Input Formats: 24/50/60fps @ 1080p, 1080i, 720p, 576p, 576i, 480p, 480i.

  4. Video Output Formats: 24/50/60fps @ 1080p, 1080i, 720p, 576p, 576i, 480p, 480i.

  5. CEC Support: Compatible with Consumer Electronics Control (CEC).

  6. IR Support: Operates with 20~60KHz IR frequency range.

  7. Audio Format Support:
      - DTS-HD
      - Dolby TrueHD
      - LPCM 7.1
      - DTS
      - Dolby AC3
      - DSD

  8. Lossless Transmission: No signal degradation or quality loss.

  9. Quick Installation: Installs in just minutes.

  10. Power Requirement: Requires DC 5V/1A power supply.

PACKAGING ACCESSORIES

When first unpacking your extender, please ensure the following items are included:

  • HDMI Transmitter × 1 PCS

  • HDMI Receiver × 1 PCS

  • IR-TX Cable × 1 PCS

  • IR-RX Cable × 1 PCS

  • Power Supply × 2 PCS

  • User Manual × 1 PCS

 SPECIFICATIONS

  • CAT6 Cable Distance (TX to RX): Up to 60 meters

  • Video Input Format: 24/50/60fps @ 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

  • Audio Input Format: DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD

  • Video Output Format: 24/50/60fps @ 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

  • Audio Output Format: LPCM7.1, DTS, Dolby-AC3, DSD

  • Max Bandwidth: 165MHz

  • Max Baud Rate: 4.95Gbps

  • Input Video Signal: 0.5 ~ 1.5 Volts p-p

  • Output DDC Signal: 5 Volts p-p (TT1L)

  • HDMI Cable Distance (Input/Output): ≤20m using AWG26 standard HDMI cable

  • Max Working Current: 800mA

  • Power Adapter Input: AC 100V-240V, 50/60Hz

  • Power Adapter Output: DC 5V/1A

  • Operating Temperature: -15°C to +55°C

  • Operating Humidity: 5% to 90% RH (non-condensing)
