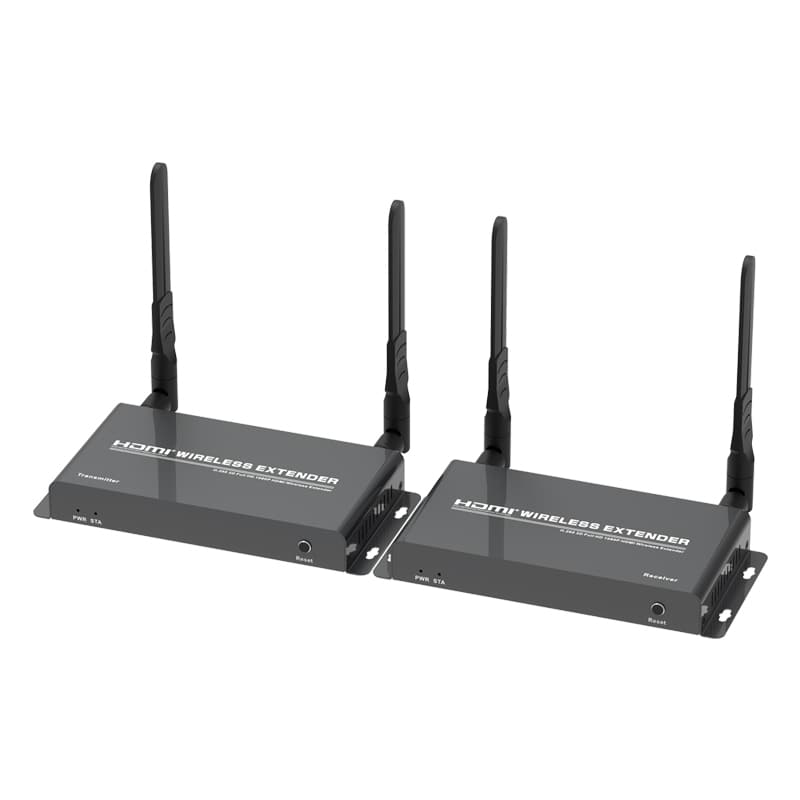

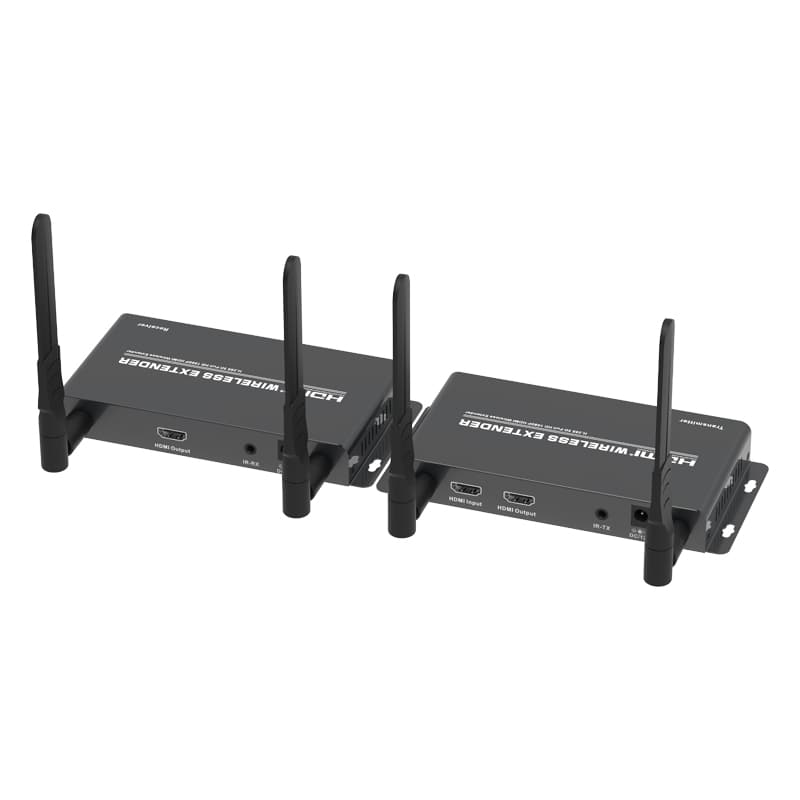

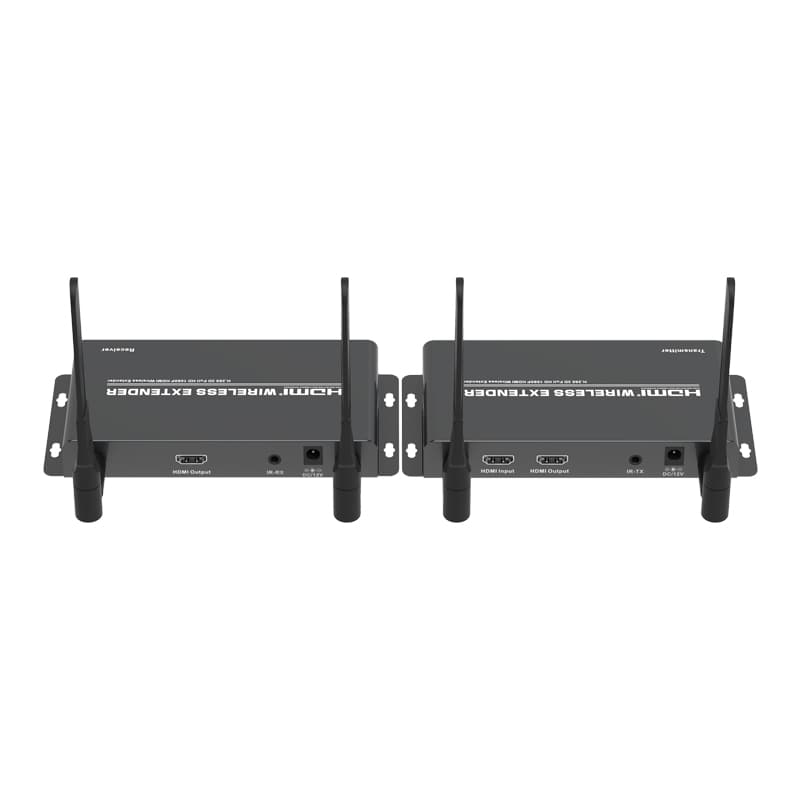

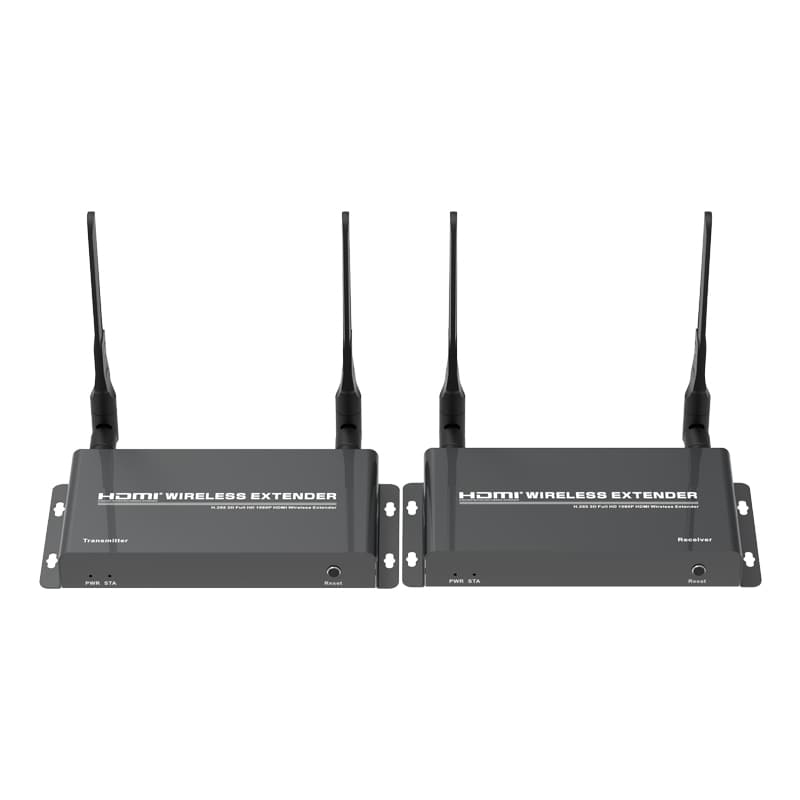

1080P 200m H.265 Wireless HDMI Extender MZWS200

MZWS200,Extend 1080P H.265 HDMI signals wirelessly up to 200m with the MZWS200. This device is engineered for seamless, high-fidelity video and audio transmission over long distances, making it ideal for various professional and home applications. It’s a wireless HDMI solution that supports stable connections and superior picture quality without the need for cumbersome cables.

Description Package Information Inquiry

2.0 Features:

1. HDMI video and audio transmission via wireless WIFI, up to 200 meters;

2. HDMI 1.3 compatible;

3. In accordance with standard HDCP1.2 ,high-bandwidth digital content

protection technology;

4. HD video signal resolution up to 1920x1080@60Hz;

5. Support transmitter with HDMI Loopout;

6. Special format is to compress and decompress video,effectively improve

the transfer efficiency,to ensure that the playback fluency;

7. Support external remote infrared extension, easy to operate the remote

Device;

8. Able to automatically identify and configure a variety of display mode;

9. Built-in automatic balance system, the picture is fluent, clear and stable;

10. The built-in ESD electrostatic protection circuit, comprehensive security

protection system;

11. Simple and convenient installation, plug and play, do not need to set up.

3.0 Packaging accessories:

1. HDMI transmitter------------------------------------------------1 Pcs

2. HDMI receiver ---------------------------------------------------1 Pcs

3. 12V DC Power Adaptor----------------------------------------2 Pcs

4. IR RX Cable ------------------------------------------------------1 Pcs

5. IR TX Cable ------------------------------------------------------1 Pcs

6. User Manual------------------------------------------------------1 Pcs

4.0 Technical parameters:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Compressed format	H.265
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080p@60Hz
	Connector	HDMI-A
	Impedance	100Ω
	Recommend HDMI maximum input/output range	Less than 5 meters, when 1920 x1080p @ 60 Hz
IR	Interface	3.5mm Stereo audio socket
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	20-60kHz
WIFI	Radio Frequency power	13dbm
	Wireless standards	802.11ac
	signal direction	Unidirectional
	Radio frequency	5.8GHz
	Transmission distance	200M
Other	Power	Adapter:DC 12V
	Power dissipation	MAX 7W
	Temperature	Operating：-5℃ ~ +70℃
	Humidity	Operating：5% ~ 90%
	Size	1708222mm
	Warranty	1 year free warranty

Packaging accessories:

1. HDMI transmitter------------------------------------------------1 Pcs

2. HDMI receiver ---------------------------------------------------1 Pcs

3. 12V DC Power Adaptor----------------------------------------2 Pcs

4. IR RX Cable ------------------------------------------------------1 Pcs

5. IR TX Cable ------------------------------------------------------1 Pcs

6. User Manual------------------------------------------------------1 Pcs
