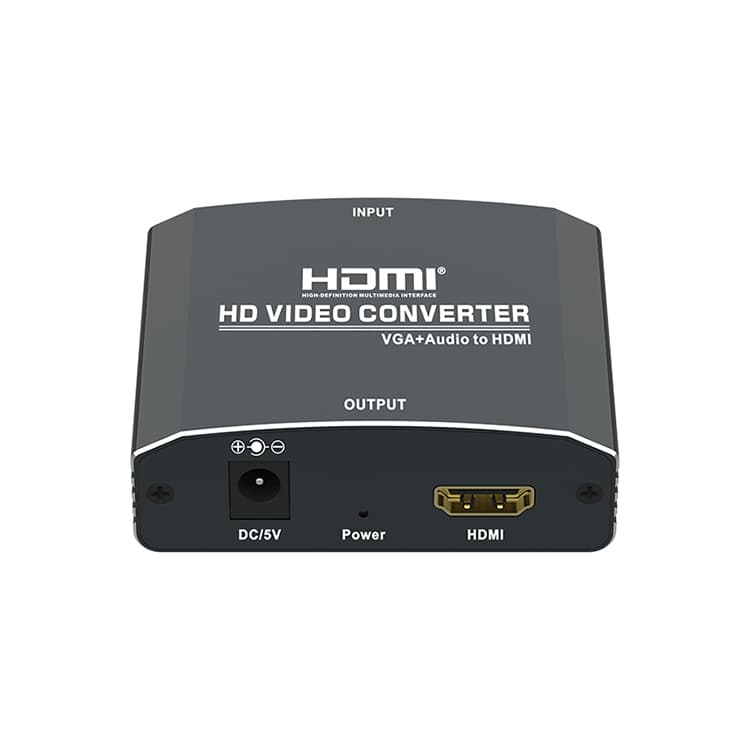

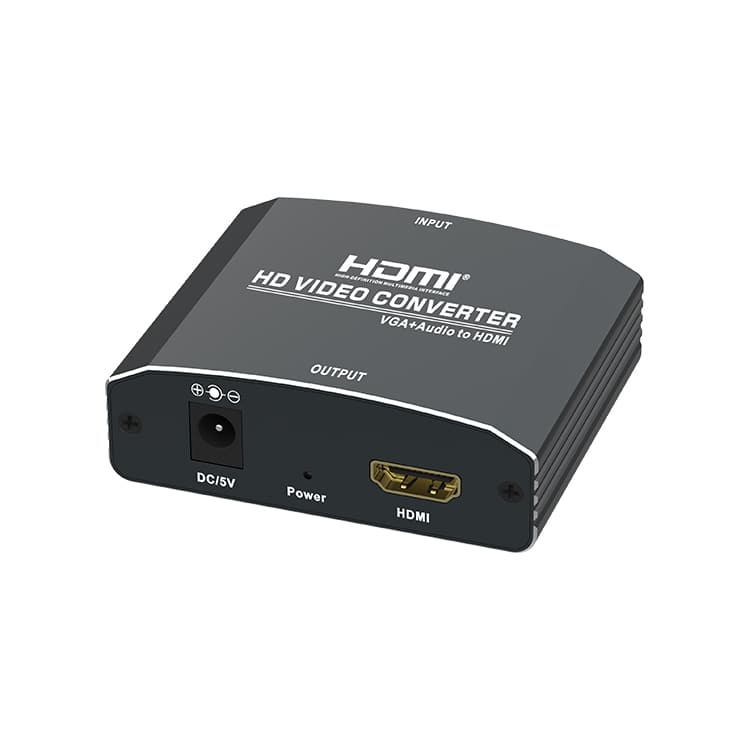

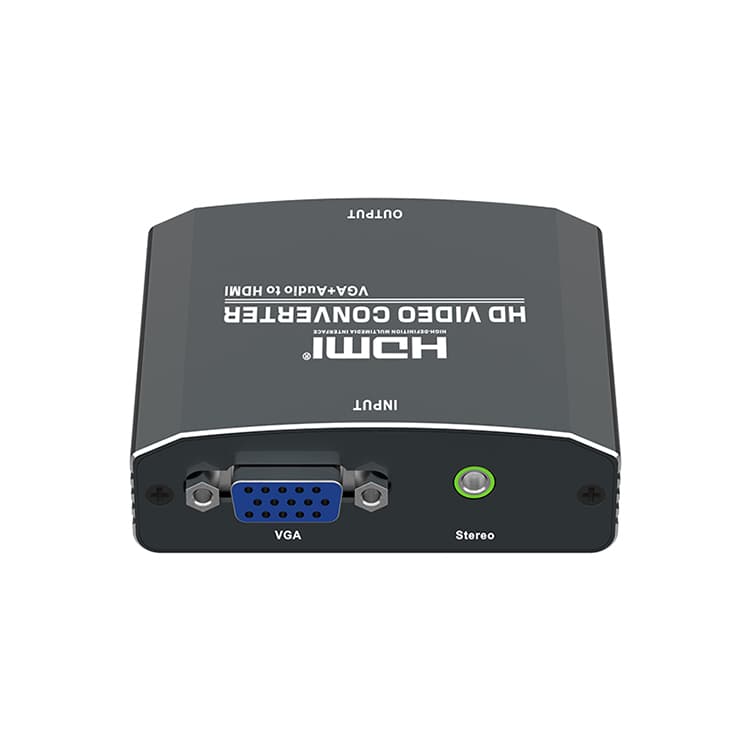

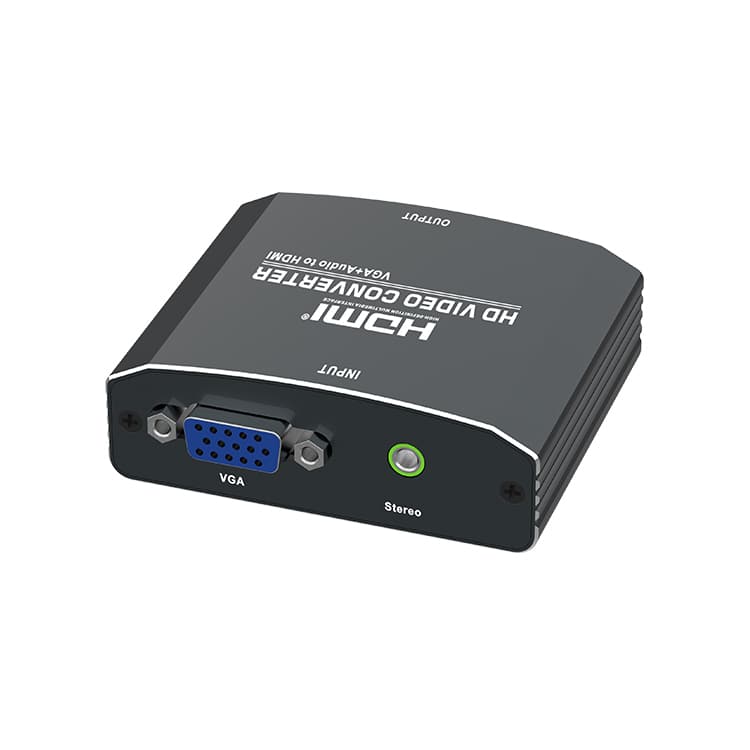

MZ602A VGA+3.5mm Stereo to HDMI Converter
Features
The series of the HDMI Converter have many features that enable them to perform in a superior manner. among those features you will find:
1. Conversion:It could convert PC’s VGA video and R/L audio into complete
HDMI;
2. Easy to Use:Install in seconds, no need of setting;
3. Support HDMI1.3b,HDCP1.2/1.1;
4. Support resolution:480i/p,576p,720p,1080i/p;
5. Extend the transmission distance and improve transmission signal;
6. Compatible with DVI by using HDMI to DVI adapter;
7. Metal casing design and overall shielding without signal interference.
Packaging accessories:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1. VGA to HDMI Converter------------------------------------1Pcs
2. 5V DC Power Adaptor---------------------------------------1Pcs
3. User Manual---------------------------------------------------1Pcs
Specifications
Signal Inputs/Output | |
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Maximum Single Link Range | 1600X1200, 1080P |
Output Video | HDMI + HDCP1.2/1.1 |
VGA | 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz |
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Operating Frequency | |
Frequency | Up to165MHz |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
Resolutions(HDTV) | |
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Mechanical | |
Size(LxWxH) | 73x60.5x22.5mm |
Weight(Net) | 0.09Kg |
Warranty | |
Limited Warranty | 1 Year Parts and Labor |
Environmental | |
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement | |
External Power Supply | DC 5V 1A |
Regulatory Approvals | |
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter | |
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
Packaging accessories:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1. VGA to HDMI Converter------------------------------------1Pcs
2. 5V DC Power Adaptor---------------------------------------1Pcs
3. User Manual---------------------------------------------------1Pcs
