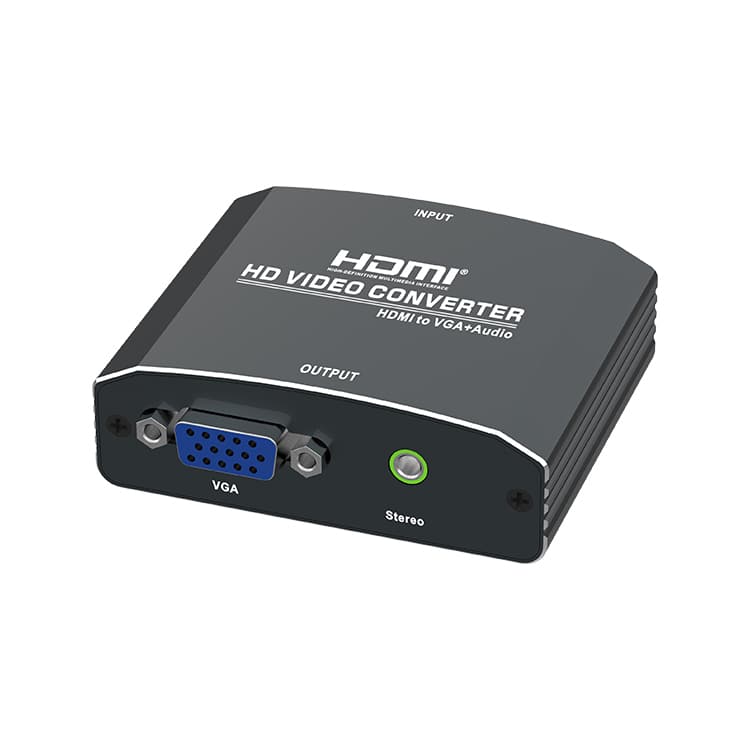

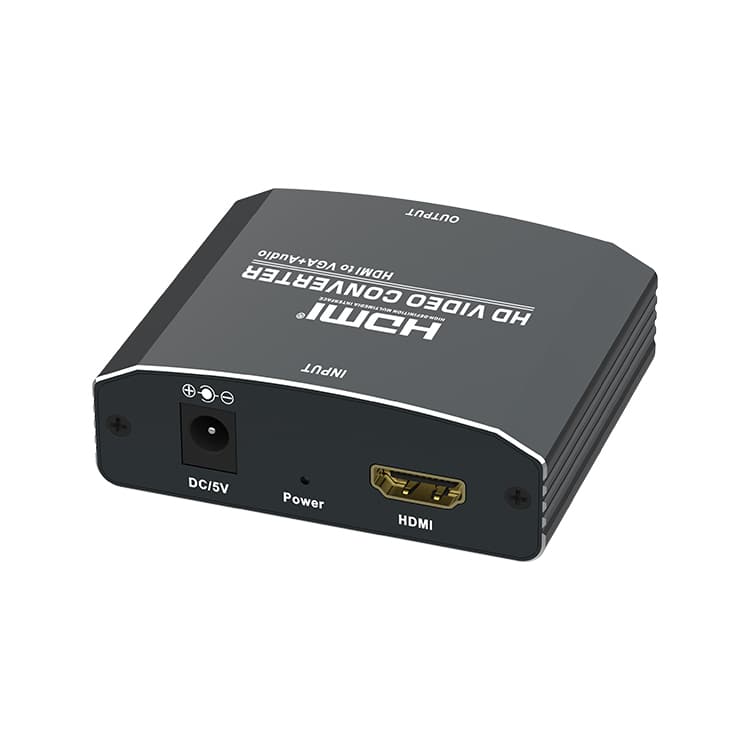

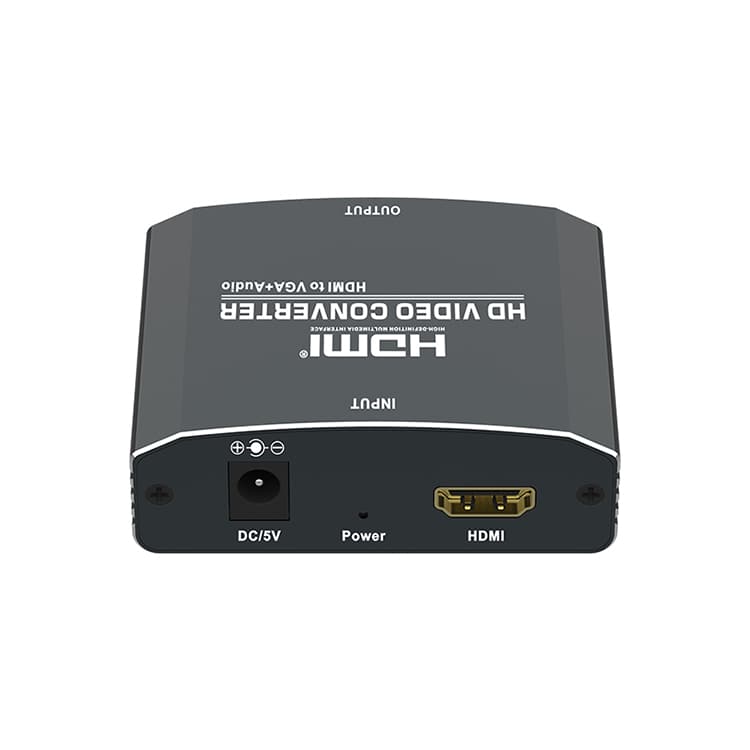

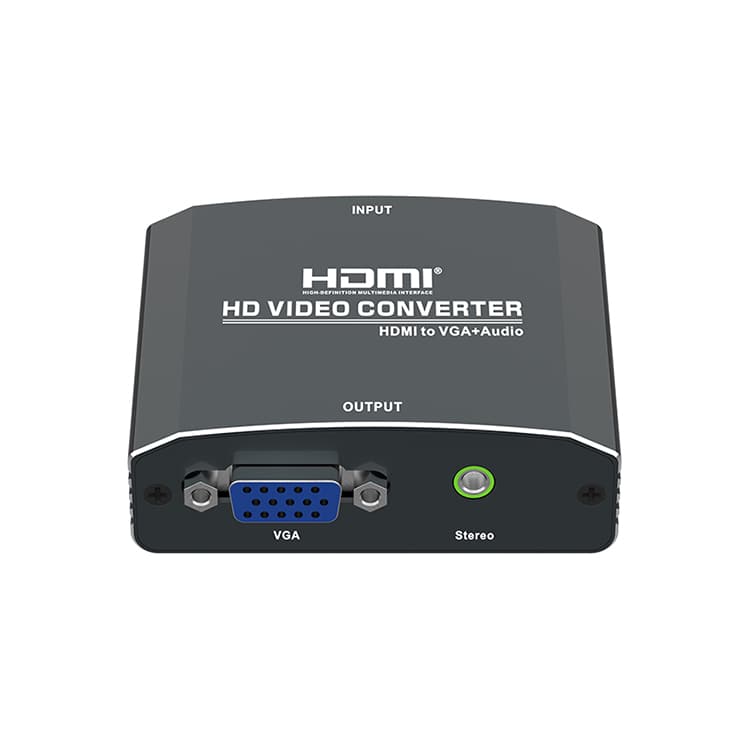

MZ601A 1080P HDMI to VGA+ 3.5mm Stereo Converter
Features

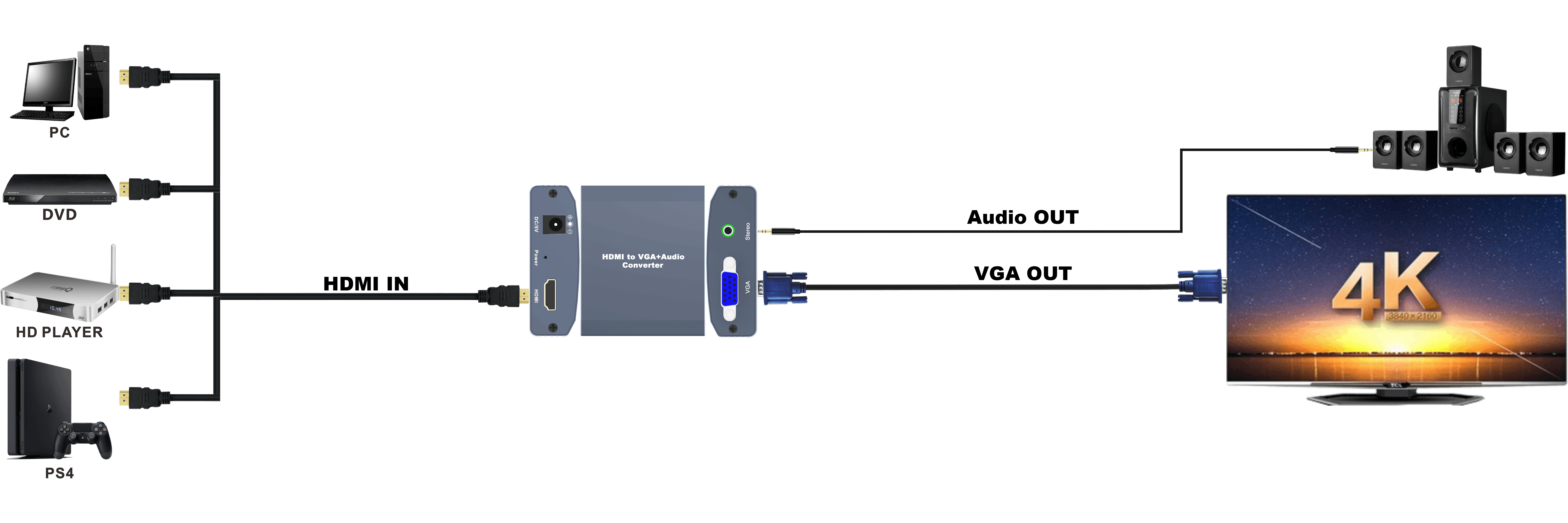

1.Conversion: It could convert complete HDMI into VGA video and
audio output;
2.Easy to Use: Install in seconds, no need of setting;
3.Support HDMI1.4b;
4.Support HDCP1.4;
5.Support resolution:480i/p,576p,720p,1080i/p,1920x1200;
6.Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input;
7.Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC;
8.Compatible with DVI by using HDMI to DVI adapter;
9.Metal casing design and overall shielding without signal interference.
Packaging accessories:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1. HDMI to VGA Converter------------------------------1Pcs
2. 5V DC Power Adaptor---------------------------------1Pcs
3. User Manual---------------------------------------------1Pcs
Specifications
Signal Inputs/Output | |
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Input connection | HDMI A female(19pin) |
Output connection | VGA, 3.5mm Stereo |
HDMI video input format | 480i/p;576i/p;720p;1080i/p,1920x1200 |
VGA video output format | 480i/p;576i/p;720p;1080i/p,1920x1200 |
Audio output format | 2 channel LPCM |
Operating Frequency | |
Vertical Frequency Range | 60Hz |
Input video Amplifier Bandwidth | 1.65Gbps/165MHz |
Mechanical | |
Size(LxWxH) | 73x60.5x22.5mm |
Weight(Net) | 0.09Kg |
Warranty | |
Limited Warranty | 1 Year Parts and Labor |
Environmental | |
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement | |
External Power Supply | DC 5V 1A |
Power consumption(Max) | 2.5W |
Regulatory Approvals | |
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter | |
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
