1.0 INTRODUCTION

The converter converts a set of HDMI 2.0 signals into a set of HDMI signals and a set of Displayport signal sync outputs.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 FEATURES

1.Plug and play, Installs in minutes;

2.Support the HDCP2.2 protocol, Support for HDMI2.0;

3.Support HDR 18Gbps YUV4:4:4;

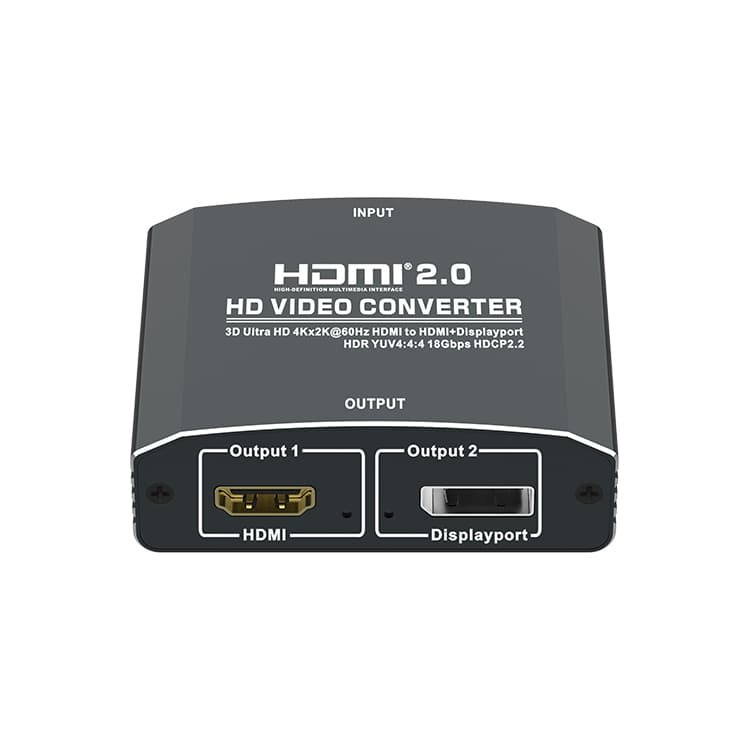

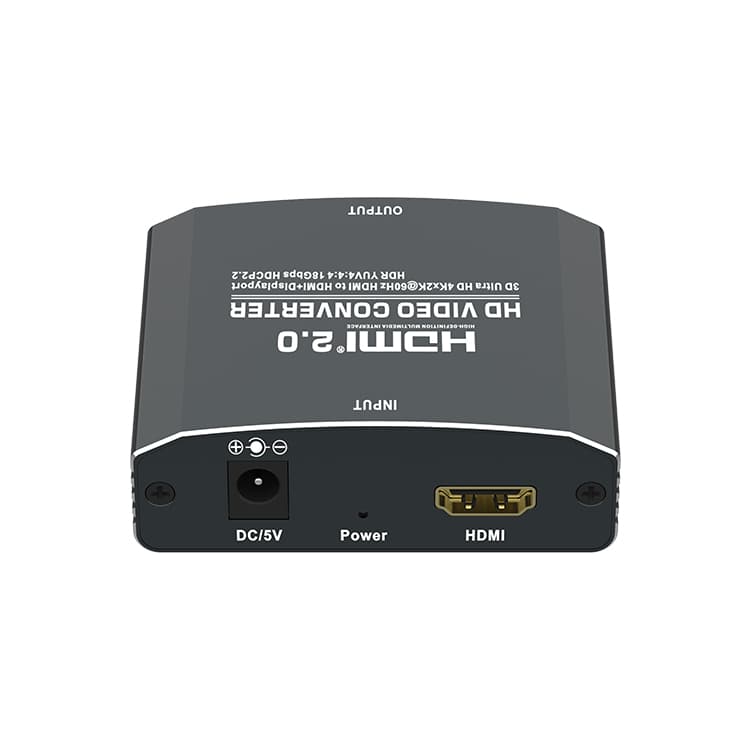

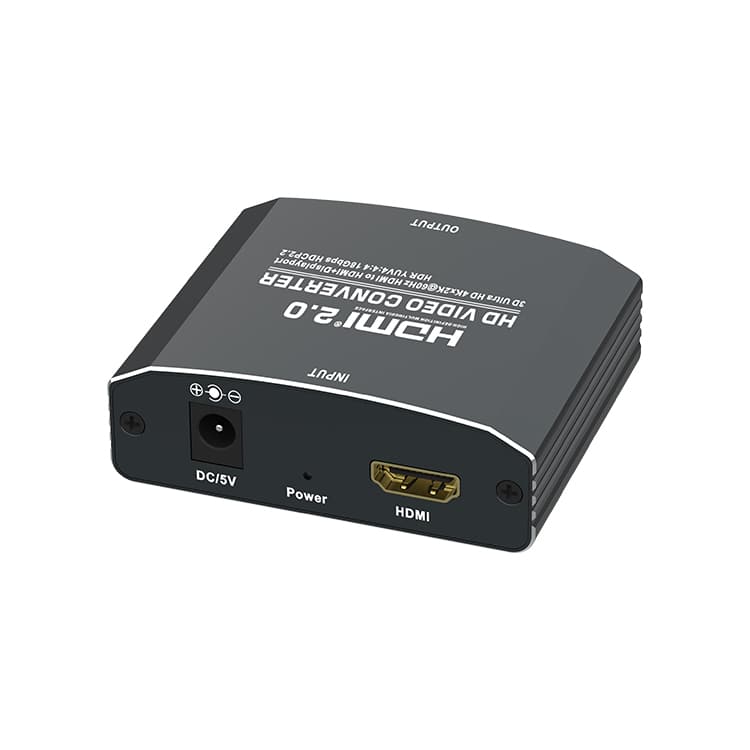

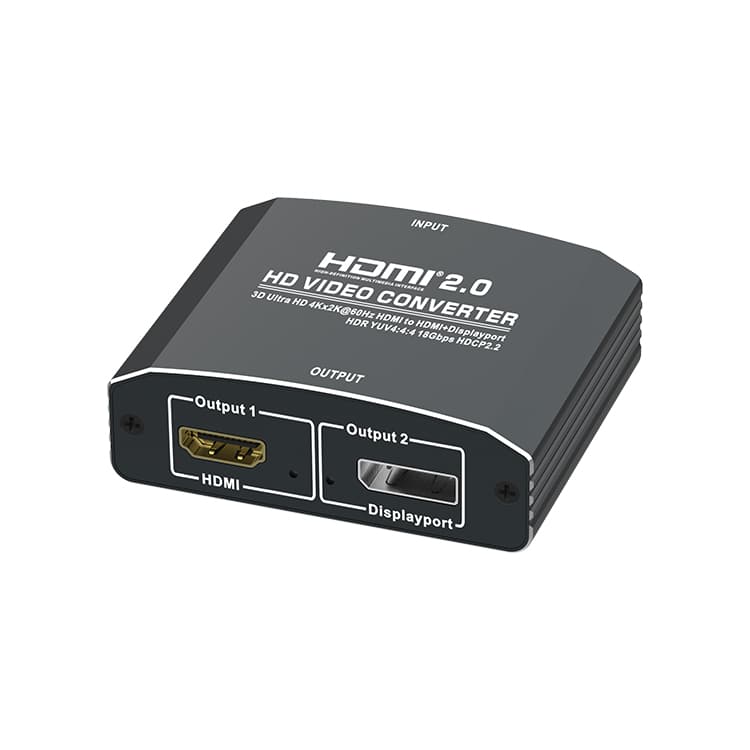

4.One HDMI input converted to HDMI+Displayport output;

5.Displayport output support DP1.2;

6.HDMI Input resolution: up to 4Kx2K(60Hz);

7.HDMI/DP Output resolution: up to 4Kx2K(60Hz);

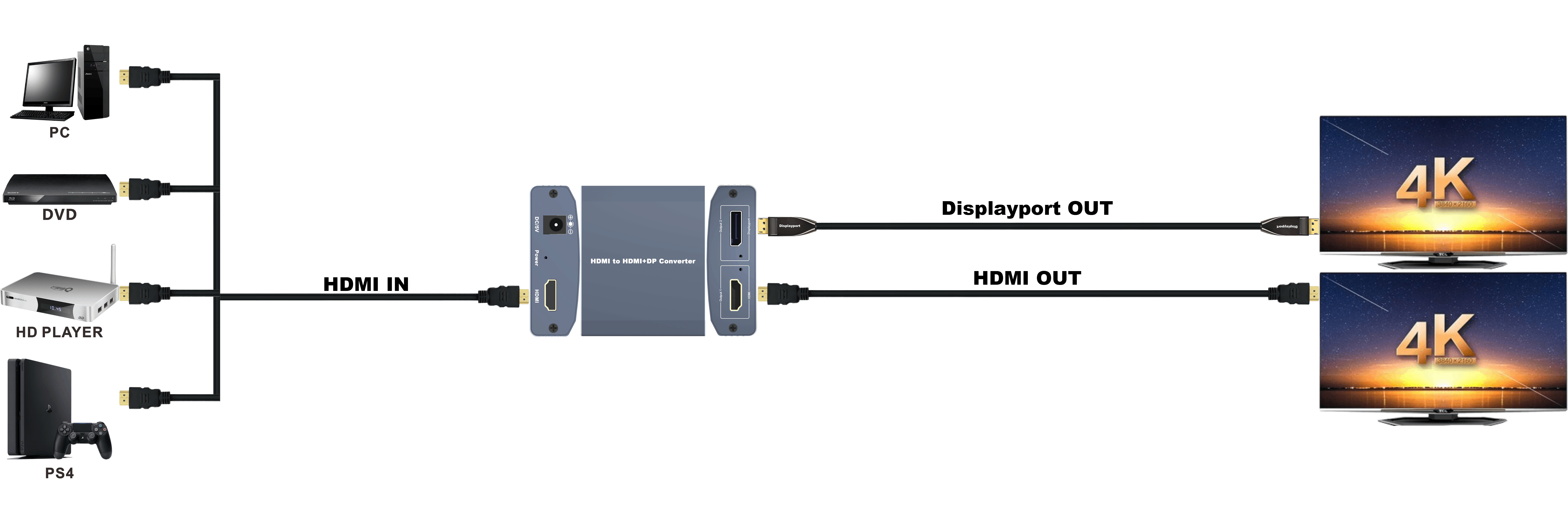

8.Support HDMI and Displayport signal synchronization distribution.

3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit----------------------------------1Pcs

2.User's Manual---------------------------1Pcs

3.5V DC Power Supply------------------1Pcs

4.0 SPECIFICATIONS:

HDMI IN/Out sesolution----------------480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz

DP output----------------------------------480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz

Support video color format-------------------------------24bit/36bit/48bit deep color

Max bandwidth-----------------------------------------------------------------------600MHz

Max baud rate-------------------------------------------------------------------------18Gbps

Input/Output TMDS signal---------------------------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal------------------------------------------------5Volts p-p (TTL)

Input cable distance--------------------------------------------------------≤10m 28AWG

Output cable distance ------------------------≤10m 28AWG HDMI standard cable

Max working current------------------------------------------------------------------500mA

Power adapter ----------------Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range-------------------------------------------- (-15 to +55℃)

Operating Humidity range----------------------5 to 90%RH (No no Condensation)

Dimension (L x W x H)---------------------------------------------73X60.5X22.5 (mm)

Weight---------------------------------------------------------------------------------------90g

PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit----------------------------------1Pcs

2.User's Manual---------------------------1Pcs

3.5V DC Power Supply------------------1Pcs
