1.0 INTRODUCTION

The AV to VGA+Audio converter is a universal converter for analog composite input to VGA 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision,

  colors, resolutions, and details;

3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N

  standard TV formats input;

4.Support Up Scaler;

5. Support VGA 1080p or 720p output.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)AV to VGA Converter--------------------------------1PCS

2) 5V 1A Power adapter-------------------------------1PCS

3) User Manual------------------------------------------1PCS

4.0 SPECIFICATIONS

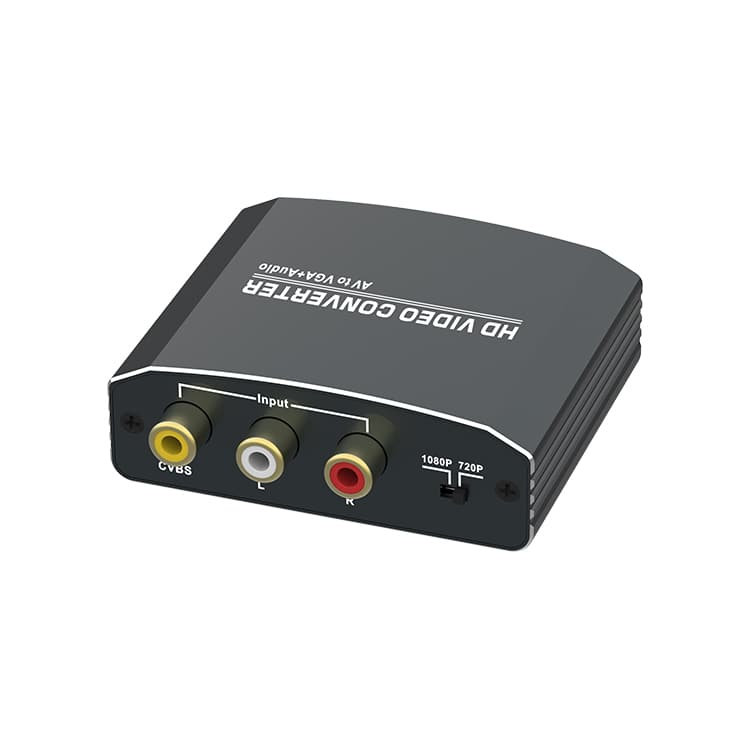

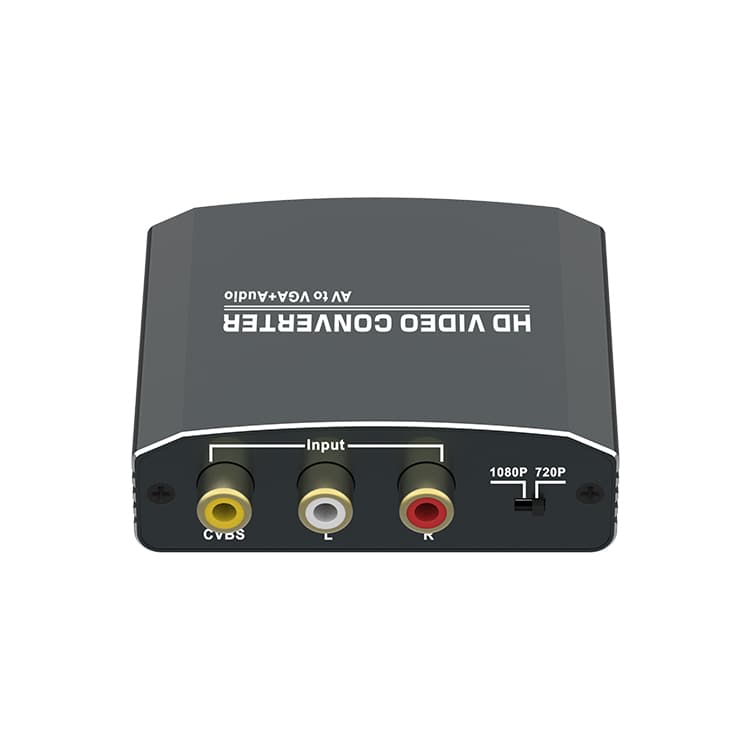

Input ports----------------------------------3xRCA (Yellow, White, Red);

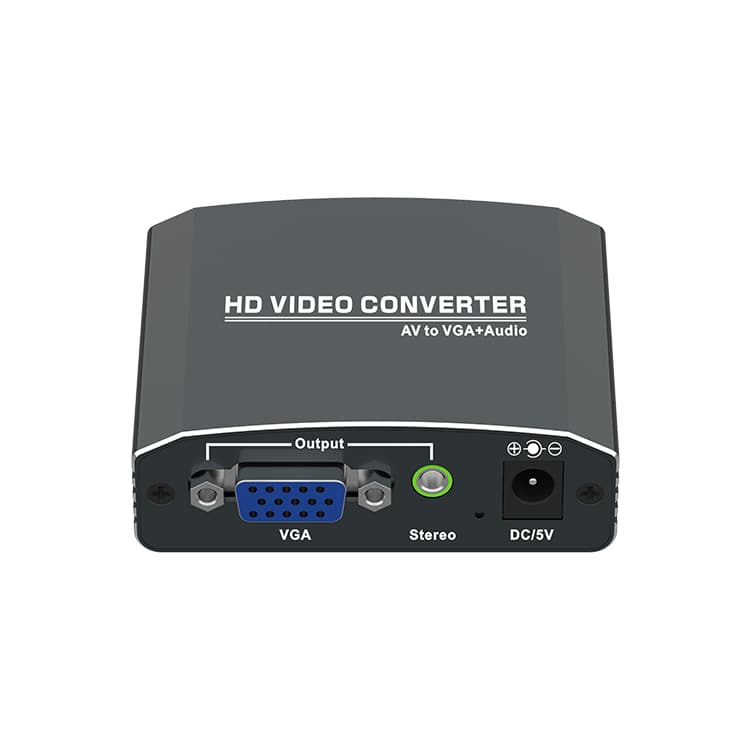

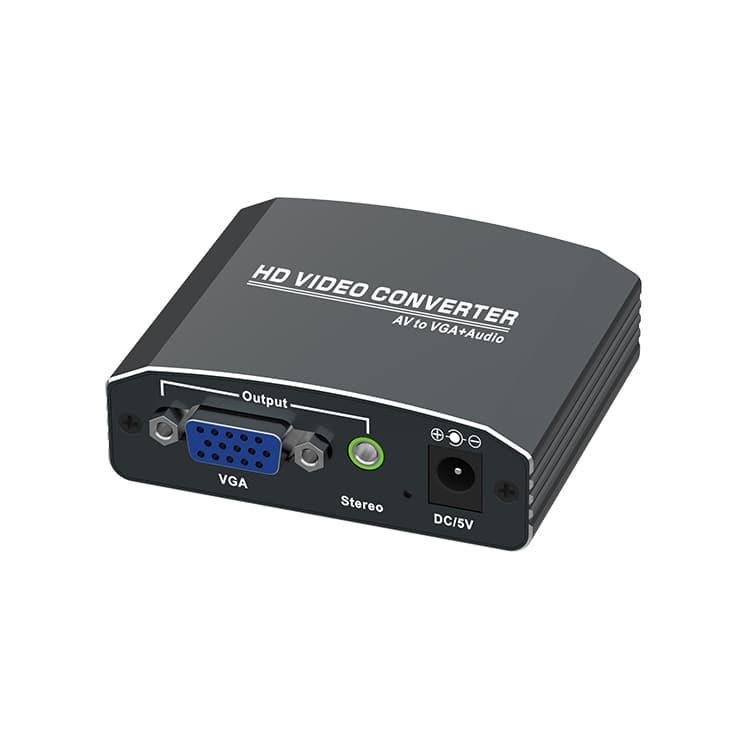

Output ports------------------------------------1x3.5mm Stereo,1xVGA;

Dimensions (mm)-----------------------------73(L) x60.5(W) x22.5(H);

Wight (g)----------------------------------------------------------------------90;

Composite input ---------------PAL, NTSC3.58, NTSC4.43,SECAM,

                                             PAL/M,PAL/N;

6. VGA output------------------------------------1080p60Hz, 720p/60Hz.

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)AV to VGA Converter--------------------------------1PCS

2) 5V 1A Power adapter-------------------------------1PCS

3) User Manual------------------------------------------1PCS
