1.0 INTRODUCTION

This scaler Box is designed to display your analog video/YC//RGB images on HDTV’s with better viewing resolutions. It can upscale any SCART input source to HDMI output with a wide-range of resolutions. Incredibly, this device can also transfer sounds allowing everyone to enjoy both HD images and sounds.

2.0 FEATURES

1. Scales up SCART to HDTV resolution up to1080p;

2. Support input video systems NTSC/PAL/SECAM;

3. Digital Noise Reduction – Minimizes picture noise, reproducing images that

  are true to the original;

4. Block Noise Reduction – Effectively minimizes all MPEG noise, Improving

  the digital quality of HDTV broadcasts particularly, where block noise

  happens most;

5. MPEG Noise Reduction – Reduce mosquito noise for MPEG video images

  without losing detail;

6. 3D (frame based) motion adaptive noise reduction;

7. Advanced 3D motion adaptive de-interlace;

8. Automatic 2:2/3:2 film mode detection.

3.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the

following items are contained in the shipping carton:

(1)Scart to HDMI Converter----------------------1Pcs

(2)5V DC Power Supply---------------------------1Pcs

(3)User Manual--------------------------------------1Pcs

4.0 SPECIFICATIONS

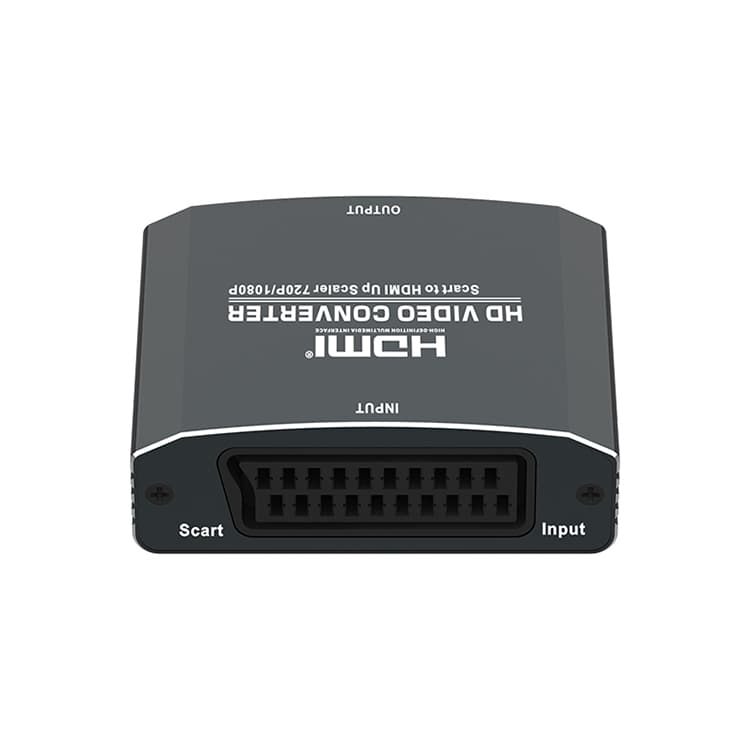

Input port-------------------------------------------------------------------------1xSCART

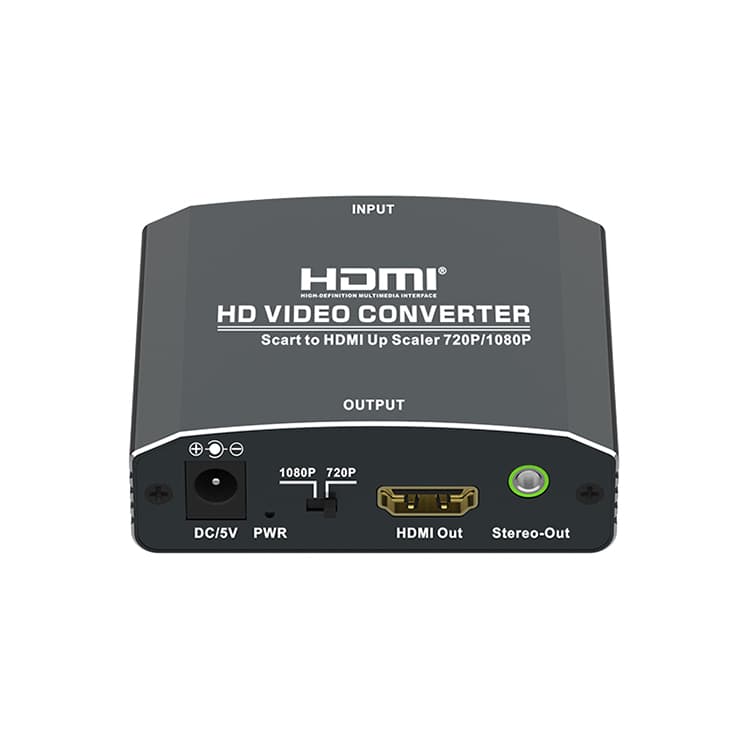

Output ports-------------------------------------------------1xHDMI,1x3.5mm Stereo

Dimensions(mm)----------------------------------------------73(L)x60.5(W)x22.5(H)

Wight (g)-----------------------------------------------------------------------------------90

SCART input Format--------------------------------------PAL / NTSC3.58 / SECAM

                                           NTSC4.43 /PAL-M / PAL-N

HDMI output resolution-----1080P50 Hz,1080P60 Hz,720P50 Hz,720P60 Hz,

                    800x600@60Hz,1024x768@60Hz,1280x1024@60Hz

Operating Temperature-----------------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature-------------------------------------20°C ~ 60°C / -4°F ~ 140°F

elative Humidity-------------------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)---------------------------------------------------------2.5W

ESD Protection-----------------------------------------------------Human Body Model:

                   ± 8kV (air-gap discharge)
