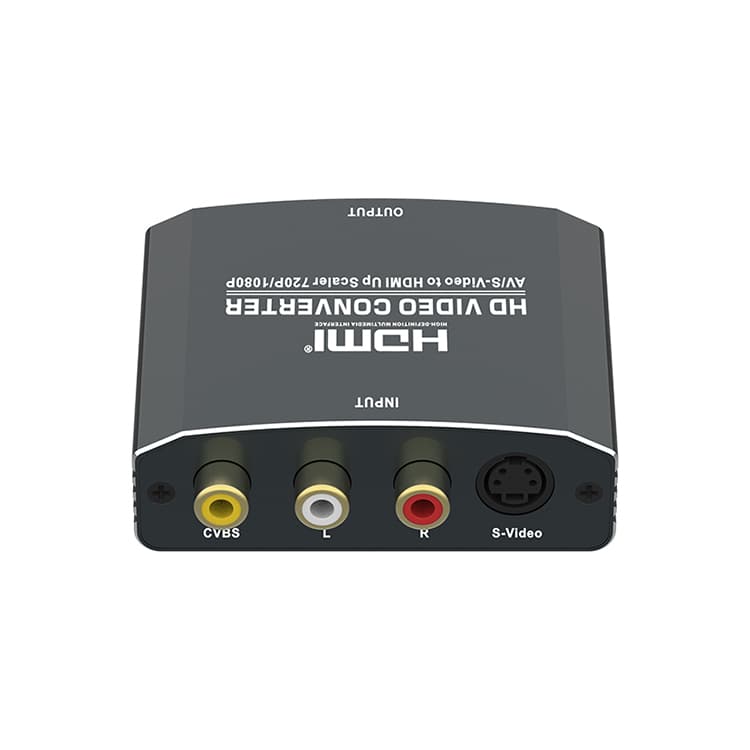

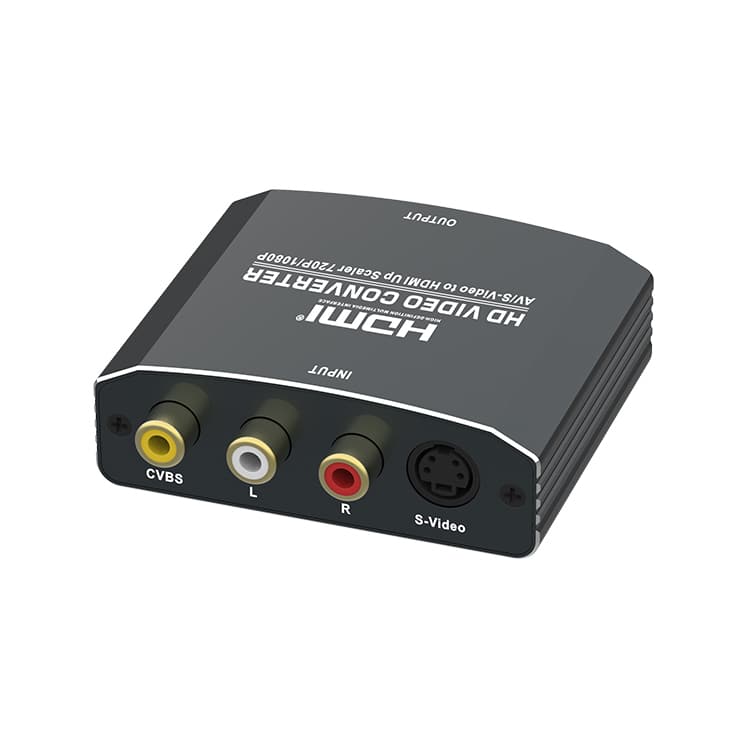

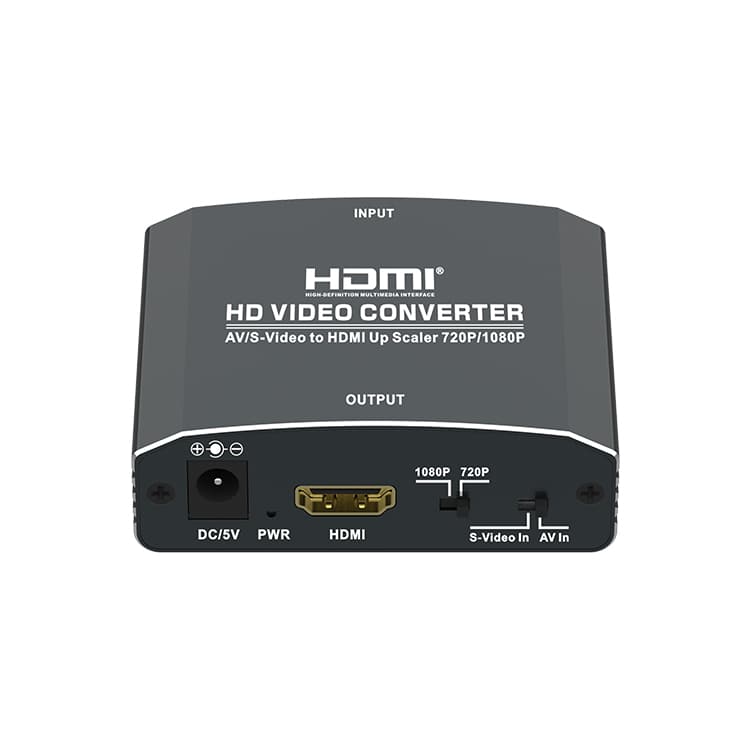

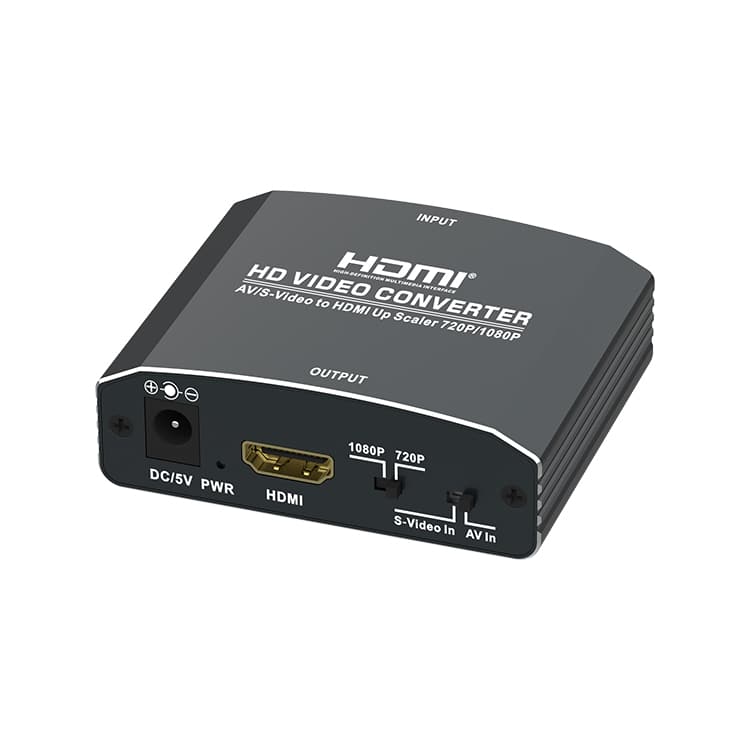

MZ619 AV+S-Video to HDMI Converter Up Scaler 720p/1080p
1.0 Introduction
CVBS/S-video to HDMI signal converter which will convert S-video/CVBS video signal and R/L audio signal to HDMI signal. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 Features
1. No need to install drivers, portable, flexible, plug and play;
2. Provide advanced signal processing with great precision,
colors, resolutions, and details;
3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N
standard TV formats input;
4.Support Up Scaler;
5. Support HDMI 1080p or 720p output.
3.0 Package contents
Before attempting to use this unit please check the packing and make sure the
following items are contained in the shipping carton:
(1)AV/S-video to HDMI Converter---------------------------------1Pcs
(2)5V DC Power Supply----------------------------------------------1Pcs
(3)User Manual---------------------------------------------------------1Pcs
4.0 Specifications
Signal Inputs/Output | ||
Input Video Signal | 0.5-1.0 volts p-p | |
Input DDC Signal | 5 volts p-p (TTL) | |
Input Video / Resolution | CVBS | NTSC / PAL |
S-video | NTSC / PAL | |
Output Video / Resolution | HDMI | 480i / 576i / 1080i |
480p/576p/720p/1080p/ 640x480p/800x600p/1024x768p/ 1280x768p/1280x800p/1280x1024p/ 1360x768p/1600x1200p/1920x1200p | ||
Operating Frequency | ||
Vertical Frequency Range | 50/60Hz | |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz | |
Mechanical | ||
Size( L x W x H ) | 73x60.5x22.5mm | |
Weight(Net) | 90g | |
Warranty | ||
Limited Warranty | 1 Year Parts and Labor | |
Environmental | ||
Operating Temperature | 0 ℃ to +70℃ | |
Operating Humidity | 10% to 85 % RH (no condensation) | |
Storage Temperature | -10℃ to +80℃ | |
Storage Humidity | 5% to 95 % RH (no condensation) | |
Power Requirement | ||
External Power Supply | 5V DC@1A | |
Power consumption (Max) | 2.5W | |
Regulatory Approvals | ||
Converter Unit | FCC,CE, | |
Power Supply | CE,FCC | |
Accessories Adapter | ||
AC Power Adapter | US standard, UK standard and so on | |
User Manual | English Version | |
Package contents
Before attempting to use this unit please check the packing and make sure the
following items are contained in the shipping carton:
(1)AV/S-video to HDMI Converter---------------------------------1Pcs
(2)5V DC Power Supply----------------------------------------------1Pcs
(3)User Manual---------------------------------------------------------1Pcs
