1.0 INTRODUCTION

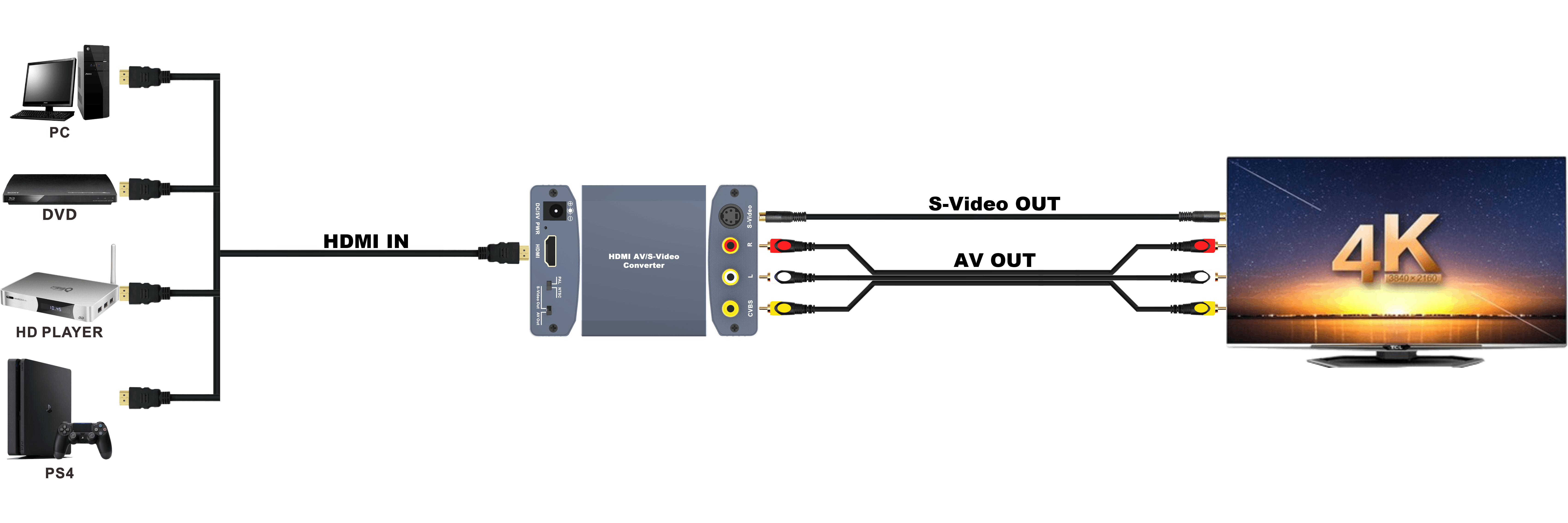

HDMI to CVBS or S-video signal converter which will convert HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and s-video signals. while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,)or s-video signal. So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

2.0 FEATURES

1. Hardware conversion, plug and play without any software driver;

2. Support HDMI1.4b Compatible with HDCP;

3. Support NTSC and PAL two standard TV formats;

4. Input/output connector:

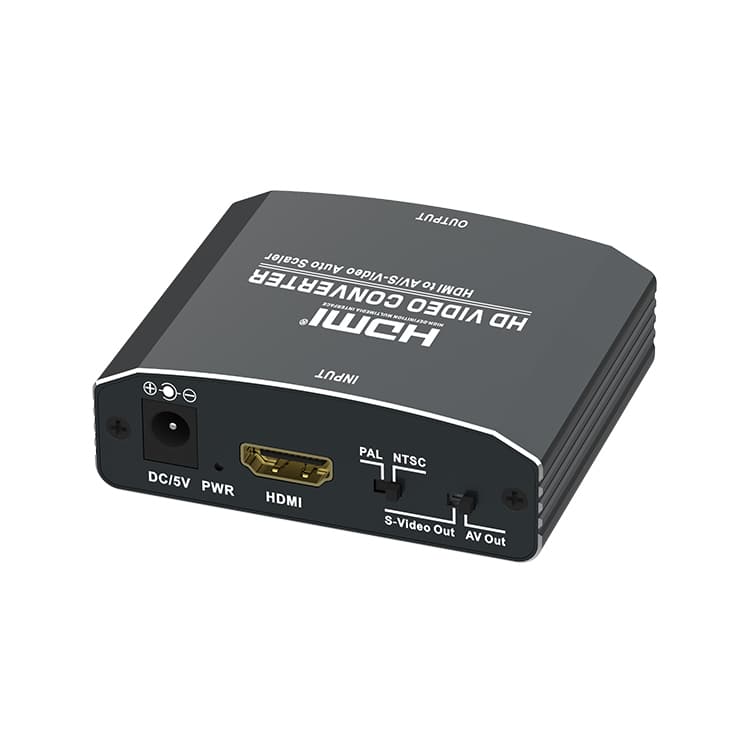

  Input: HDMI x 1

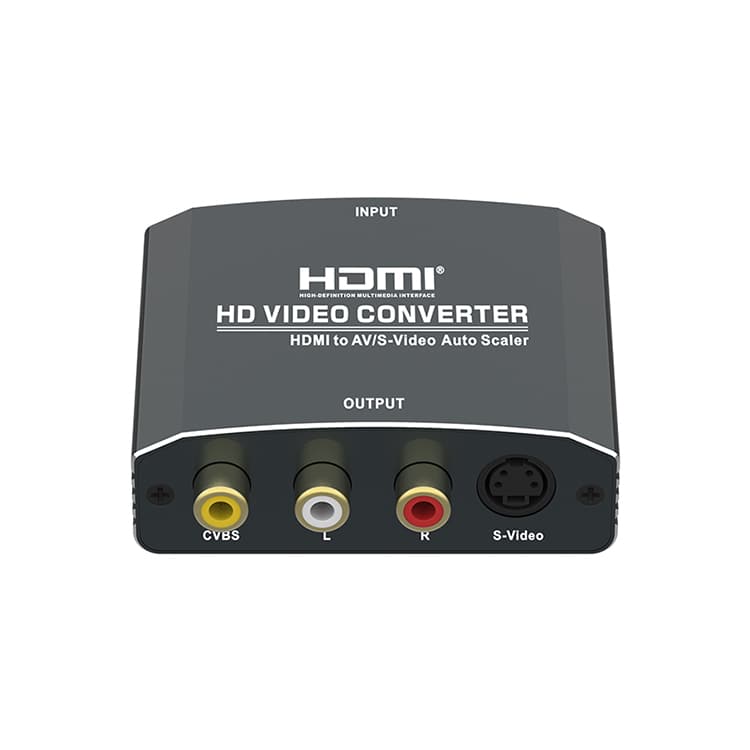

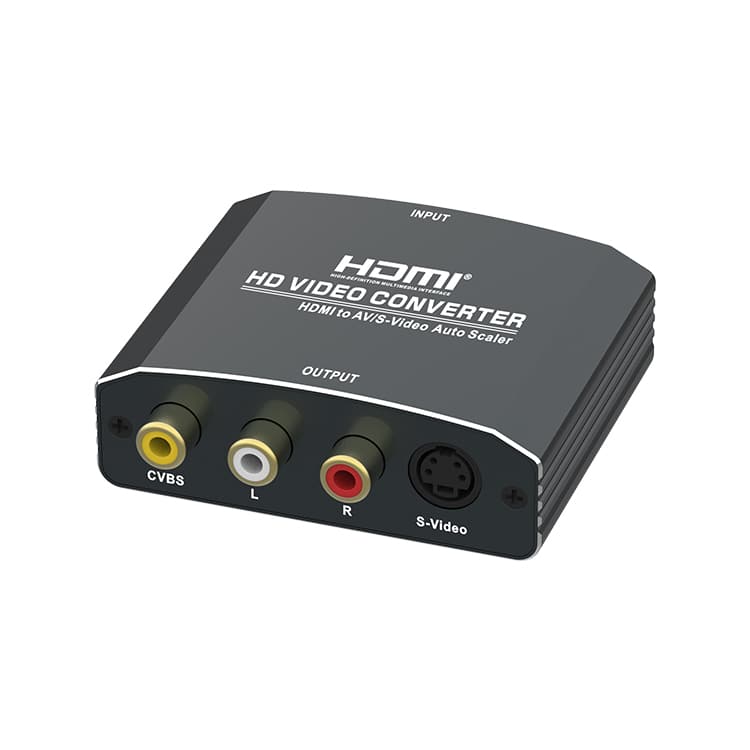

  Outputs: CVBS x 1; L / R x 1 S-video x 1

5. HDMI input: 480i/p,576i/p,720p,1080i/p,1920x1200;

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，

  1920x1080P@60hz

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.S-video OUTPUT: bypass

11.Dimensions(mm):73(L)x60.5(W)x 22.5mm(H)

3.0 PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI to AV/S-Vdieo Converter------------------------1 PCS

2.User manual------------------------------------------------1 PCS

3.Power supply-----------------------------------------------1 PCS

PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI to AV/S-Vdieo Converter------------------------1 PCS

2.User manual------------------------------------------------1 PCS

3.Power supply-----------------------------------------------1 PCS
