1.0 INTRODUCTION

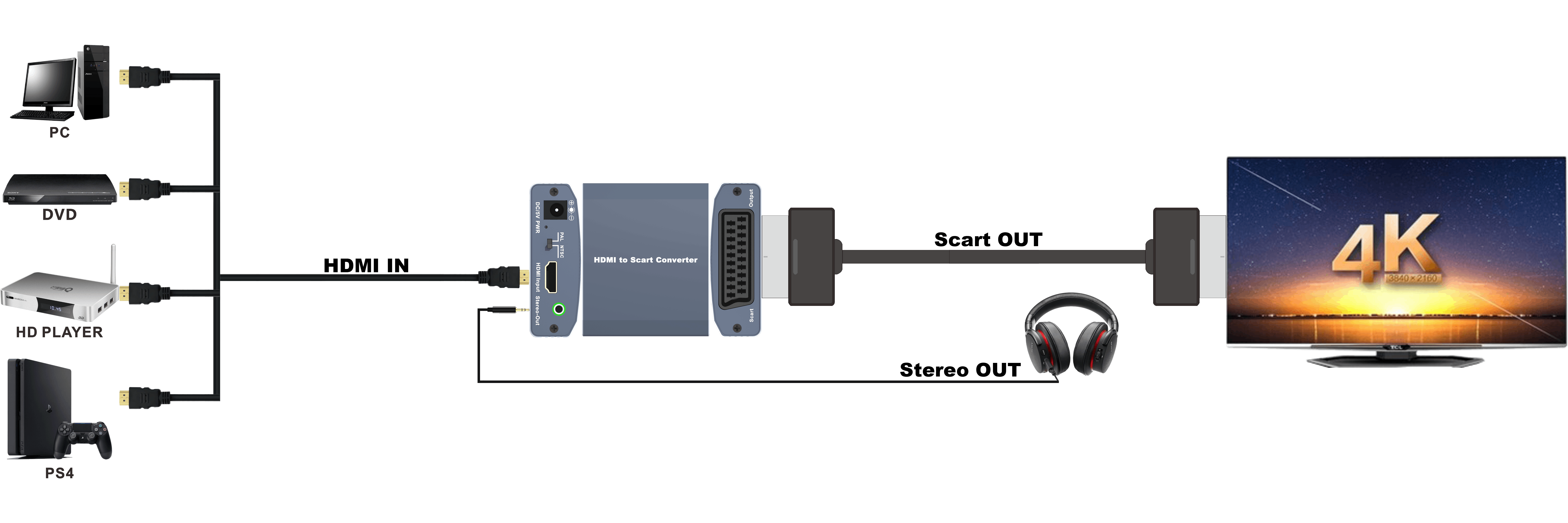

The MHL/HDMI to SCART converter which will convert digital MHL/HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal and smart Phone MHL signal to normal CVBS signal (standard-definition 480i, 576i,).So that can play on CRT TV, VHS VCR, DVD recorders, etc. The MHL/HDMI to SCART converter support NTSC and PAL TV formats output.

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Support HDMI1.4b Compatible with HDCP;

3. Support Input resolution:

   480i/p,576i/p,720p,1080i/p,4Kx2K@30Hz;

4. High quality scaling technology for auto resolutions;

5. Support NTSC and PAL two standard TV formats output.

6. Share your smart phone photos, music and movies on the TV.

3.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the

following items are contained in the shipping carton:

(1)HDMI to Scart Converter----------------------1Pcs

(2)5V DC Power Supply---------------------------1Pcs

(3)User Manual--------------------------------------1Pcs

4.0 SPECIFICATIONS

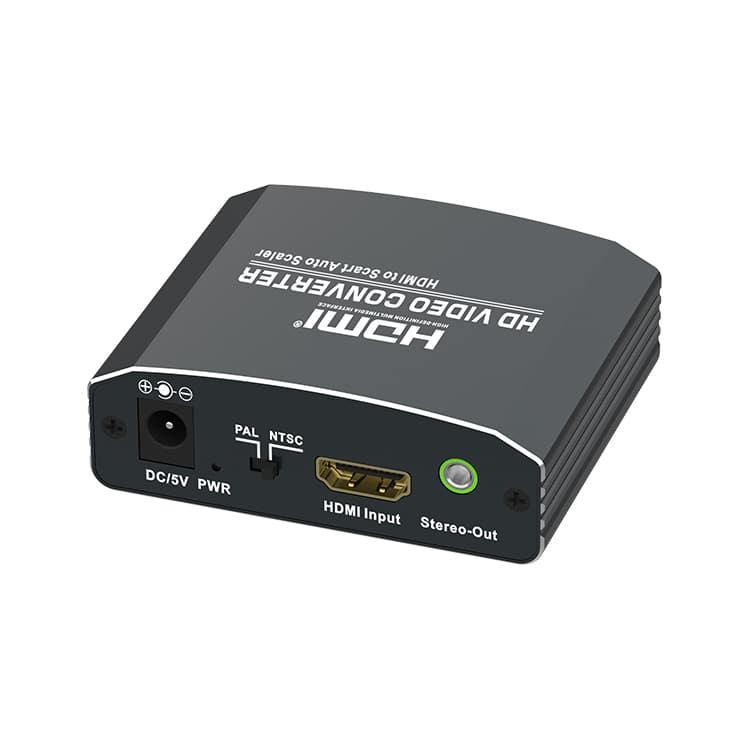

Input port------------------------------------------------------------------------1xHDMI

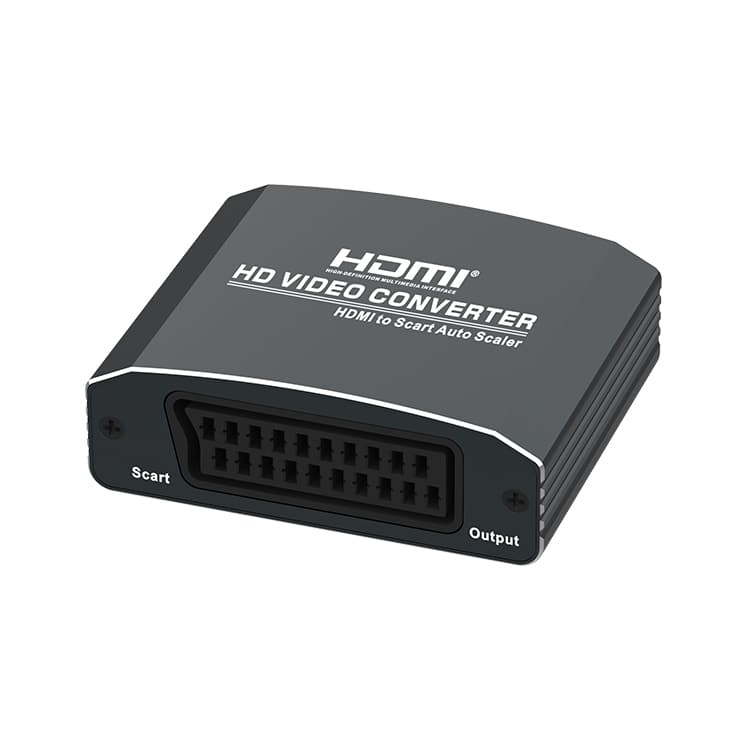

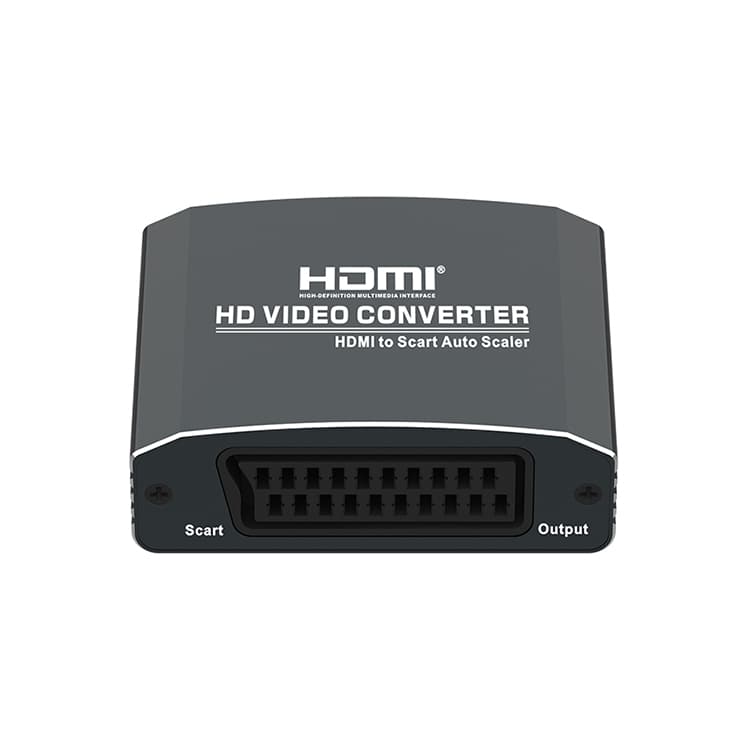

Output port--------------------------------------------1xSCART,1x3.5mm Stereo

Dimensions(mm)--------------------------------------------73(L)x60.5(W)x25(H)

Wight (g)-------------------------------------------------------------------------------90

Input Resolution-----------------------------640x480@60Hz,800x600@60Hz

1024x768@60Hz,1280x720@60Hz

1280x1024@60Hz,1360x768@60Hz

1600x1200@60Hz,1920x1080@60Hz

480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz

720p50/60Hz,1080i50/60Hz,1080p23.97/24/25/50/59.94/60Hz

4Kx2K/30Hz

CVBS output---------------------------------------------------------------PAL,NTSC

Operating Temperature----------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature------------------------------20°C ~ 60°C / -4°F ~ 140°F

elative Humidity----------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)-------------------------------------------------2.5W
