1.0 Introduction

AV/HDMI TO HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect the high definition HDMI input interface, Easy connect the DVD, set-top box, HD player, Game Console (PS2,PS3,PSP,WII,XBOX360 etc).

2.0 Features:

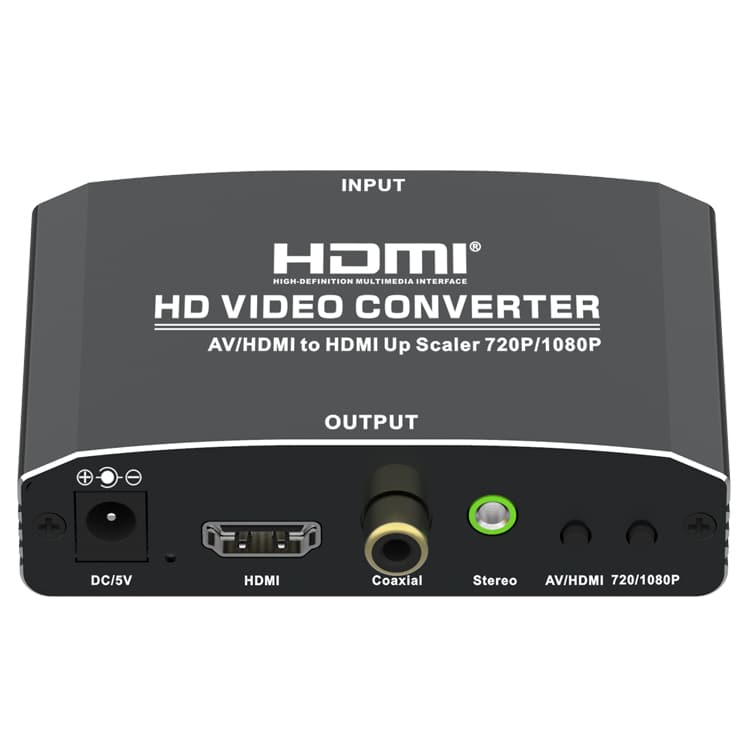

1) HDMI output interface: connect with high definition TV or high definition

   projector:

  HDMI output format:720P@50/60Hz, 1080P@50/60HZ

  Audio output format: Digital coaxial audio, analog stereo audio

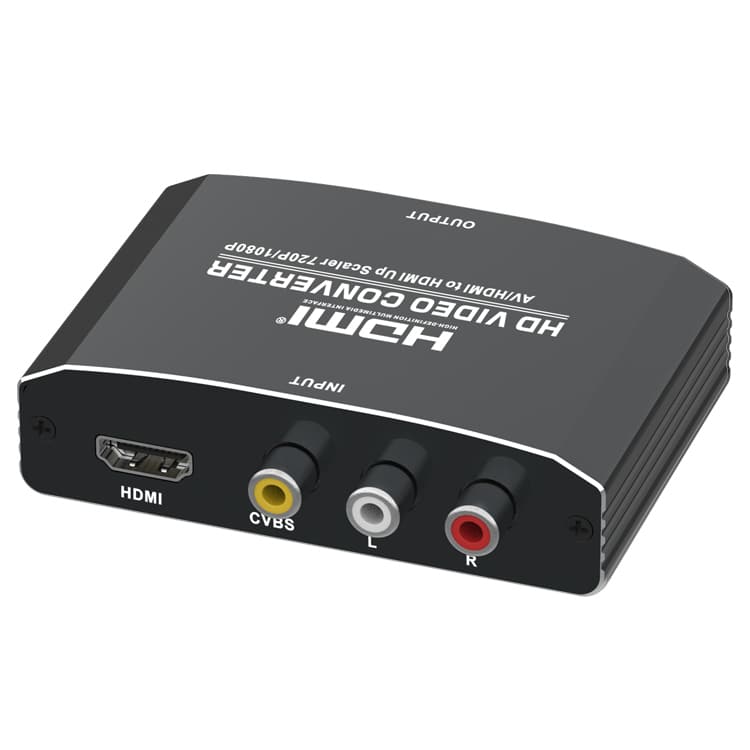

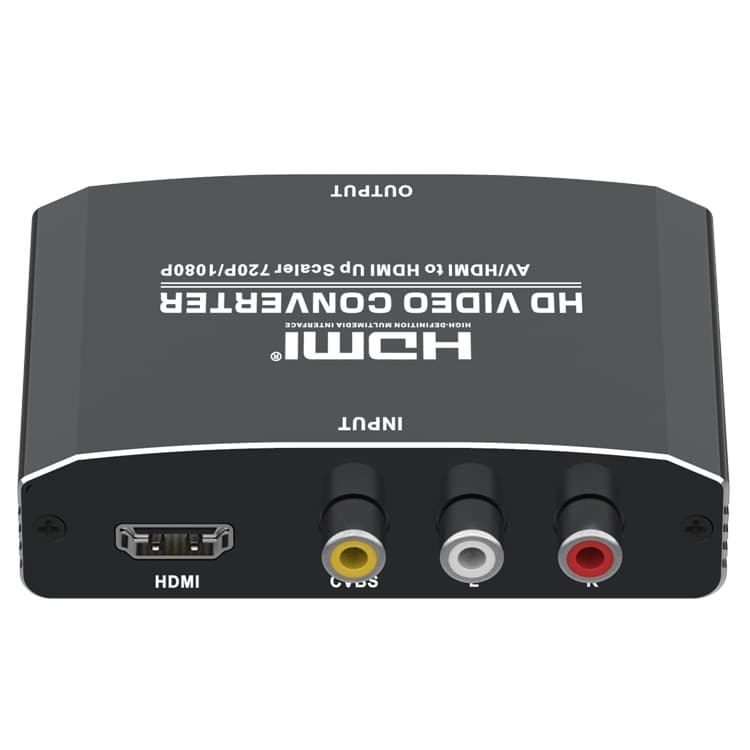

2) CVBS input interface: DVD, set top box, PS2, WII, NGC and other players.

CVBS input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3) HDMI input format:

  480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz

  Compatible with several DVI format: 800X600、1024X768,1280X1024、

  1360X768, 1680X1050、1920X1080 etc.
4) 3.5mm audio interface: Connect with analog audio amplifier or headphones

input interface

5) Digital coaxial output: Connect with digital audio amplifier.

3.0 Package contents

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1、Main unit ----------------------------------- 1PCS

2、5V DC Power Supply---------------------1PCS

3、User's Manual------------------------------1PCS
