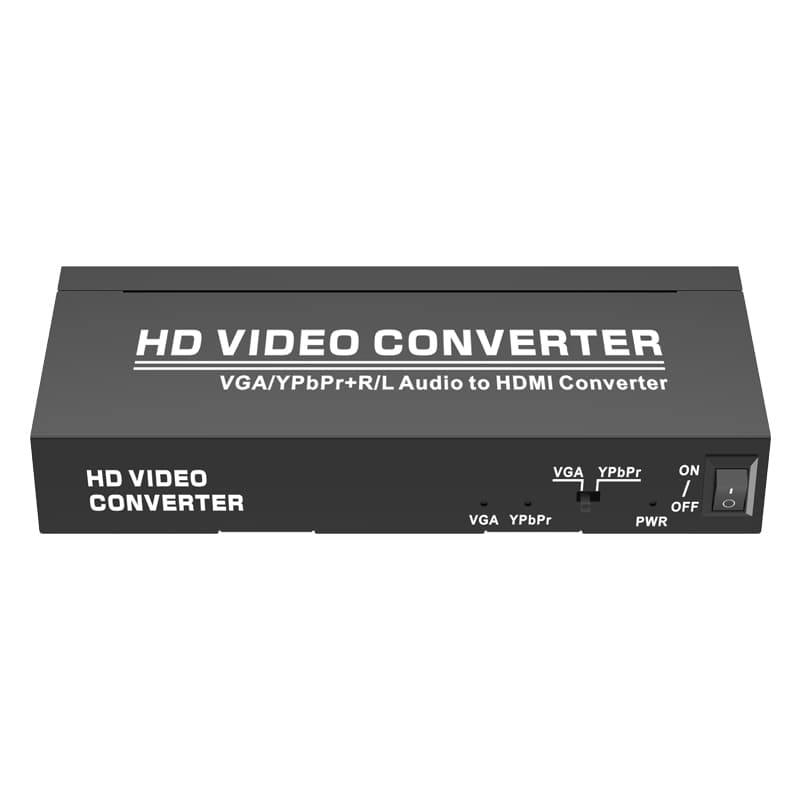

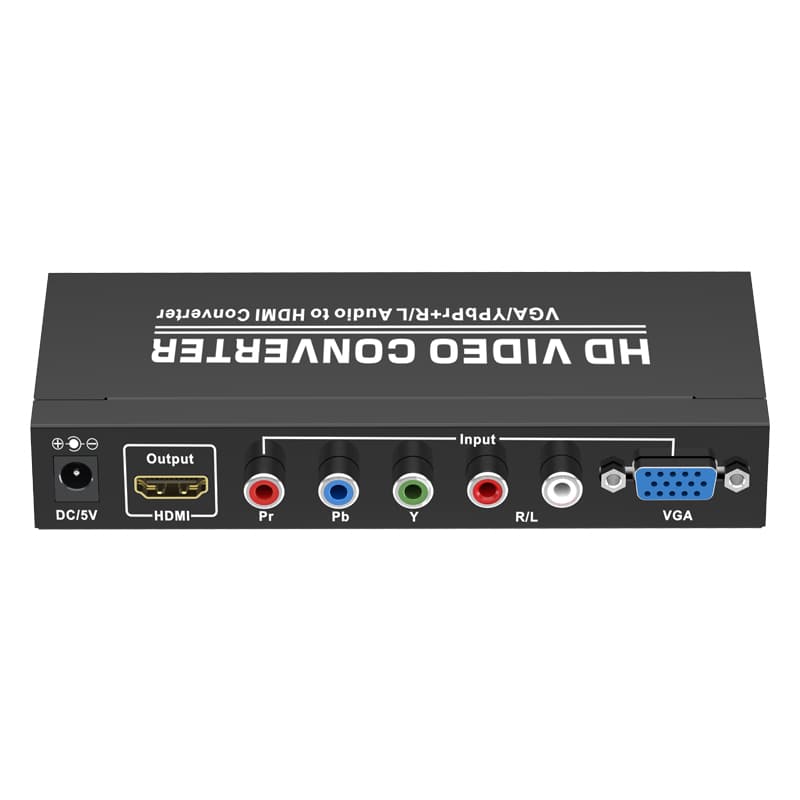

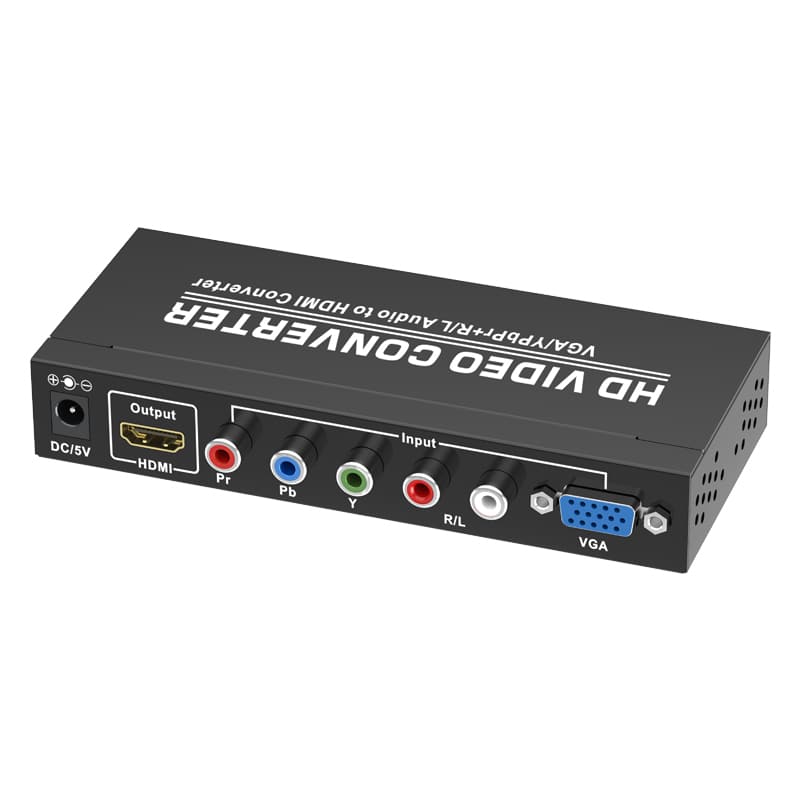

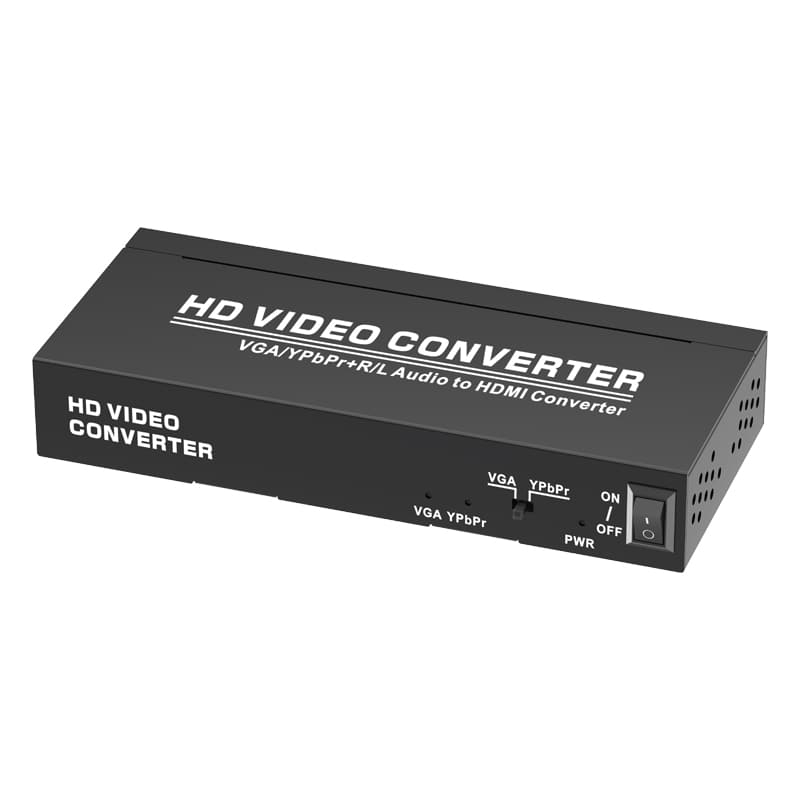

MZ612 VGA +YPbPr +R/L Audio to HDMI Converter

MZ612 VGA + YPbPr + R/L Audio to HDMI Converter is a versatile solution for modernizing your display connections. It adeptly converts VGA, YPbPr (Component Video), and R/L Stereo Audio signals into a single 1080P HDMI output. This allows you to connect a wide range of analog devices—from older PCs and DVD players to retro gaming consoles—to contemporary HDMI TVs, monitors, or projectors, simplifying complex AV setups.

Description Package Information Inquiry

1.0 INTRODUCTION

This kind of the Converter is a VGA and Ypbpr video converter. It converts VGA or ypbpr input into HDMI to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the R/L audio. Converter offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 FEATURES

The series of the HDMI Amplifier Converter have many features that enable them to perform in a superior manner. among those features you will find:

1.Conversion: It could convert PC’s VGA video or YPbPr Signal and R/L

audio into complete HDMI.

2.Extend the transmission distance and improve transmission signal.

3.Compatible with DVI by using HDMI to DVI adapter.

4.Metal casing design and overall shielding without signal interference.

5.Led indicates signal and power mode.

6.Power supply (please refer to technical parameter).

3.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1) Main unit ----------------------------------- 1PCS

2) Remote control ----------------------------1PCS

3) IR Extension Cable -----------------------1PCS

4) 5V DC Power Supply----------------------1PCS

5) User's Manual-------------------------------1PCS

4.0 SPECIFICATIONS

Signal Inputs/Output
Input Video Signal	VGA、YPbPr
Input Audio Signal	R/L
Maximum Single Link Range	1600X1200, 1080P
Output Video	HDMI + HDCP1.0/1.1
VGA\YPbPr	640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz
DTV/HDTV	480i/576i/480p/576p/720p/1080i/1080P
Operating Frequency
Frequency	Up to165MHz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(LxWxH)	150x64x25mm
Weight(Net)	0.68Kg
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10 to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	DC 5V 1A
Regulatory Approvals
Converter Unit	CE,FCC,ROHS
Power Supply	CE,FCC,PSE,TK,UL
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1) Main unit ----------------------------------- 1PCS

2) Remote control ----------------------------1PCS

3) IR Extension Cable -----------------------1PCS

4) 5V DC Power Supply----------------------1PCS

5) User's Manual-------------------------------1PCS
