1.0 INTRODUCTION

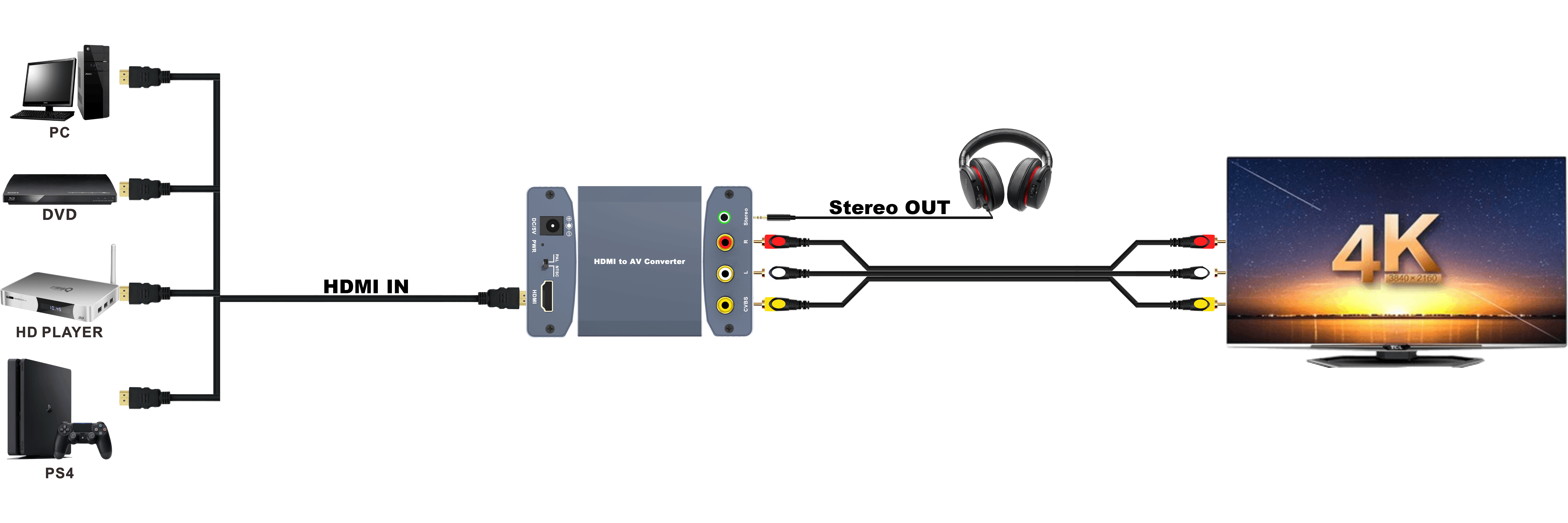

HDMI to CVBS signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

2.0 FEATURES

1. Hardware conversion, plug and play without any software driver;

2. Support the HDCP protocol, support for HDMI 1.4b;

3. Support NTSC and PAL two standard TV formats;

4. One HDMI input, one AV output:

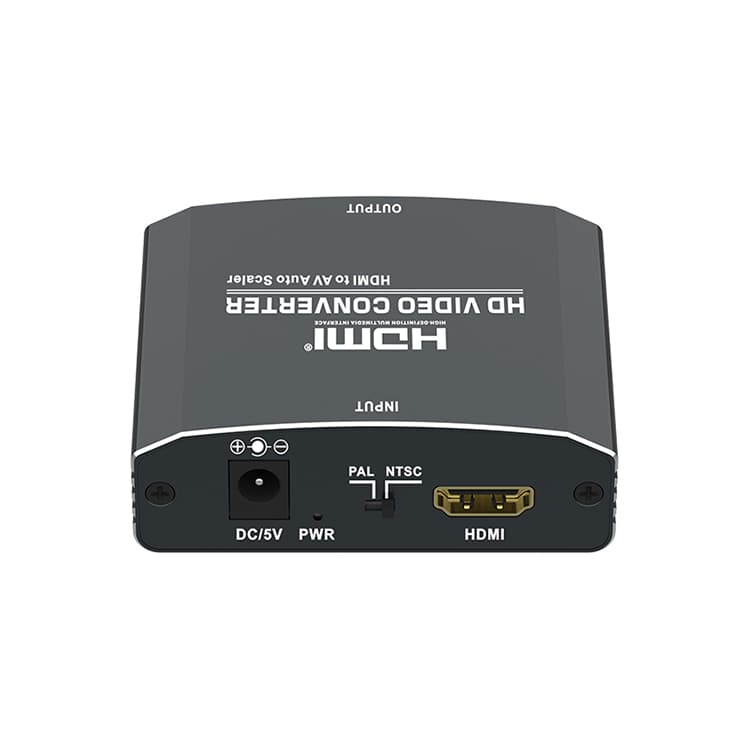

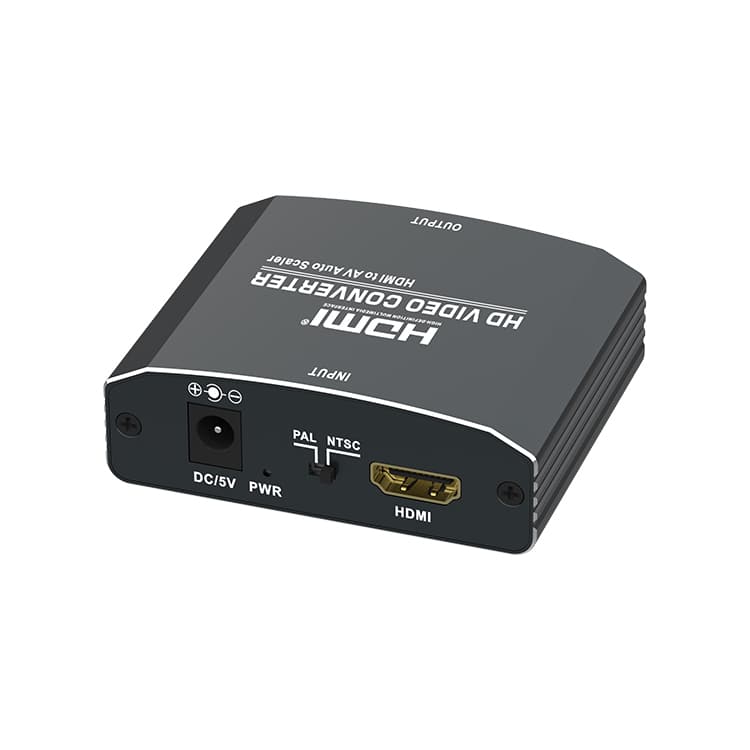

   Inputs: HDMI x 1

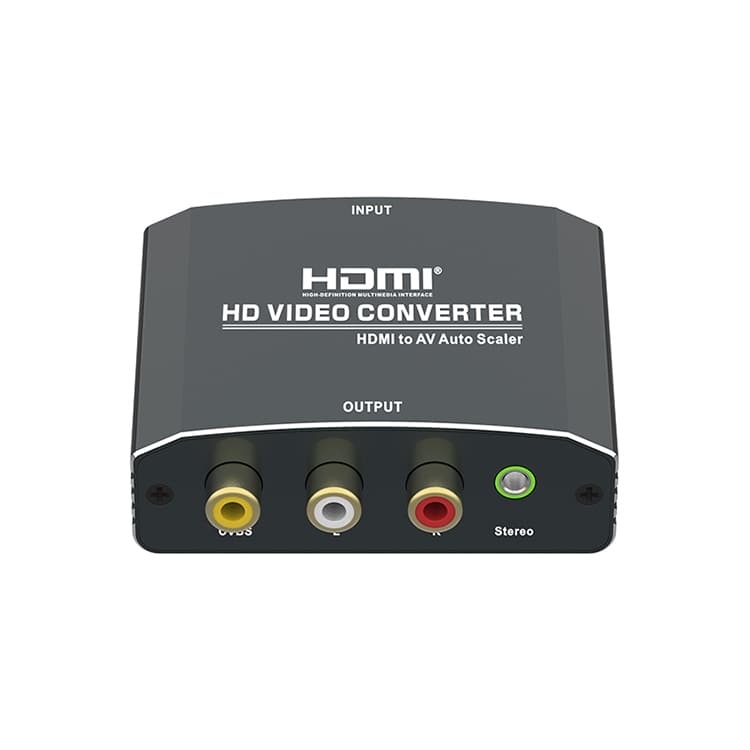

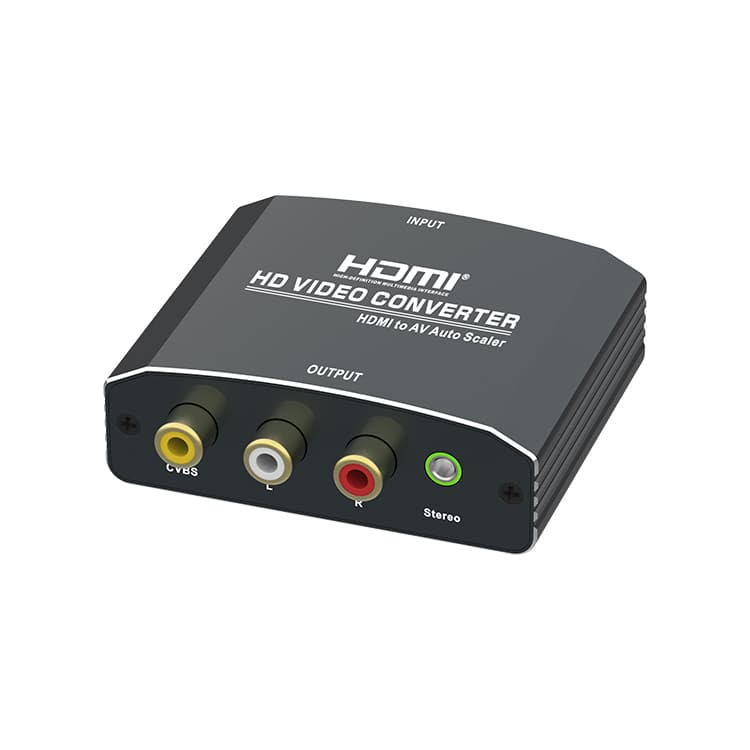

   Outputs: CVBS x1; L / R x1;3.5mm Stereo x1

5. HDMI input: 480i/p, 576i/p, 720p, 1080i/p,1920x1200;

6. Compatible with DVI mode 800x600,1024x768,1280x720,1280x1024

1920x1080/@60hz

7. CVBS output: 480I, 576I

8. Audio output: L/R channels;3.5mm earphone;

9. Dimensions：73mm(W)x60.5mm(D)x 22.5mm(H)

3.0 PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI to AV Converter----------------------------1 Pcs

2.User manual----------------------------------------1 Pcs

3.Power supply---------------------------------------1 Pcs
