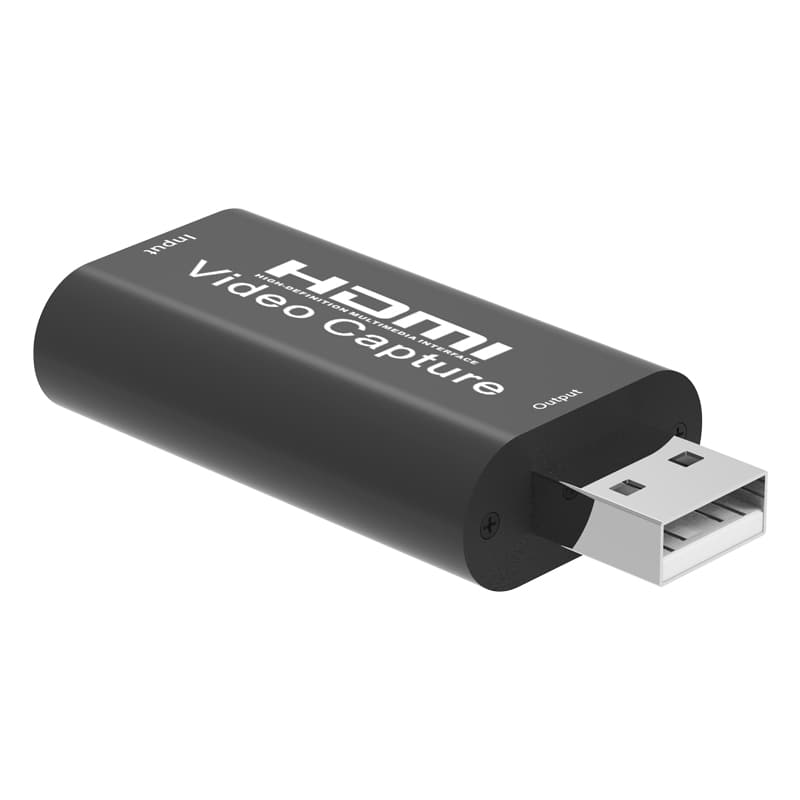

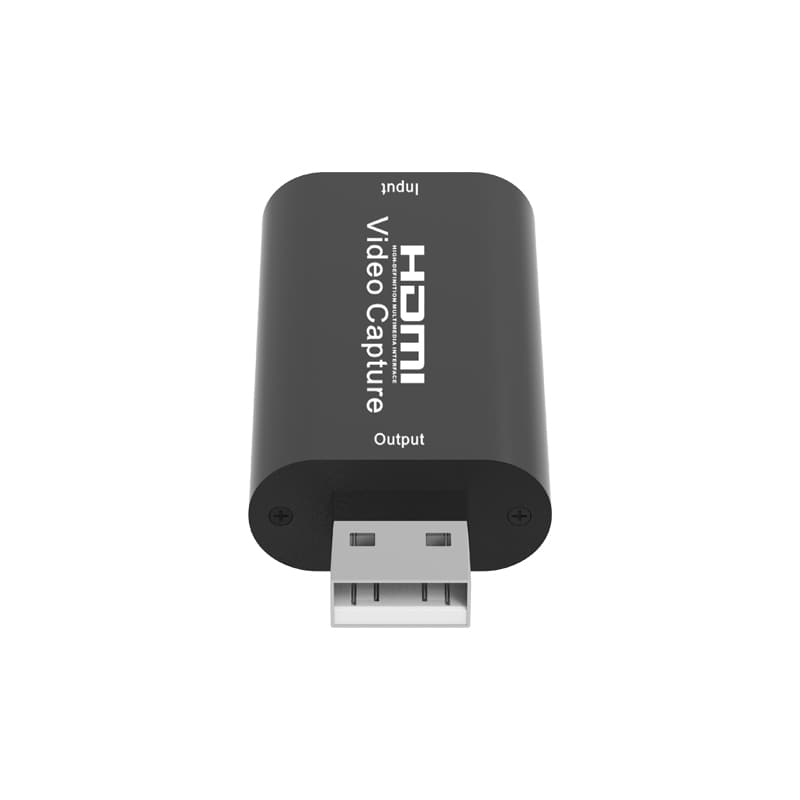

MZ401 4K HDMI to USB2.0 Capture Card

MZ401 4K HDMI to USB2.0 Capture Card lets you record and stream high-definition content effortlessly. Convert any 4K HDMI source to a USB 2.0 digital stream for your PC or smartphone. Perfect for live broadcasts, online tutorials, or saving gameplay and media, offering plug-and-play simplicity.
Description Package Information Inquiry

Product Description:

The video capture device can capture both HDMI video and HDMI audio, sending the audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, live streaming, etc.

Features:

  • Support input max resolution 4K;

  • Support output max resolution 1080P;

  • Support 8/10/12-bit deep color;

  • Support AWG26 HDMI standard cable: input up to 15 meters (at 1080P and below resolution);

  • Support most acquisition software, such as VLC, OBS, AmCap, etc.;

  • Support Windows, Android, and MacOS;

  • Conform to USB Video (UVC) standard;

  • Conform to USB Audio (UAC) standard;

  • Without external power supply, compact and portable.

Specifications:

  • HDMI Resolution ……………………………… Max input can be 4K

  • Support video format ……………………………………… 8/10/12-bit Deep Color

  • Video output format ……………………………………… YUV, JPEG

  • Video output resolution ………………………………… Max output can be 1080P

  • Support audio format ……………………………………… LPCM

  • Input cable distance ……………………………………… 15m, AWG26 HDMI standard cable

  • Max working current ……………………………………… 0.4A DC 5V

  • Operating Temperature range ………………………………… -10 to +55℃

  • Dimension (LxWxH) ……………………………………… 54×28x13 (mm)

  • Weight ……………………………………………………… 21.4g
