MZTC0160Z, 10 in 1USB-C hub with bracket docking station to 1x 4K HDMI+ 1xVGA +1x USB-C PD 100W+ 1x 1000Mbps lan+ 1 xSD/TF+3xUSB3.0+ 1x 3.5mm audio ,Private Model

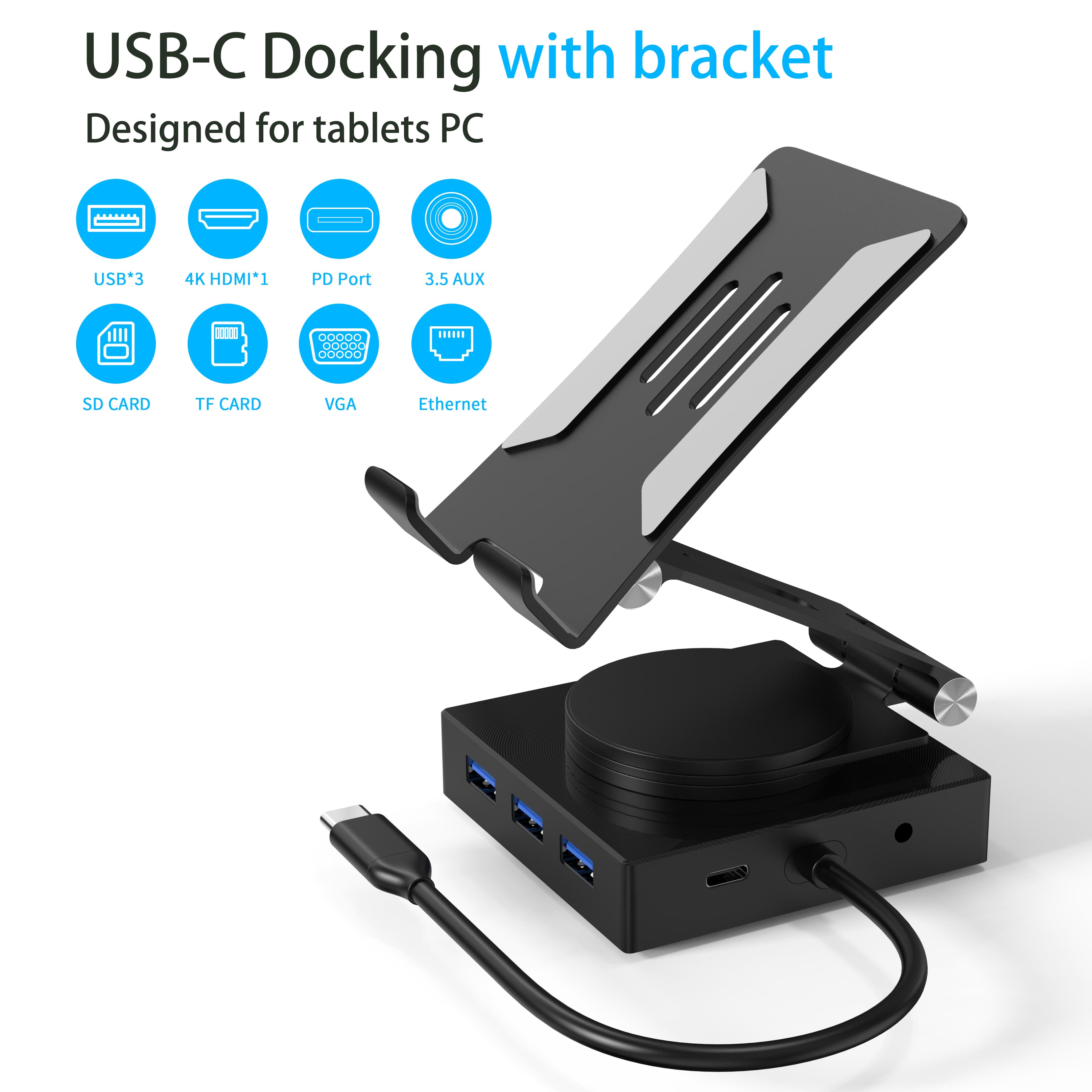

MZTC0160Z is a private model 10-in-1 USB-C docking station with an integrated bracket. It offers a comprehensive set of ports including 4K HDMI, VGA, Gigabit Ethernet, 100W PD, SD/TF readers, three USB 3.0 ports, and a 3.5mm audio jack, providing a complete and organized workstation solution.
Description Package Information Inquiry

1, HDMI supports 1080p@60Hz, 4K@30Hz, can be displayed simultaneously(SST)

2, VGA supports 1080p, HDMI & VGA can display at the same time

3, USB-C PD charging (Max100W) data transfer 2.0 (support USB-C digital headphones)

4, Gigabit LAN (1000MB/S)

5, SD (480/s)tf(480MB/s)2.0 card reader

6, 3 x USB 3.0 data transfer (5Gb/s)

7, 3.5mm audio playback
