1.0 Introduction:

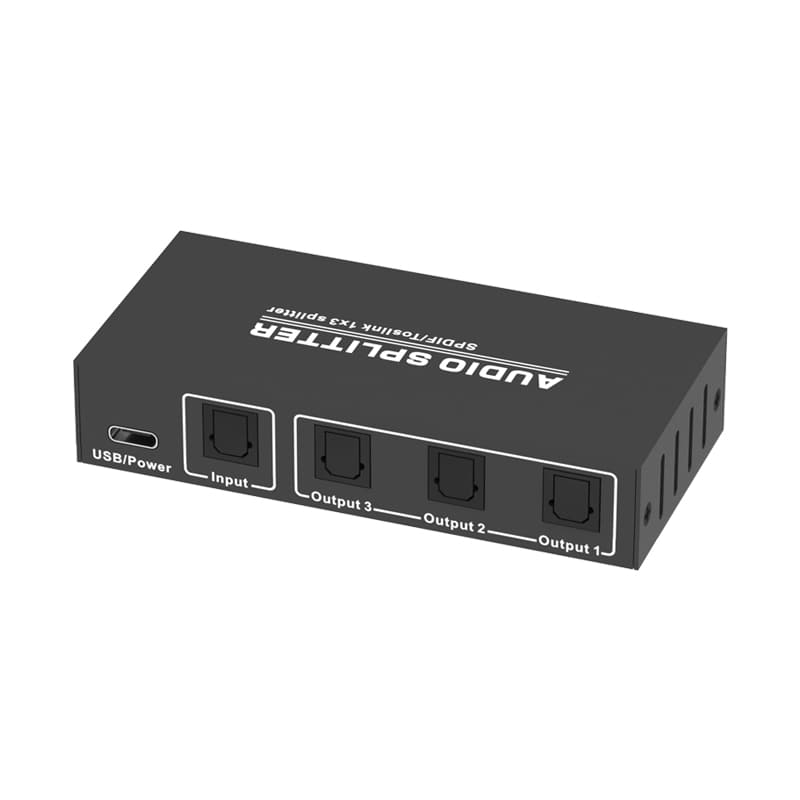

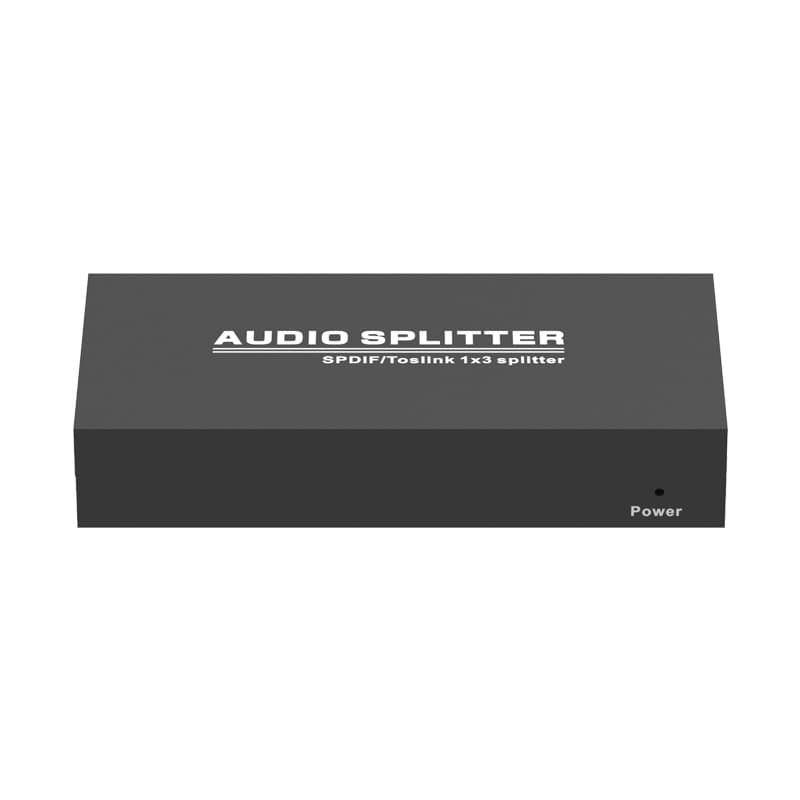

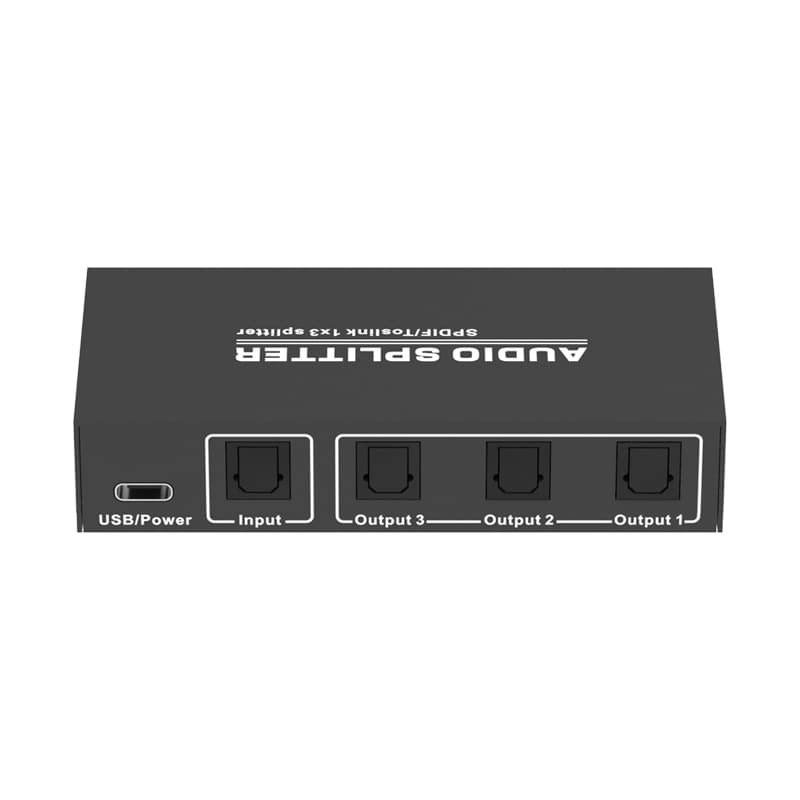

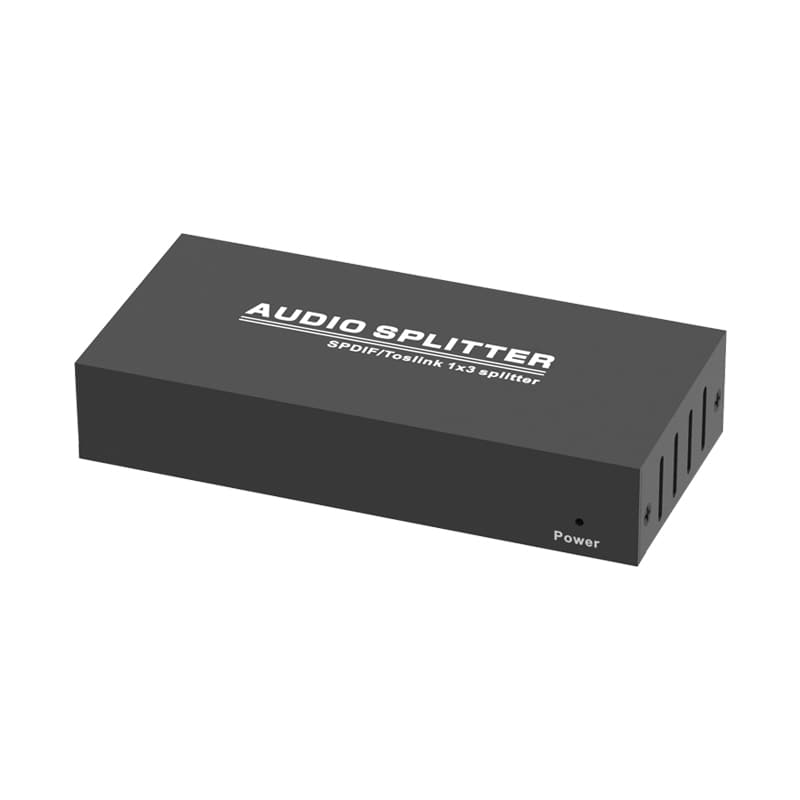

This SPDIF/Toslink Digital Optical Audio splitter can let the user to connect and distribute one digital optical SPDIF Toslink source to three amplifier.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 Features:

1.One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink

signal receiving device.

2.Audio format support : LPCM2.0/DTS/Dolby-AC3.

3.Support signal retiming.

4.Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.

5.The input control can through R/M and also can directly press the button

Support last time working state memory when power off.

6.Over-voltage protection can prevent the damage caused by connecting

unmatched power adapter to the machine.

7.Installs in minutes，No loss of quality.

3.0 Packaging accessories:

1. Audio Splitter------------------------------------------------1 PCS

2. USB Power Cable------------------------------------------1 PCS

3. User Manual-------------------------------------------------1 PCS

4.0 Technical parameters:

Support audio format--------------------------------------LPCM2.0/DTS/Dolby-AC3

Peak wavelength---------------------------------------------------------------------650nm

Max baud rate------------------------------------------------------------------------16Mbps

Output cable distance ---------≤40m(optical fiber cable loss less the 0.2Db/m)

Max working current-----------------------------------------------------------------100mA

Power adapter format------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V

Operating Temperature range-----------------------------------------------(0 to +40℃)

Operating Humidity range--------------------------5 to 90%RH (No Condensation)

Dimension (L x W x H)------------------------------------------------100x48x21.5 (mm)

Weight----------------------------------------------------------------------------------------50g

 Packaging accessories:

1. Audio Splitter------------------------------------------------1 PCS

2. USB Power Cable------------------------------------------1 PCS

3. User Manual-------------------------------------------------1 PCS
