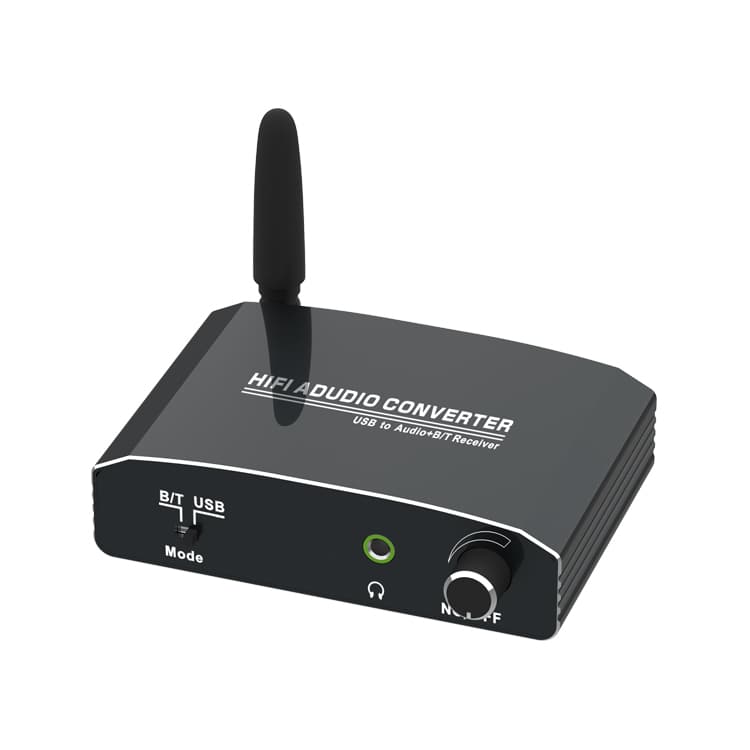

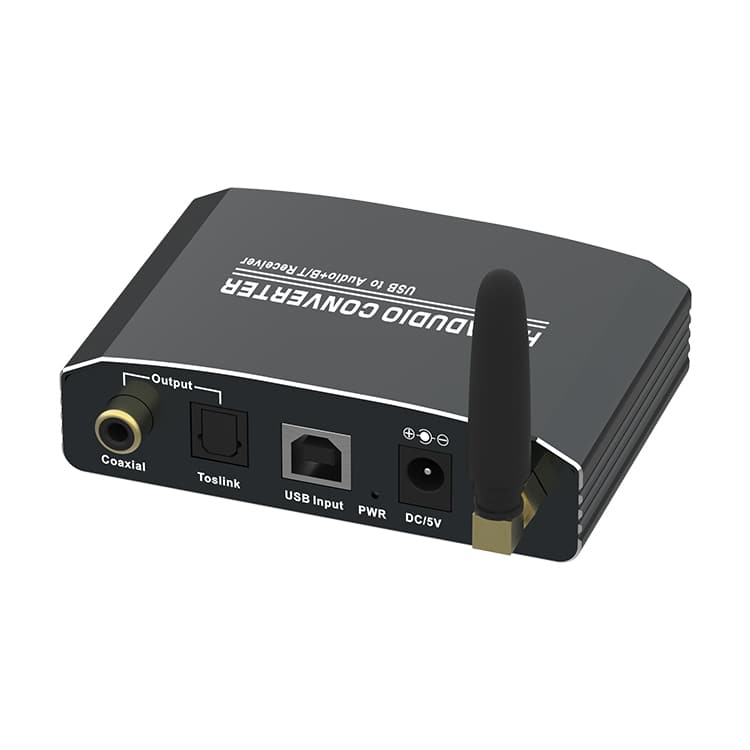

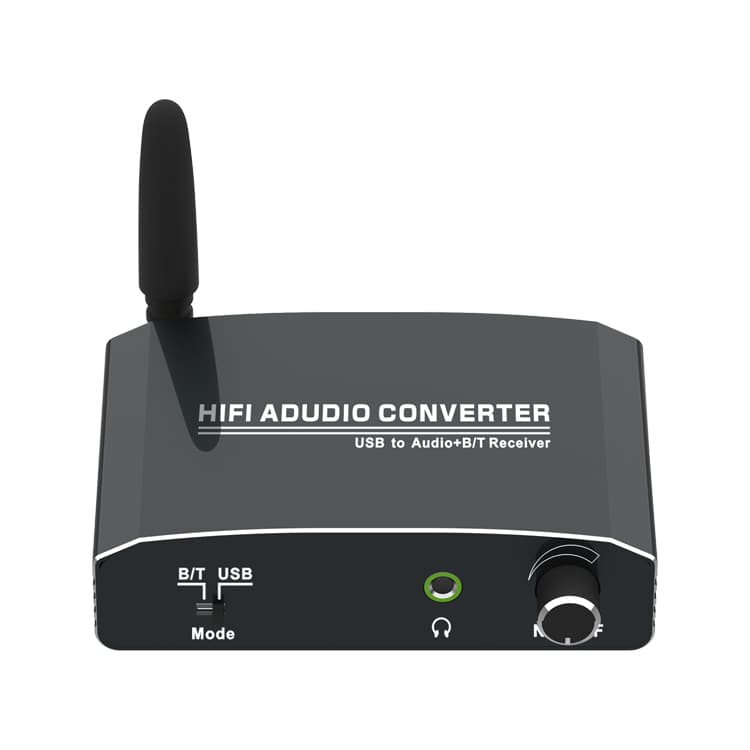

MZ800 USB to Audio+Bluetooth 5.0 Receiver

MZ800 USB to Audio + Bluetooth 5.0 Receiver is a compact device that instantly upgrades your existing audio systems with wireless capabilities. Simply plug it into any USB port to enjoy high-quality audio streaming from your smartphone, tablet, or PC to headphones, speakers, or car audio systems. With Bluetooth 5.0, it offers a stable and clear connection, making it perfect for home entertainment, office setups, or enhancing your in-car audio experience.

Description Package Information Inquiry

1.0 INTRODUCTION

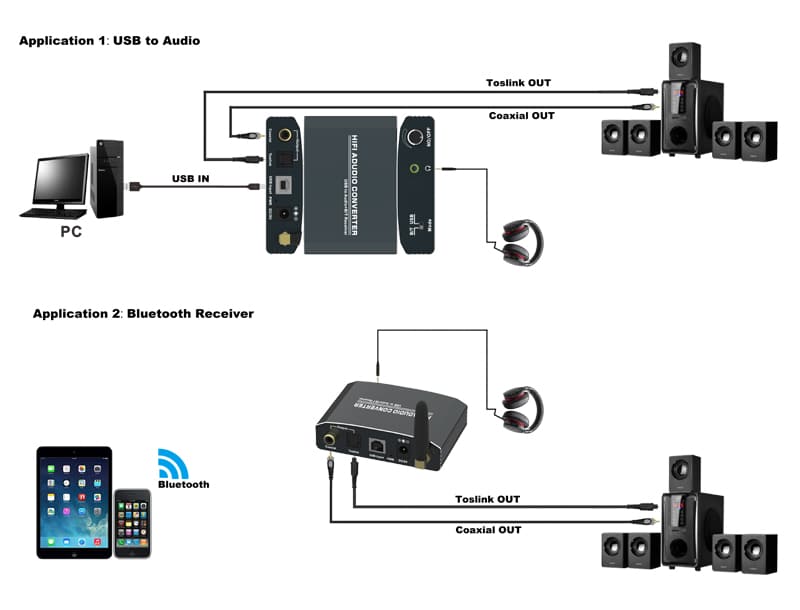

This audio converter is designed for either home or professional audio switching.It converts USB to digital or analog audio and support receiving audio signalsiva bluetooth.It is available for connection to an external device such as an amplifiervia standard SPDIF or coaxial(RCA)style jacks and 3.5mm stereo jack.This converter is small in size and quite easy to install.

2.0 FEATURES

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1) Converts USB signals to audio(digital+analog).

2) Supports sampling rate at 32, 44.1, 48 and 192KHz.

3) 24-bit SPDIF out bit stream on left and right channels.

4) Support Bluetooth Receiver.

5) Support volume amplification and adjustment.

6) Provides electromagnetic-noise-free transmission.

7) Easy to install and simple to operate.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Audio converter--------------------------------------------1 PCS

2) 5V DC power supply--------------------------------------1 PCS

3) USB data cable--------------------------------------------1 PCS

4) User’s Manual----------------------------------------------1 PCS

4.0 SPECIFICATIONS

Signal Inputs/Output
Input Audio	USB or Bluetooth
Bluetooth Standard	5.0
Output Audio	Digital/Analog
Connector
Input audio connector	USB BF style
Output audio connector	SPDIFx1,Coaxial(RCA),3.5mm stereo jack
Sampling rate	32,44.1, 48,96 and 192KHz
Mechanical
Size(LxWxH)	88x60x23mm
Weight (Net)	110g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90% RH (no condensation)
Power Requirement
External Power Supply	DC 5V 1A
Power Consumption	0.5 watts (max)
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

Note: Specifications are subject to change without notice.


PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Audio converter--------------------------------------------1 PCS

2) 5V DC power supply--------------------------------------1 PCS

3) USB data cable--------------------------------------------1 PCS

4) User’s Manual----------------------------------------------1 PCS
