MZ609D Digital to Analog +3.5mm Stereo Audio Converter

MZ609D Digital Coaxial Toslink to Analog + 3.5mm Stereo Audio Converter provides a seamless bridge between your modern digital audio sources and classic analog sound systems. It expertly converts digital coaxial or optical (Toslink) audio signals into both 2xRCA L/R and 3.5mm stereo outputs. This versatile device ensures clear, high-fidelity sound when connecting HDTVs, Blu-ray players, gaming consoles, or media streamers to older receivers, amplifiers, soundbars, or headphones. It's a key component for home entertainment, professional audio setups, and integrating legacy equipment.

Description Package Information Inquiry

1.0 INTRODUCTION

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,This Converter is small in size and quite easy to install.

2.0 FEATURES

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1) Converts Coaxial or Toslink digital audio signals to analog audio.

2) Support 4 digital audio input select.

3) Supports sampling rate at 32, 44.1, 48 and 192KHz.

4) 24-bit SPDIF incoming bit stream on left and right channels.

5) Support volume amplification and adjustment.

6) Provides electromagnetic-noise-free transmission.

7) Easy to install and simple to operate.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Digital to Analog Audio Converter---------------------1 PCS

2) 5V DC Power Supply-------------------------------------1 PCS

3) User’s Manual----------------------------------------------1 PCS

4.0 SPECIFICATIONS

Signal Inputs/Output
Input Audio	Coaxial or Toslink digital audio
Output Audio	R/L +3.5mm audio
Connector

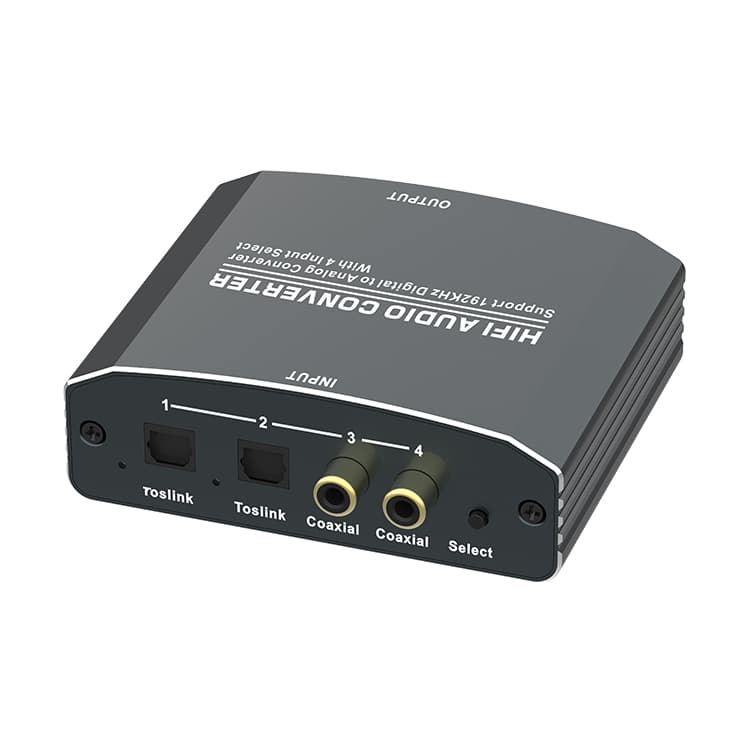

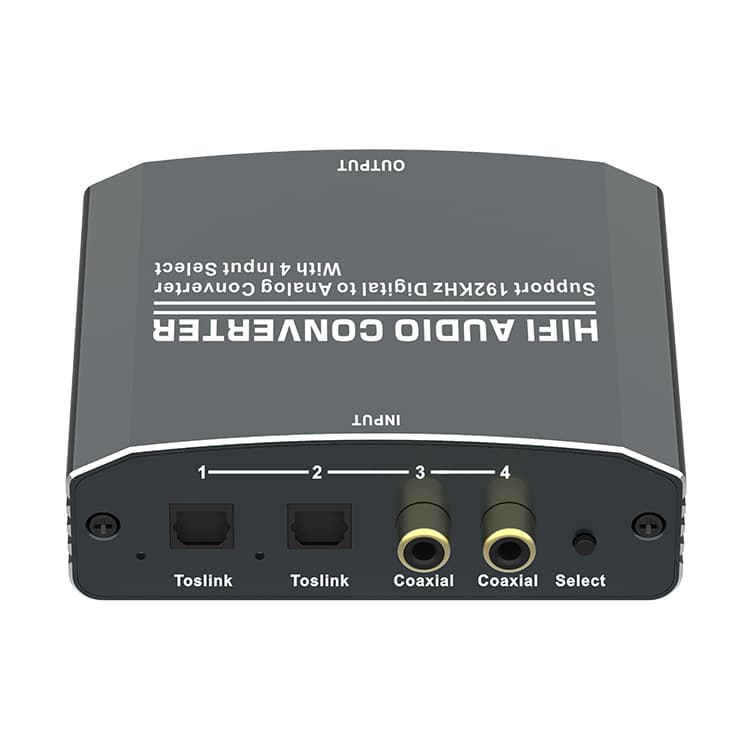

Input audio connector	2XToslink、2XRCA(Coaxial)

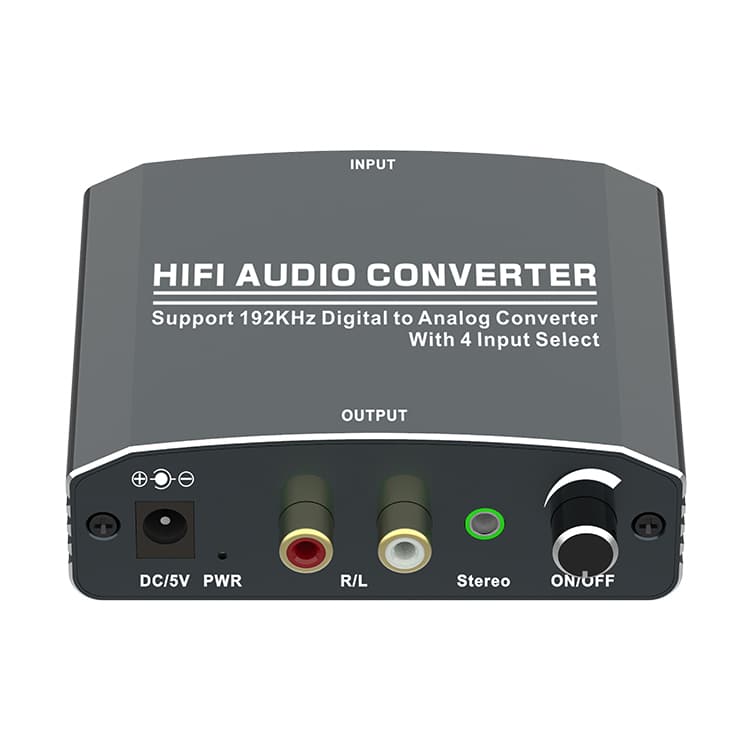

Output audio connector	2XRCA（R/L）3.5mm stereo jack
Sampling rate	32,44.1, 48,96 and 192KHz
Mechanical
Size(LxWxH)	90.4x60.8x22.8mm
Weight (Net)	110g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90% RH (no condensation)
Power Requirement
External Power Supply	DC 5V 1A
Power Consumption	0.5 watts (max)
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

Note: Specifications are subject to change without notice.
