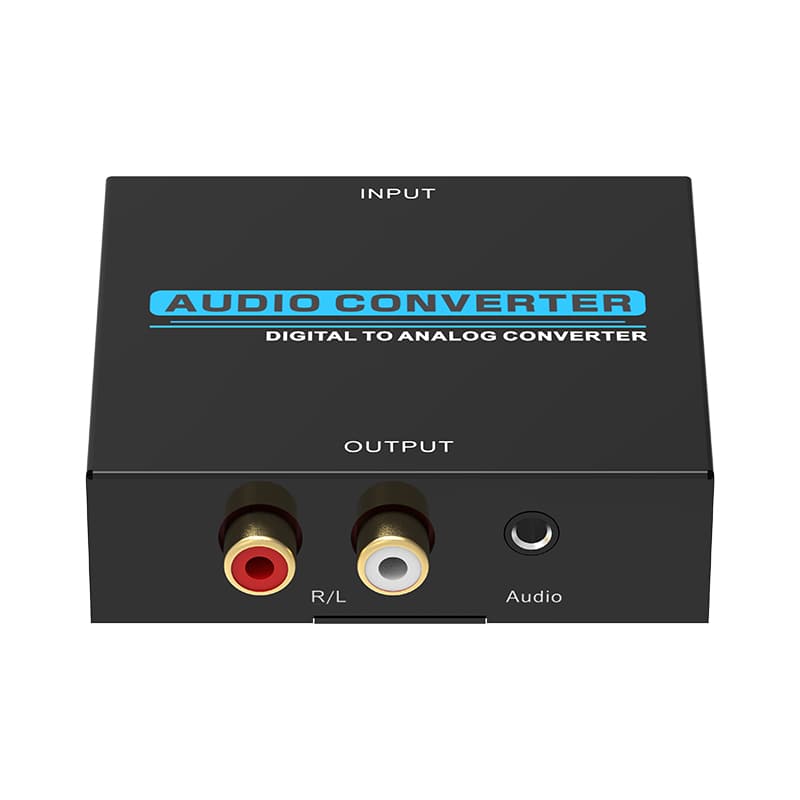

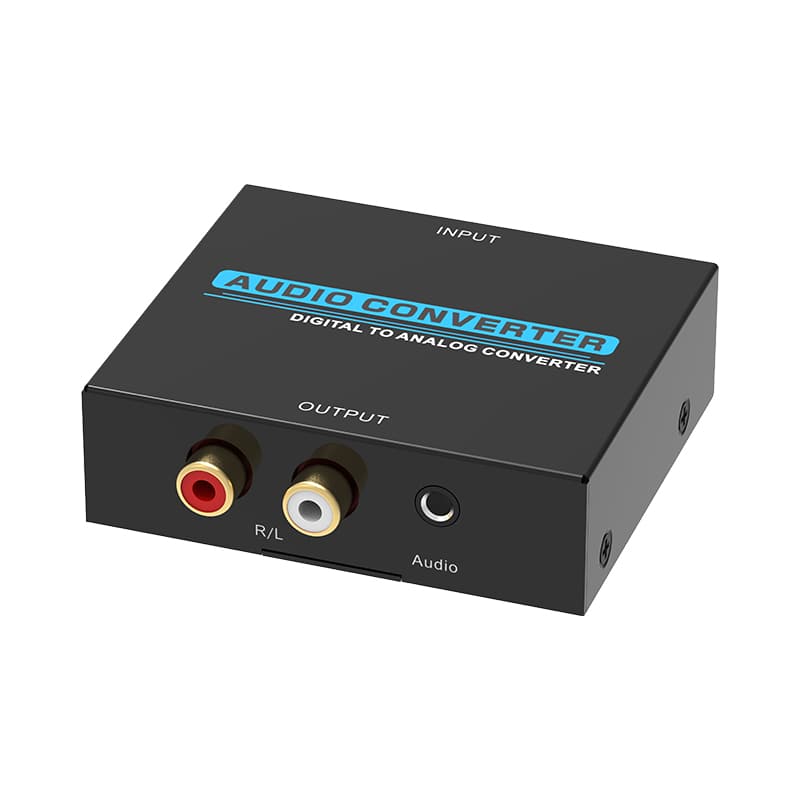

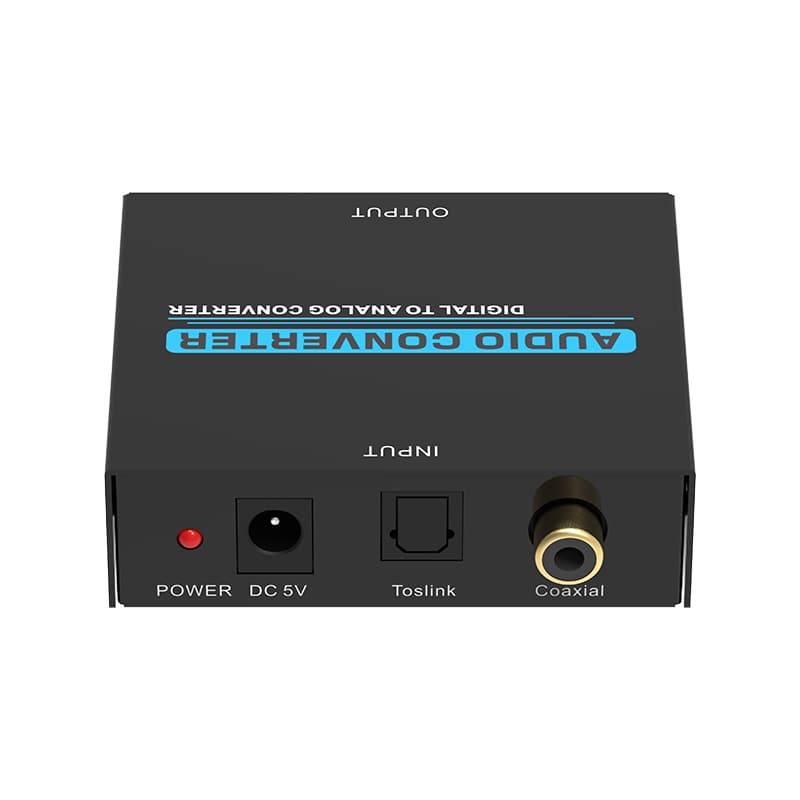

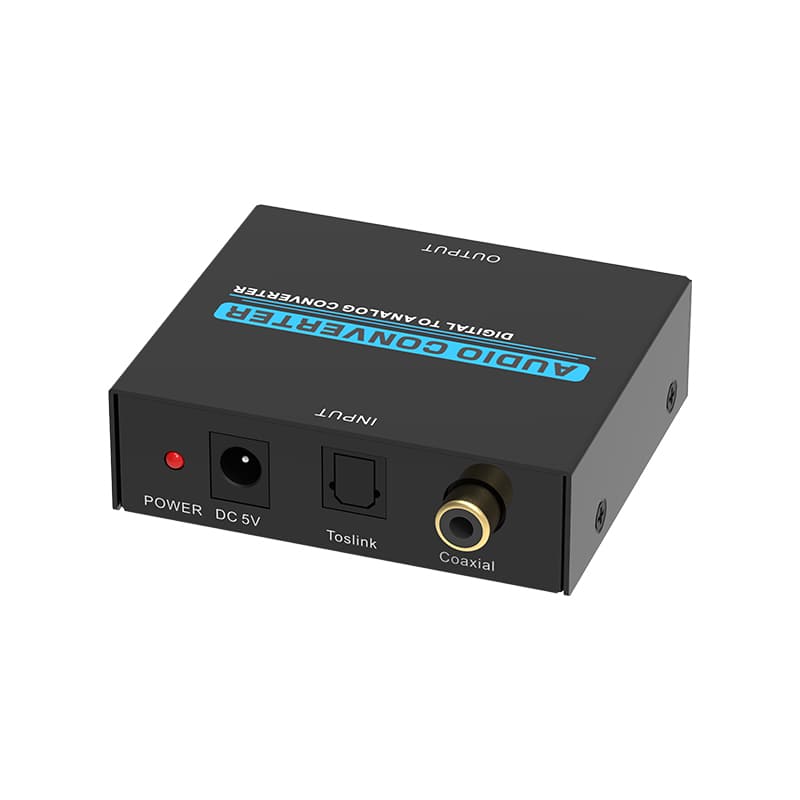

MZ609A Toslink Coaxial to 2xRCA R/L+3.5mm Stereo Audio Converter

MZ609A Toslink Coaxial to 2xRCA R/L + 3.5mm Stereo Audio Converter expertly transforms digital optical (Toslink) and coaxial audio signals into high-quality analog stereo sound. It's an indispensable tool for connecting modern digital audio sources like HDTVs, gaming consoles, or Blu-ray players to older analog receivers, amplifiers, or headphones, ensuring your legacy audio equipment continues to deliver rich, clear sound for home entertainment, gaming, or specialized audio setups.

Description Package Information Inquiry

1.0 Introduction

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,This Converter is small in size and quite easy to install.

2.0 Features

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1) Converts Coaxial or Toslink digital audio signals to analog L/R audio

2) Supports sampling rate at 32, 44.1, 48 and 192 KHz.

3) 24-bit S/PDIF incoming bit stream on left and right channels

4) Provides electromagnetic-noise-free transmission.

5) Easy to install and simple to operate.

3.0 Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Digital to Analog Audio Converter---------------------1 PCS

2) 5V DC Power Supply-------------------------------------1 PCS

3) User’s Manual----------------------------------------------1 PCS

4.0 Specifications

Signal Inputs/Output
Input Audio	Coaxial or Toslink digital audio
Output Audio	R/L +3.5mm audio
Connector
Input audio connector	Toslink、1XRCA(Coaxial)
Output audio connector	2XRCA（R/L）
Sampling rate	32, 44.1, 48 and 96 KHz
Mechanical
Size(LxWxH)	70x60x20mm
Weight (Net)	78g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90% RH (no condensation)
Power Requirement
External Power Supply	DC 5V 1A
Power Consumption	0.5 watts (max)
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

Note: Specifications are subject to change without notice.

Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Digital to Analog Audio Converter---------------------1 PCS

2) 5V DC Power Supply-------------------------------------1 PCS

3) User’s Manual----------------------------------------------1 PCS
