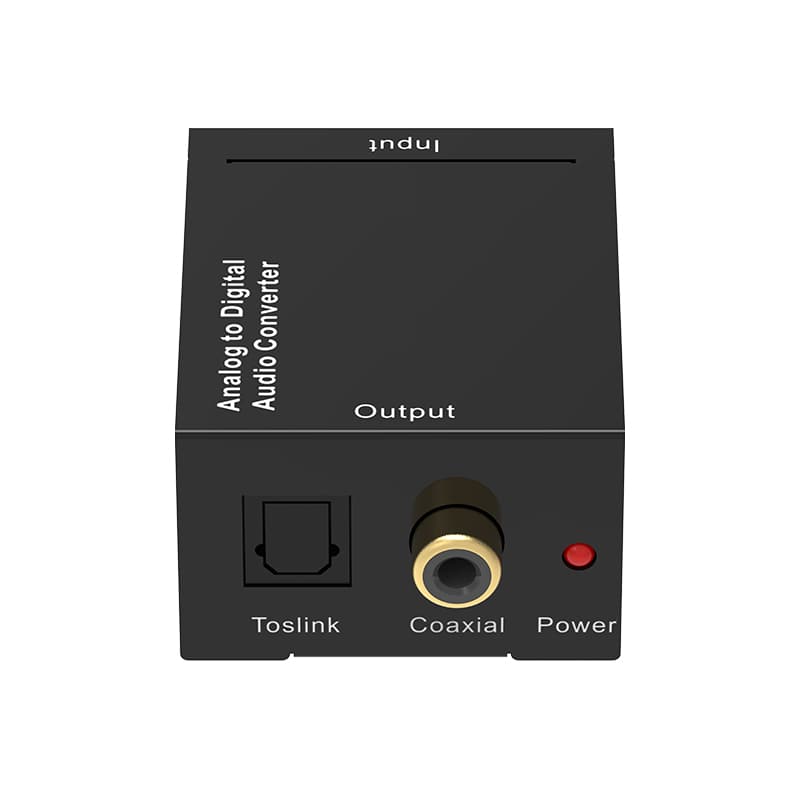

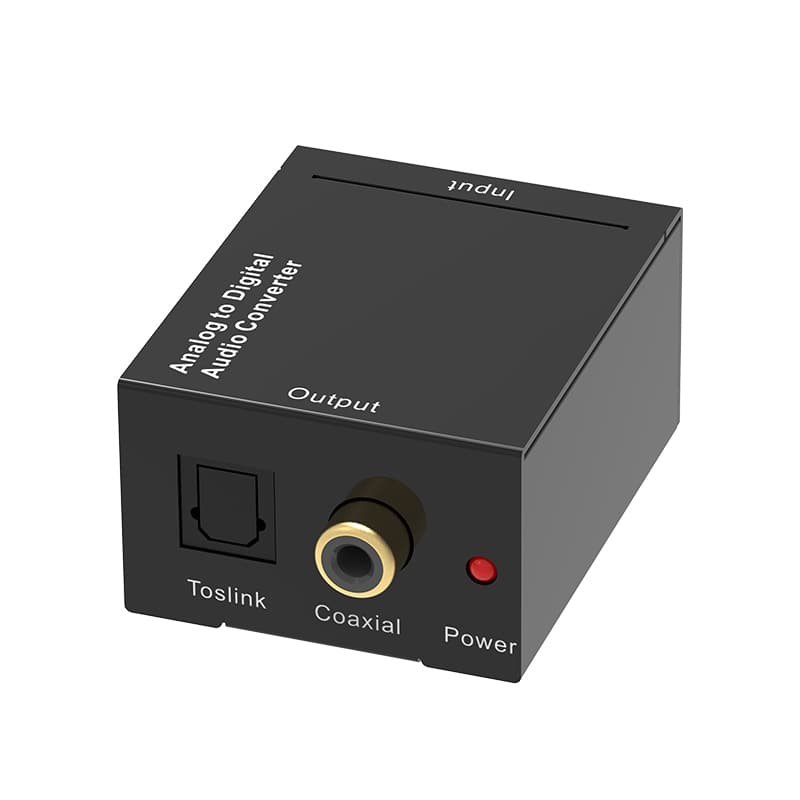

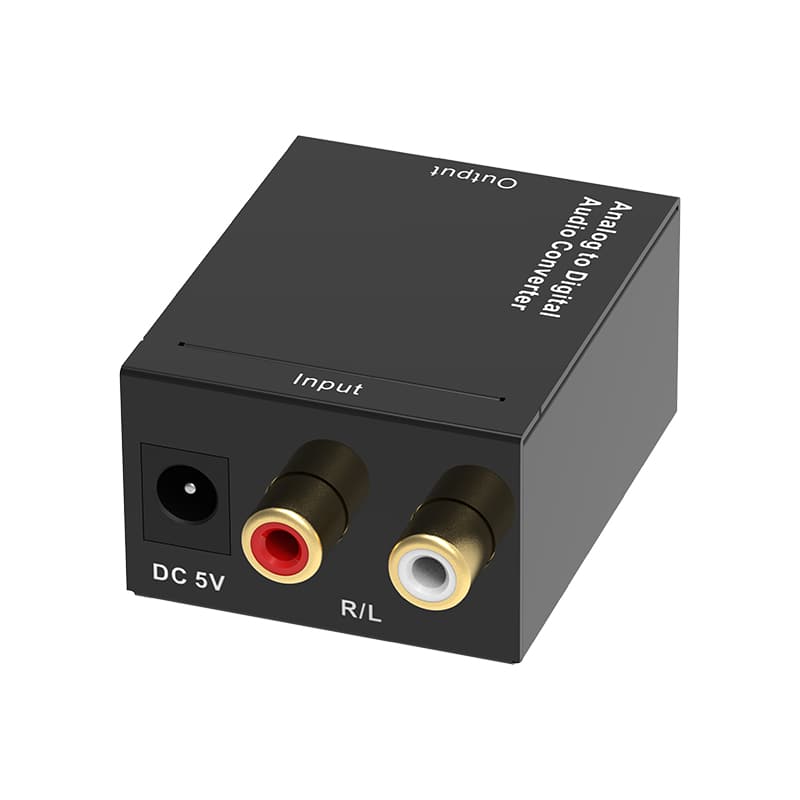

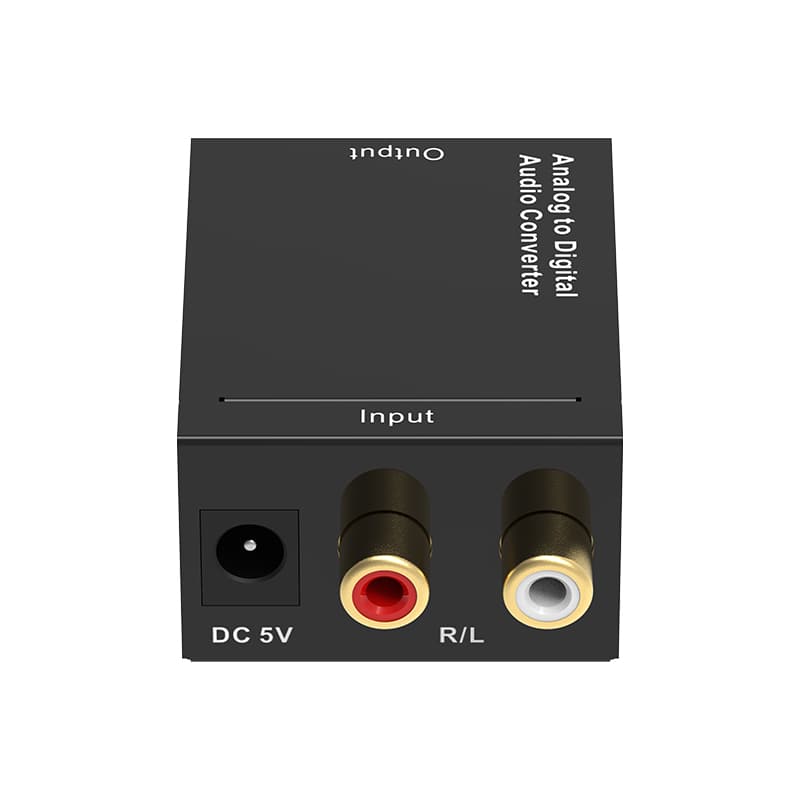

MZ608 Analog R/L to Digital Toslink Coaxial audio converter

MZ608 is your go-to solution when bridging analog R/L audio to today’s digital infrastructure. Whether in studio broadcasting, AV integration, or console-based gaming setups, it delivers clean, interference-free digital audio via optical or coaxial output. The compact design and universal compatibility make it a favorite in installation projects and professional engineering workflows. Plus, it’s a lifesaver when your legacy devices need to talk to modern sound systems!

Description Package Information Inquiry

1.0 INTRODUCTION

This Analog to Digital Audio Converter is designed for either home or professional audio switching. It converts analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This Converter is small in size and quite easy to install.

2.0 FEATURES

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1. Supports uncompressed 2-channel LPCM digital audio signal output.

2. Supports output sampling rate at 48KHz.

3. Provides electromagnetic-noise-free transmission.

4. Easy to install and simple to operate.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Analog to Digital Audio Converter-------------------1 PCS

2) 5V DC Power Supply-----------------------------------1 PCS

3) User’s Manual--------------------------------------------1 PCS

4.0 SPECIFICATIONS

Signal Inputs/Output
Input Audio	Stereo R/L
Output Audio	LPCM
Connector
Input audio connector	2XRCA（R/L）
Output audio connector	Toslink、1XRCA(Coaxial)
Audio Connector	Toslink Audio and Digital Audio
Operating Frequency
Sampling rate	48KHz
Mechanical
Size(L-W-H)	50X40X35MM
Weight (Net)	78g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@1A
Power Consumption	0.5 watts (max)
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Analog to Digital Audio Converter-------------------1 PCS

2) 5V DC Power Supply-----------------------------------1 PCS

3) User’s Manual--------------------------------------------1 PCS
